CHAPTER 6 - MAINTAINING THE LIBRARY
• Top Level Assembly BOM Level
Send To Service
To send a robot to service, click Send to Service under the desired robot and use the following
steps to navigate the Send to Service screen.
Note:
To complete this task, you must be present at the TFinity Plus library.

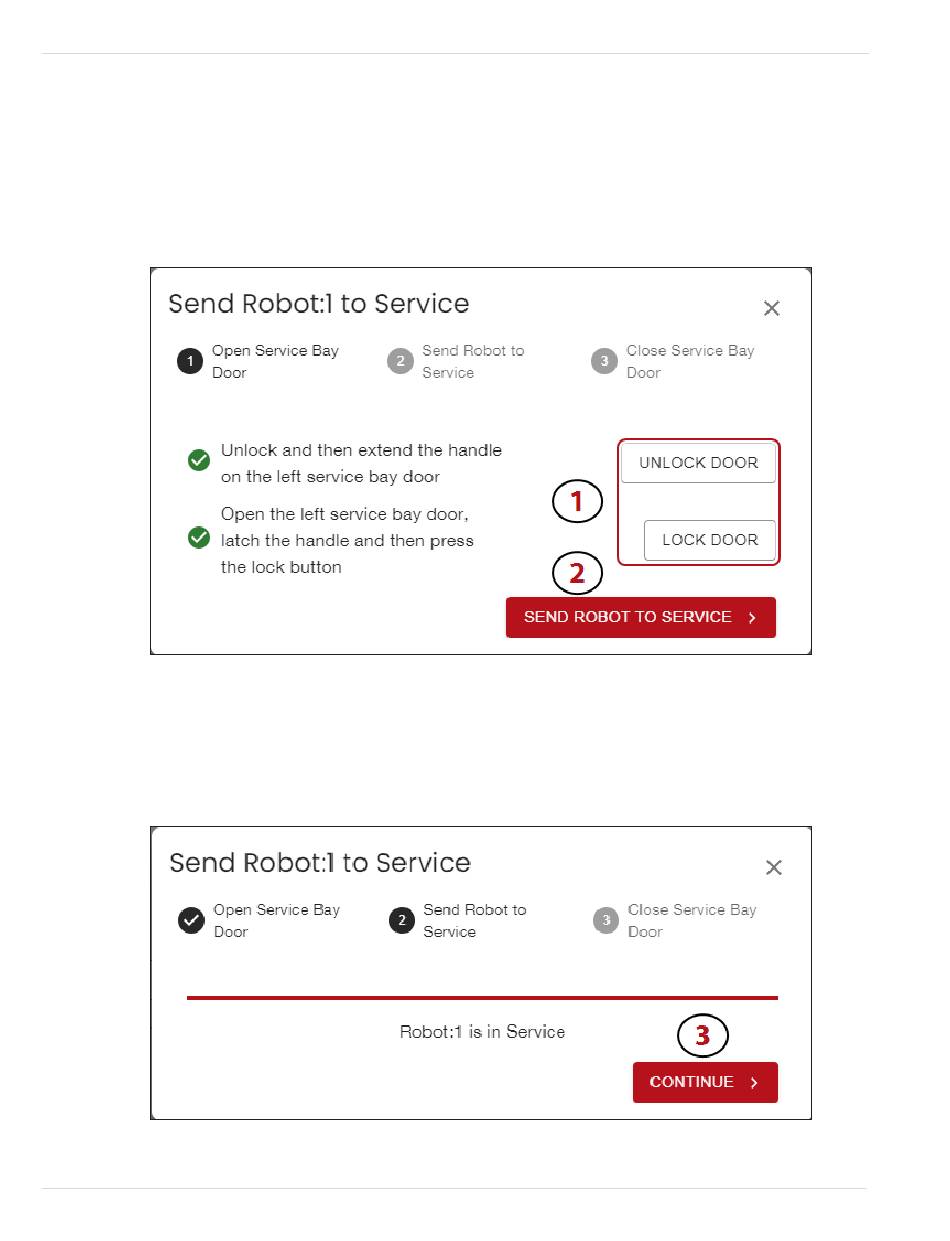

Figure 96 The LumOS Send to Service Open Service Bay Door screen.
1. If the service bay doors are not already opened, click Unlock Door then open the service
bay door. Latch the service bay door, then click Lock Door.
2. When all steps are completed properly and you are ready to proceed, green check marks
display on the left of each step. Click Send Robot To Service.
Figure 97 The LumOS Send to Service Send Robot to Service screen.
APRIL 2024
162
TFINITY PLUS USER GUIDE
