Richmar US PRO 2000 2ND EDITION Quick Reference Manual

US PRO 2000
2 N D E D I T I O N
QUICK REFERENCE GUIDE
1
2
6
Front
CONNECT UNIT
TO ADAPTER
USING COUPLING
DO NOT use any other adapter not supplied by the manufacturer or outside
the manufacturer recommended adapter, including convertors or adapters.
For more information about your US PRO 2000™ 2
The purpose of this guide is to assist you in correctly operating your US PRO 2000™ 2
Portable Ultrasound unit. This device should only be used under the continued supervision of a
licensed healthcare professional. This guide is not intended to replace or substitute the US PRO 2000™
2 Edition Instruction Manual. PLEASE READ THE INSTRUCTION MANUAL COMPLETELY BEFORE
nd
USING THIS DEVICE. Read, understand and practice the warnings, cautions and operating instructions.
Always follow the operating instructions prescribed by your healthcare provider.
7
3
4
5
Back
8
m
Edition unit, please visit us online at richmarweb.com or call 1-800-871-7858.
nd

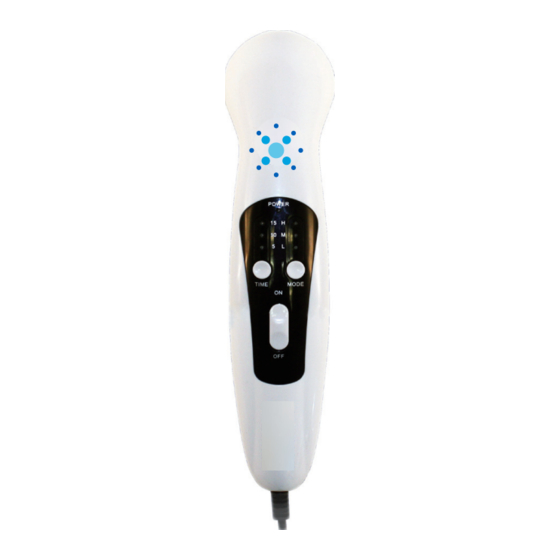

US PRO 2000 ™
2 EDITION
ND
PORTABLE
ULTRASOUND
1
Time indicator light
2
Time button
3
Power indicator light
4
Intensity indicator light
5
Mode button
6
Power switch
7
Ultrasound head
8
AC/DC adapter connector
AC/DC POWER
ADAPTER
The US PRO 2000™ 2
nd
Edition uses an AC/DC
adapter (included) as its
power source. Batteries
are not required.
Connect the adapter cord
to the ultrasound unit,
then connect the adapter
plug to a wall outlet.
PAGE 1
Edition
nd
EXPLANATION OF
ULTRASOUND
STIMULATOR EFFECT
The US PRO 2000™ 2 Edition
nd
Therapeutic Ultrasound device
generates pulsed high frequency
sound waves (1MHz) that are
transferred to specific areas with a
sound-head probe. The Pulsed Sound
Waves travel deep into the tissue
generating vasodilation, which helps
increase the blood flow to the treated
area. Most patients will feel nothing
at all DURING treatment, while some
may feel a very slight warmth.
FUNCTION TEST OF
ULTRASONIC ACTION
To assure your device is operating
properly, be sure the protective
film has been removed from the
ultrasound head. Turn the device ON
and select any TIME setting. Resting
the unit horizontally, place a few
drops of water on the ultrasound
head. In the LOW setting, you will
observe the water drops vibrating
slightly. In the
MEDIUM setting,
the water drops
will vibrate more
strongly and begin
to mist. On HIGH,
the vibration is
very strong and
atomization will
occur. This test will last only a few
seconds, as the unit automatically
turns off when the ultrasound head is
not in good contact with the skin.
Consult the TROUBLE SHOOTING
section of the instruction manual if
device fails this function test.
3294.19.06.A
