6 Mounting and connection
6.3

Mounting MiniCODER

Tools and supplies (not included in the scope of supply)
● 2 screws M3 with spring washers for fastening
(recommendation: DIN 912 M3×20 or DIN 7984 M3×20)
● Digital instrument (e.g. oscilloscope)
● Torque wrench
● Threadlocker (e.g. Loctite 274)
6.3.1

Preparing for mounting

64
Mounting MiniCODER

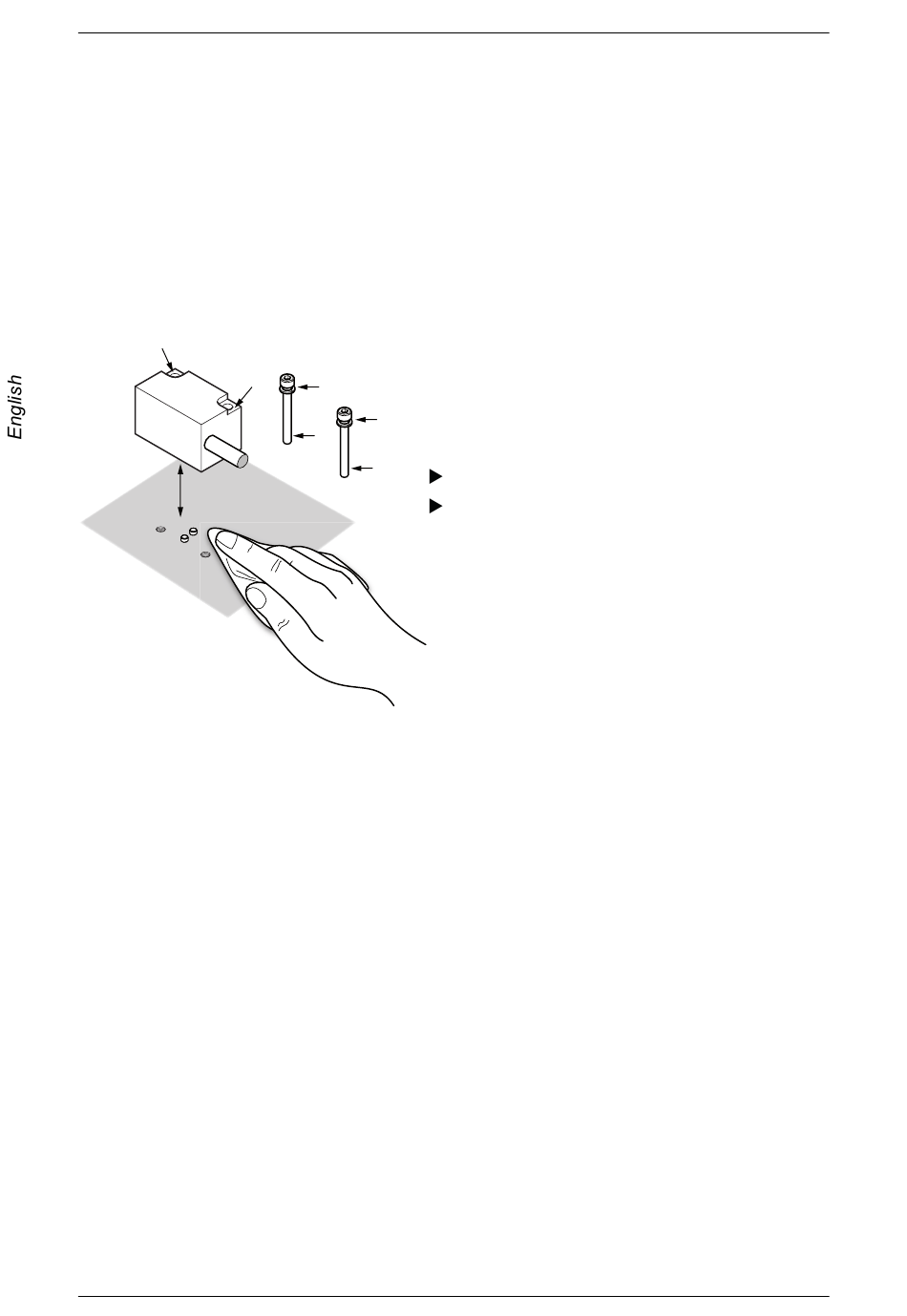

Fit the positioning pins in the bores.
Thoroughly clean the mounting surfaces
on the machine and on the MiniCODER as
well as the screws to obtain good electrical
conductivity.
