Product Description

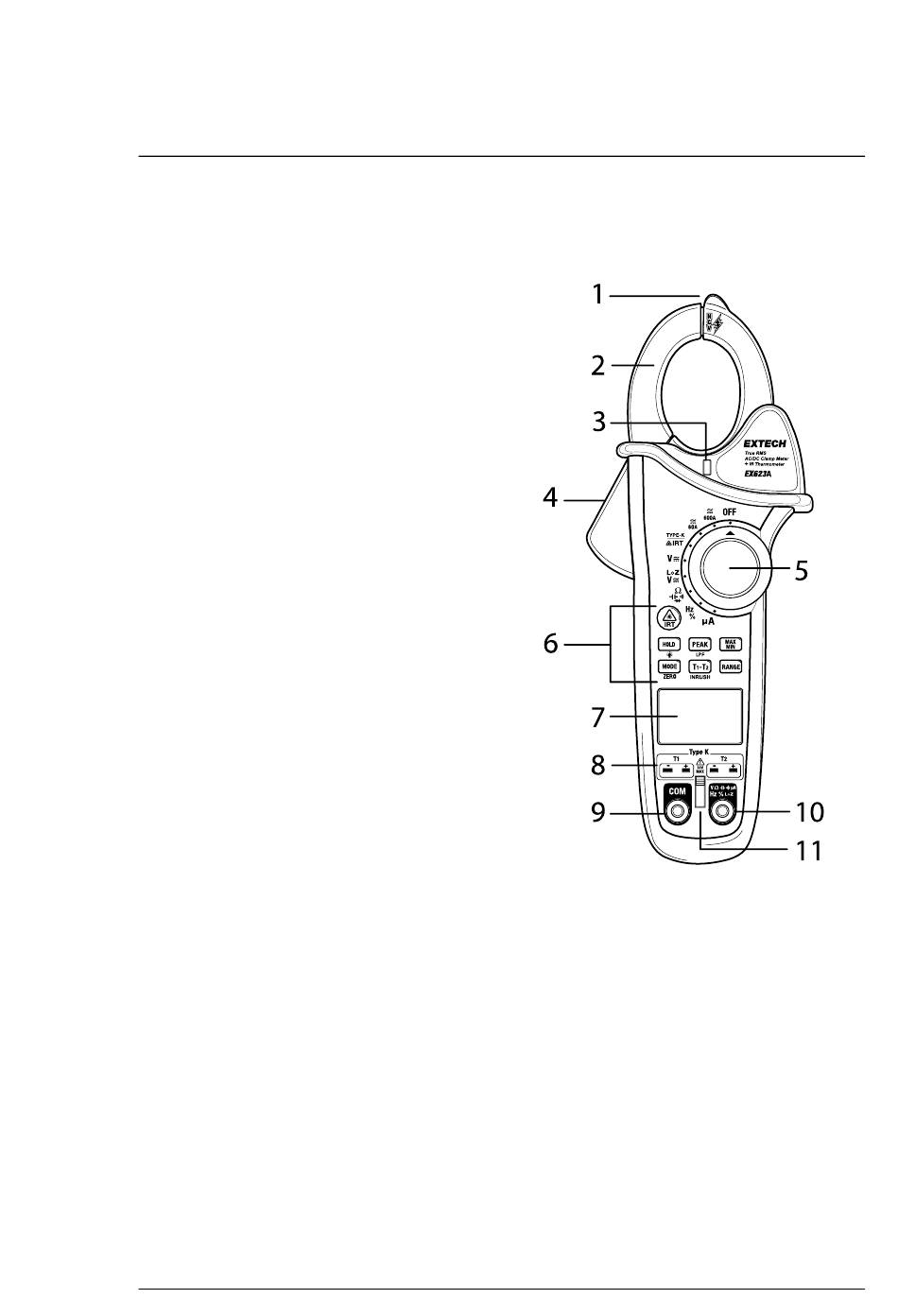

Refer to Figure 3.1 below for these numbered items.

Non-contact voltage (NCV) detector

Current clamp

NCV LED indicator

Clamp opening trigger

Function switch

Control buttons (Section 3.1)

Backlit LCD (Section 3.4)

Thermocouple input jacks

Negative test lead jack

10. Positive test lead jack

11. Input shutter switch

#NAS100174; r. AA/97578/97616; en-US

Figure 3.1 Meter Front.
