Summary of Contents for Extech Instruments EX613

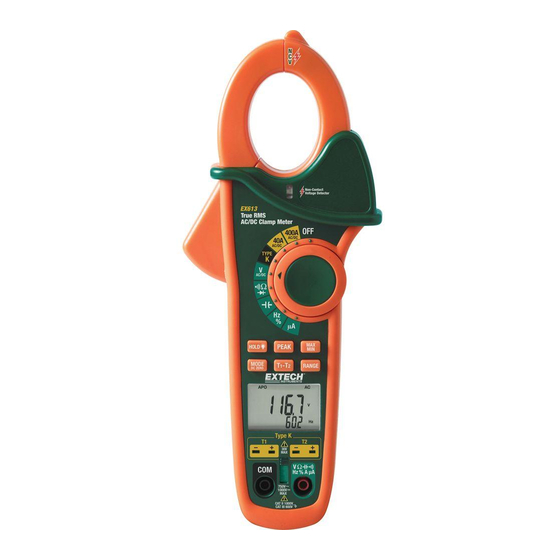

- Page 1 User's Guide 400Amp True RMS AC/DC Clamp Meter Model EX613 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Congratulations on your purchase of this Extech EX613 True RMS Clamp Meter. This meter measures AC Current, DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity. Special features include Dual Input Thermocouple Temperature, and Non- Contact Voltage detector.
- Page 3 400A DC/AC A DC 400A DC/AC V DC, V AC 600V DC/AC Resistance, Capacitance, Frequency, Diode Test 250V DC/AC A 4000 A Type K Temperature 30V DC, 24V AC EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 4: Meter Description
Fahrenheit and Celsius units (Temperature) Therocouple 1, Thermocouple 2, Thermocouple difference n, m, , M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo Continuity test Diode test EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Operation
NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation. EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Ac/Dc Current Measurements
Touch the red test probe tip to the positive side of the circuit. Read the voltage value in the display. Frequency When ACA is selected, the measured frequency can be viewed in the lower display. EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 7: Resistance Measurements
If one reading displays a value (typically 0.400V to 01.800V) and the other reading displays OL, the diode is good. If both readings display OL the device is open. If both readings are very small or ‘0’, the device is shorted. EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 8: Capacitance Measurements
Read the Frequency value on the upper large display. Read the Duty Ratio on the lower small display. Press the MODE button to display the Duty Ratio on the large display. EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 9: Type K Temperature Measurements
Press the T1-T2 button to step through the display combinations: Upper display Lower display T1-T2 T1- T2 Note: In case of an open input or a temperature overrange, the meter will display “- - - -” . EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 10: Lcd Backlight
APO is now disabled (APO icon is off) and will be reset when the Function switch is returned to the OFF position. Low battery indication When the icon appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 11: Maintenance
Remove the battery Remove the Phillips head screws (2) that secure the rear cover. Replace the fuse with one of equal rating. (200mA, 660V [SIBA 70-180-40]) Replace the rear cover and battery EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 12: Specifications
±(3.0% + 10 digits) 400.00µF 0.01µF ±(3.5% + 10 digits) 4000.0µF 0.1µF ±(5.0% + 10 digits) 40.000mF 0.001mF Frequency 400.00Hz 0.01Hz ±(1.0% + 3 digits) (clamp) Sensitivity: 5Arms minimum EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 13 ±(1.0% + 2°F/1°C) 1 to 100°C 212 to 718°F ±(1.5% + 3°F/2°C) 101 to 399°C 719 to 1832°F ±(2.5% + 7°F/4°C) 400 to 1000°C Specification does not include probe accuracy EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 14: Continuity Check
Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. Approvals EX613-en-GB_v2.9 4/15 GlobalTestSupply www. .com Find Quality Products Online at:...
