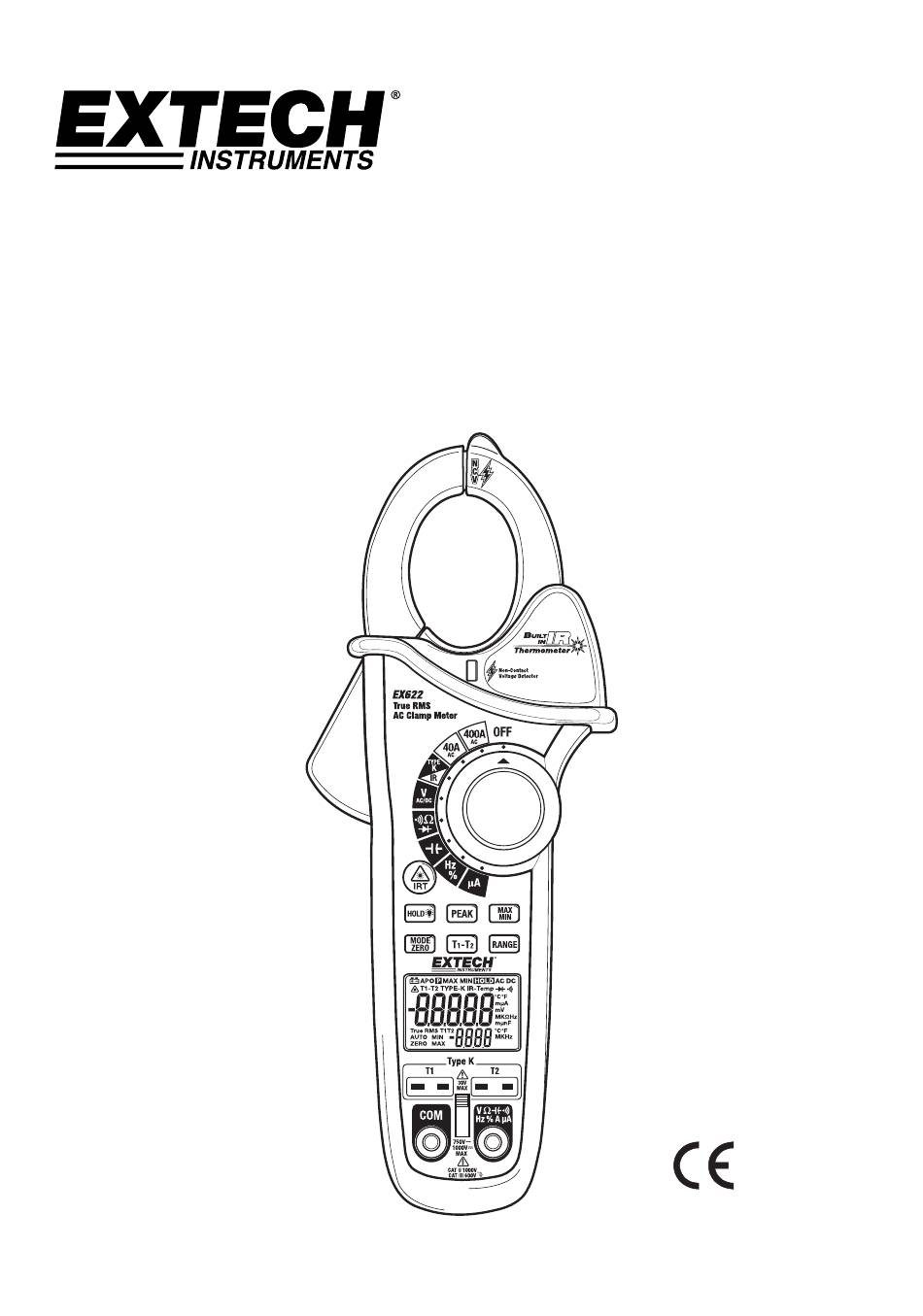

- Page 1 User's Guide 400Amp True RMS AC Clamp Meter with IR Thermometer Model EX622 contact: www.ponpe.com sale@ponpe.com...
- Page 2 Introduction Congratulations on your purchase of this Extech EX622 True RMS Clamp Meter. This meter measures Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity. Special features include Dual Input Thermocouple Temperature, Non-Contact IR Temperature and Non-Contact Voltage detector. The double molded case is designed for heavy duty use.
- Page 3 Function Maximum Input A AC, 400A DC/AC V DC, V AC 600V DC/AC Resistance, Capacitance, Frequency, Diode Test 250V DC/AC A 4000 A Type K Temperature 30V DC, 24V AC EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com...
-
Page 4: Meter Description
F and Fahrenheit and Celsius units (Temperature) Therocouple 1, Thermocouple 2, Thermocouple difference n, m, , M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo Continuity test Diode test Laser pointer EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 5: Operation
NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 6: Ac Current Measurements
Touch the red test probe tip to the positive side of the circuit. Read the voltage value in the display. Frequency When ACA is selected, the measured frequency can be viewed in the lower display. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 7: Resistance Measurements
If one reading displays a value (typically 0.400V to 01.800V) and the other reading displays OL, the diode is good. If both readings display OL the device is open. If both readings are very small or ‘0’, the device is shorted. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 8: Capacitance Measurements
Touch the red test probe tip to the other side of the device. Read the Frequency value on the upper large display. Read the Duty Ratio on the lower small display. Press the MODE button to display the Duty Ratio on the large display. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 9: Type K Temperature Measurements
Press the T1-T2 button to step through the display combinations: Upper display Lower display T1-T2 T1- T2 Note: In case of an open input or a temperature overrange, the meter will display “- - - -” . EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 10: Non-Contact Infrared Temperature Measurements
Steam, dust, smoke, etc. can obscure measurements. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and down motion) until the hot spot is located. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 11: Lcd Backlight
APO is now disabled (APO icon is off) and will be reset when the Function switch is returned to the OFF position. Low battery indication When the icon appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 12: Maintenance
Never mix battery types. Always install new batteries of the same type Fuse Replacement Remove the battery Remove the Phillips head screws (2) that secures the rear cover. Replace the fuse with one of equal rating. (200mA, 660V [SIBA 70-180-40]) Replace the rear cover and battery EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... -
Page 13: Specifications
±(5.0% + 40 digits) 4000.0nF 0.1nF ±(3.0% + 10 digits) 400.00µF 0.01µF ±(3.5% + 10 digits) 4000.0µF 0.1µF ±(5.0% + 10 digits) 40.000mF 0.001mF Frequency 400.00Hz 0.01Hz ±(1.0% + 3 digits) (clamp) Sensitivity: 5Arms minimum EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com... - Page 14 -50 to -20°C -4 to 31°F ±2% of reading or ±2°C/4°F -20 to -1°C whichever is greater 0.1° 32°F ±1°C/2°F 0°C 33 to 518°F ±2% of reading or ±2°C/3°F 1 to 270°C whichever is greater EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com...
- Page 15 For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V and Category II 1000V, Pollution Degree 2. Approvals Patent notice U.S. Patent 7163336 Copyright © 2013‐2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com EX622-en-GB_v2.8 4/15 contact: www.ponpe.com sale@ponpe.com...
