Quick Start Guide
D104559X012
Note
Proper grounding is a critical safety measure in all electrical systems and installations. The DPC2K has a safety ground terminal
within the termination area, as well as an external ground lug on the exterior of the DPC2K housing.
WARNING
Personal injury or property damage, caused by fire or explosion, can result from the discharge of static electricity. Connect
2
a 14 AWG (2.08 mm
) ground between the digital process controller and earth ground when flammable or hazardous gases
are present. Refer to national and local codes and standards for grounding requirements.

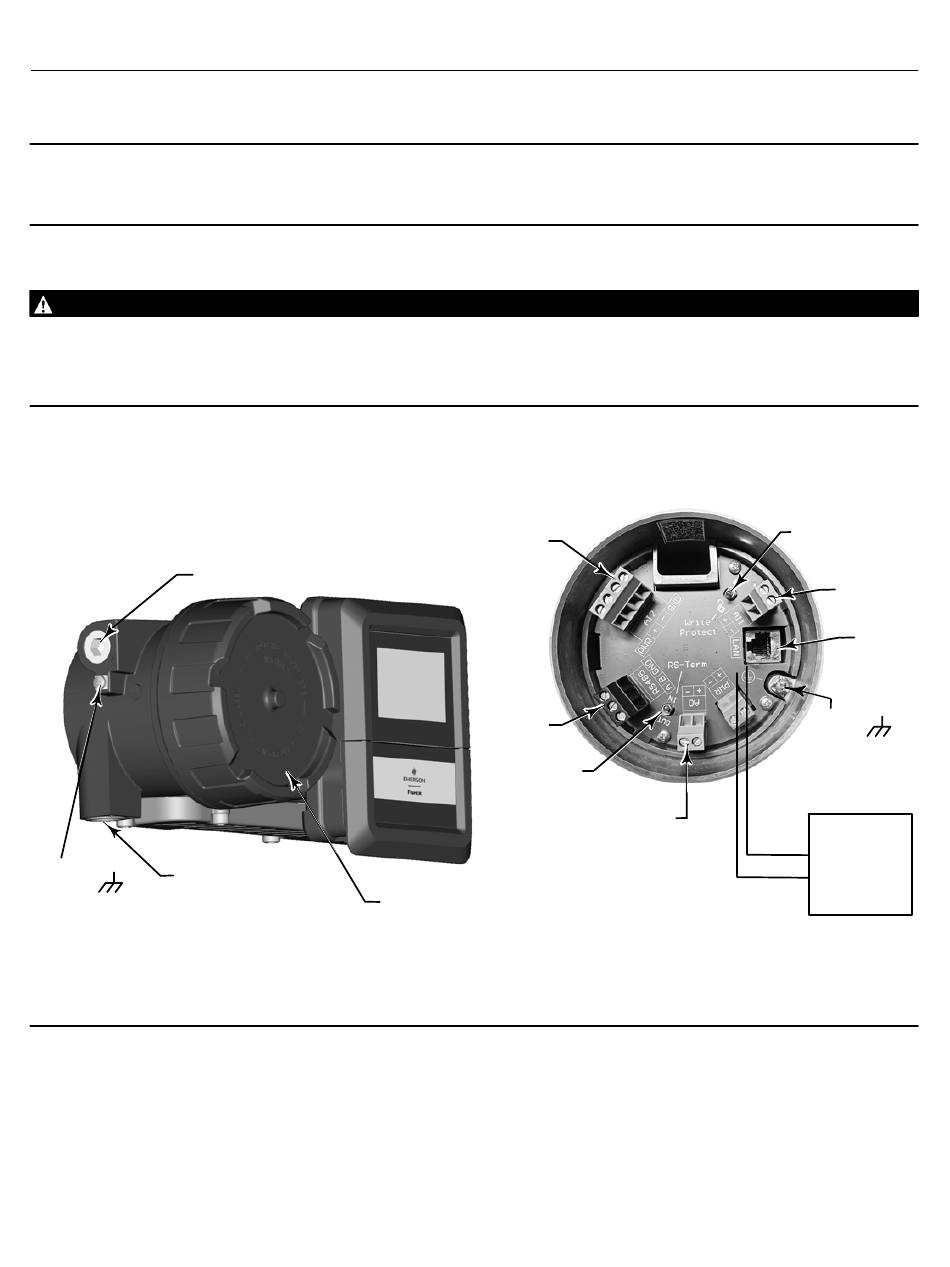

Figure 17. Terminals, Connections, and Grounds
1/2 NPT CONDUIT ENTRY
EARTH
1/2 NPT
GROUND
CONDUIT ENTRY
AI2
RS485
RS485
TERMINATION
RESISTOR
SWITCH
TERMINAL BOX CAP
DPC2K Digital Process Controller
WRITE
PROTECT
SWITCH
SAFETY
GROUND
AO
+
-
April 2024
AI1
LAN
POWER
9 - 28 VDC
23
