DPC2K Digital Process Controller
April 2024
Step 2—Connect the Pneumatic Tubing

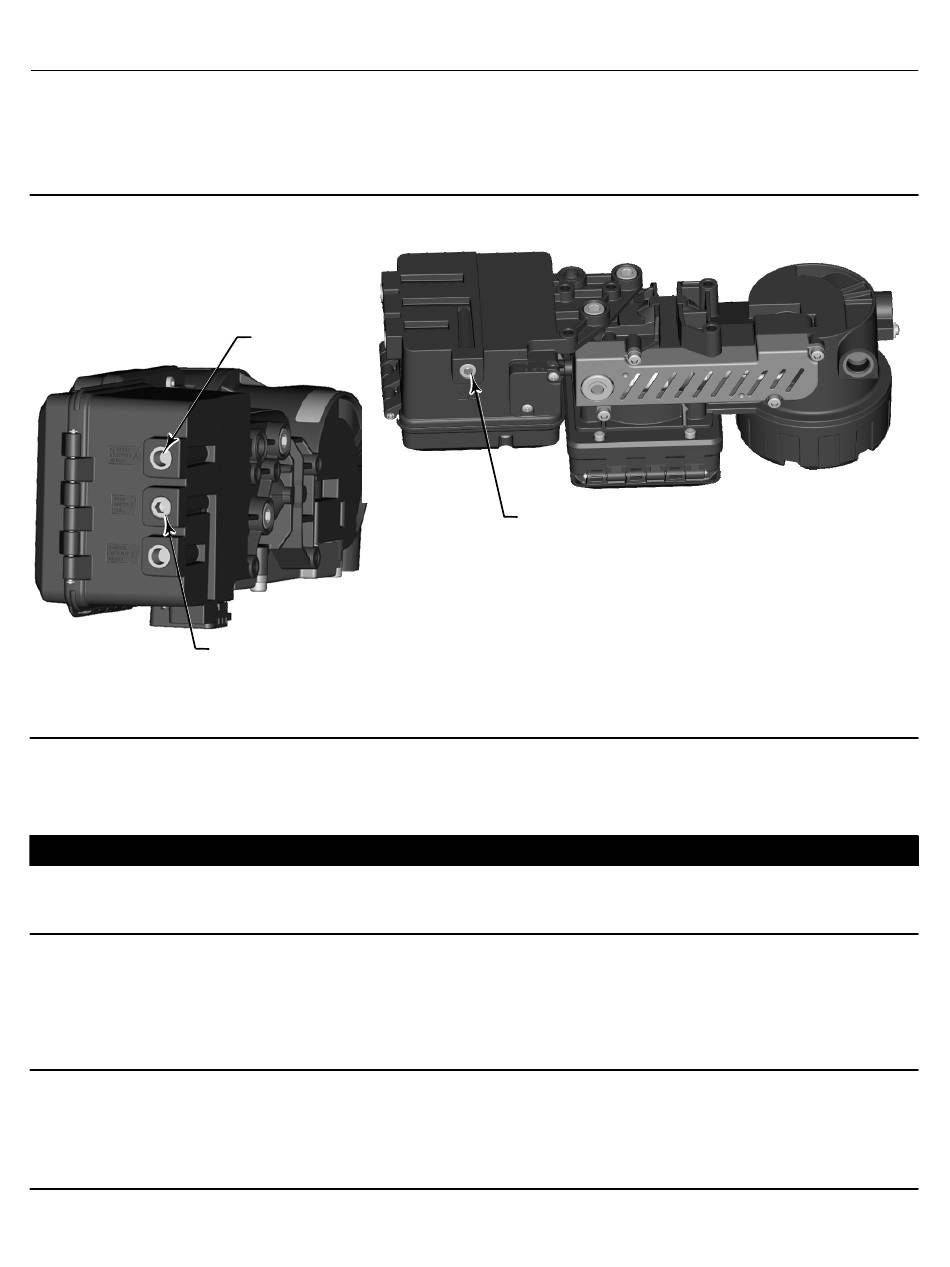

Figure 14. Supply Inputs and Outputs
NOTICE
Do not use sealing tape on pneumatic connections. This instrument contains small passages that may become obstructed
by detached sealing tape. Thread sealant paste should be used to seal and lubricate pneumatic threaded connections.
1. Connect DPC2K pneumatic OUTPUT A to the actuator pneumatic input using at least 10 mm (3/8­inch) diameter
tubing.
Note
To have the actuator stem extend from the cylinder with increasing input signal, connect OUTPUT A to the actuator cylinder
connection farthest from the actuator stem. To have the actuator stem retract into the cylinder with increasing input signal,
connect OUTPUT A to the actuator cylinder connection closest to the actuator stem.
18
OUTPUT A
SUPPLY INPUT
(SIDE OF INSTRUMENT)
SUPPLY INPUT
(BOTTOM OF INSTRUMENT)
