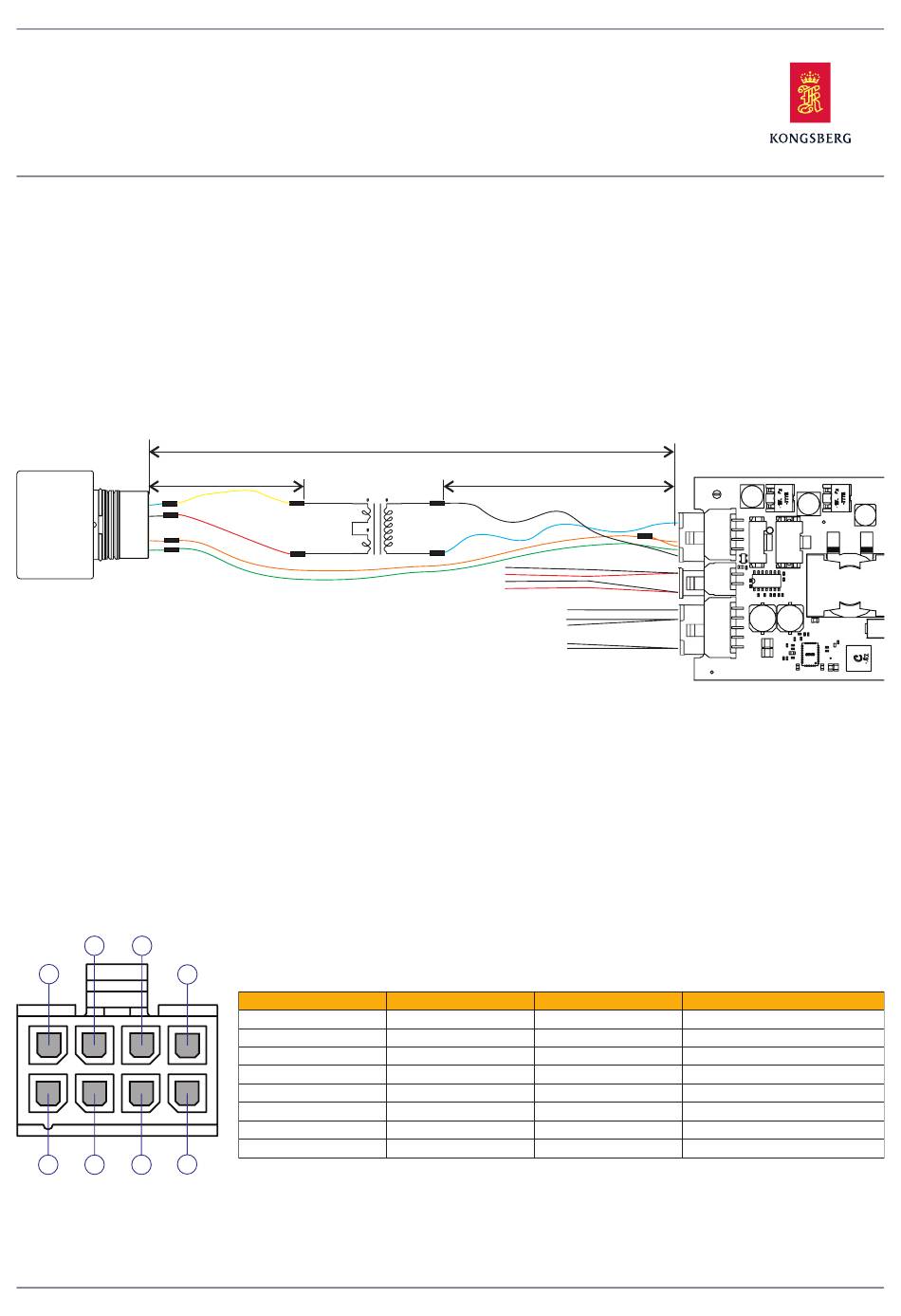

Kongsberg cNODE Modem Embed - Transducer TD40V Mini
Quick Reference Guide
Installing the cNODE Modem Embed cables
(1) Connect the transducer cable. If you have
a cable kit, the wires are already connected
to the connectors.
(2) Prepare 8 wires with the appropriate
length for the modem interface.
(3) Install a crimp terminal in one end of
each cable.
(4) Install the crimp terminals in a Molex 8–
pin receptacle according to the cable draw-
ing.
Installing the transducer cables TD40V Mini
(1) Use one yellow wire (0.5 mm²) and con-
nect the blue wire from the transducer with
the yellow wire from the transformer.
(2) Use one red wire (0.5 mm²) and connect
the black wire from the transducer with the
red wire from the transformer.
(3) Use two black wires (0.5 mm²) and con-
nect both to the black wire from the trans-
former.
(4) Use two blue wires (0.5 mm²) and con-
nect both to the blue wire from the trans-
former.
6
7
5
8
2
1
3
4
(5) Connect J3 to P3 on the top of the PCB.
(6) Prepare 2 red and 2 black wires with the
appropriate length for the power.
(7) Install a crimp terminal in one end of
each cable.
(8) Install the crimp terminals in a Molex 4–
pin receptacle according to the cable draw-
ing.
(9) Connect J4 to P4 in the front on the PCB.
(10) Prepare 3 wires with the appropriate
Max. 220 cm
Max. 200 cm
Transformer
Yellow
N2
Red
(5) Use two green wires (0.24 mm²) and con-
nect both to the green wire from the trans-
ducer.
(6) Use one orange wire (0.24 mm²) and con-
nect to the orange wire from the transducer.
(7) Add crimp terminals to the end of the
wires.
(8) Install the crimp terminals in a Molex
8-pin receptacle according to the cable
drawing.
(8a) Connect the green wires to pin 1 and 5
on the receptacle.
Transducer connector pinout J1
This is the pin configuration for a female plug, as seen towards the plug (face view).
Pin number
1
2
3
4
5
6
7
8
Black
N1
Blue
{
External Power
Service Interface
Colour
Green
Black
Blue
Green
Orange
Black
Blue
110-0075009 / A / 2024–May–15
Kongsberg cNODE Modem Embed - Transducer TD40V Mini
length for the service interface.
(11) Install a crimp terminal in one end of
each cable.
(12) Install the crimp terminals in a Molex
8–pin receptacle according to the cable
drawing.
(13) Connect J5 to P5 in the front on the PCB.
Max. 20 cm
J1
J4
{
J5
(8b) Connect the black wires to pin 3 and 7
on the receptacle.
(8c) Connect the blue wires to pin 4 and 8
on the receptacle.
(8d) Connect the orange wire to pin 6 on the
receptacle.
This is now receptacle J1.
(9) Connect receptacle J1 to connector P1
on the front of the PCB.
Signal
ID data
Screen
TD +
TD -
ID data
Ground
TD +
TD -
P3
P1
P2
J3
P4
P5
Minimum requirements
0.24 mm²
0.5 mm²
0.5 mm²
0.24 mm²
0.24 mm²
0.5 mm²
0.5 mm²
Page 1/2
