Kongsberg cNODE Modem
Embed
Quick Reference Guide

Installing the cNODE Modem Embed cables

Procedure
1
Connect the transducer cable.
If you have a cable kit, the wires are already connected to the connectors.
2
Prepare 8 wires with the appropriate length for the modem interface.
3
Install a crimp terminal in one end of each cable.
4
Install the crimp terminals in a Molex 8–pin receptacle according to the cable drawing.
5
Connect J3 to P3 on the top of the PCB.
6
Prepare 2 red and 2 black wires with the appropriate length for the power.
7
Install a crimp terminal in one end of each cable.
8
Install the crimp terminals in a Molex 4–pin receptacle according to the cable drawing.
9
Connect J4 to P4 in the front on the PCB.
10 Prepare 3 wires with the appropriate length for the service interface.
11 Install a crimp terminal in one end of each cable.
12 Install the crimp terminals in a Molex 8–pin receptacle according to the cable drawing.
13 Connect J5 to P5 in the front on the PCB.

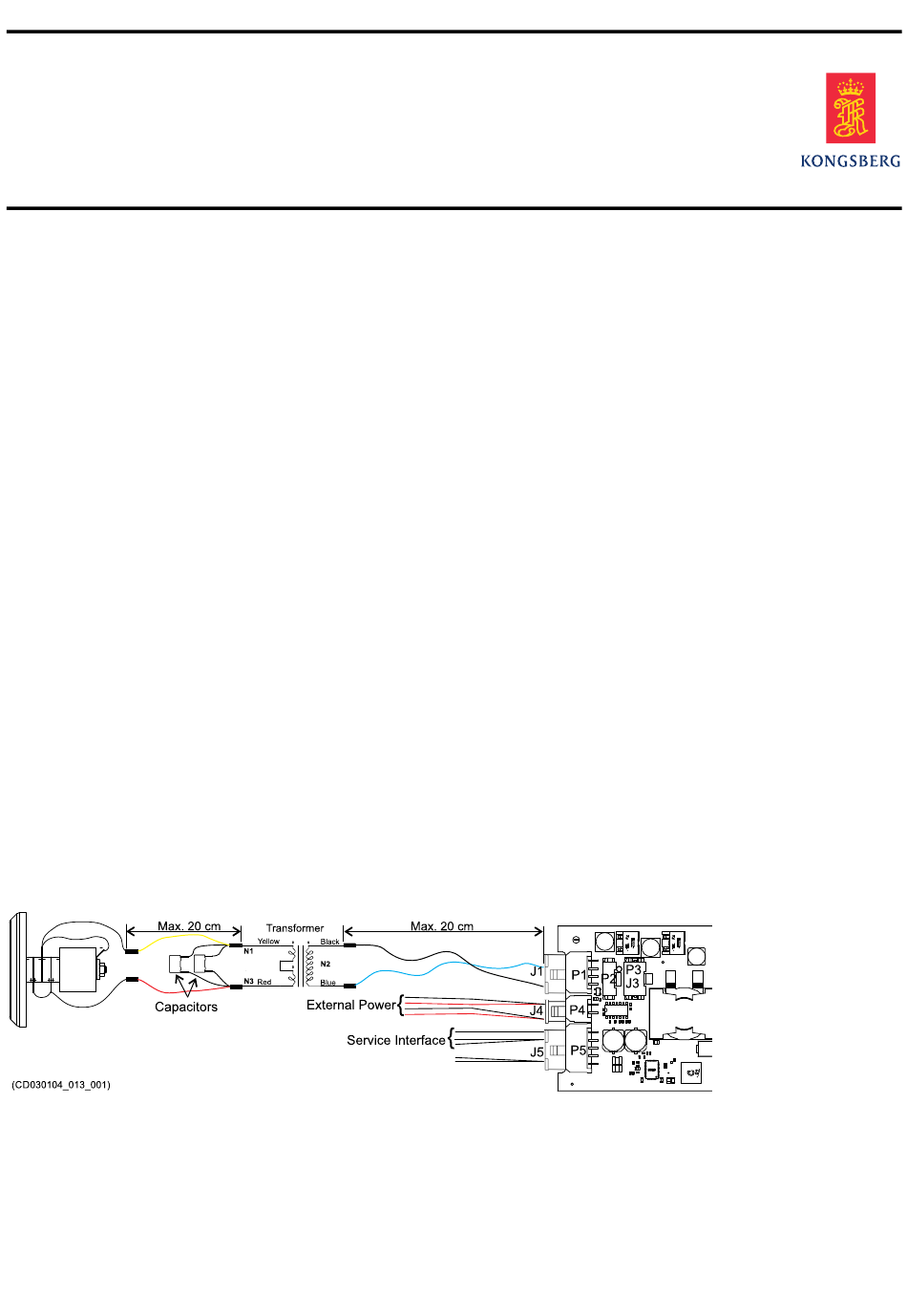

Installing the transducer cables TD80V

Prerequisites
Procedure
1
Use a yellow wire (0.5 mm
and the yellow wire from the transformer.
2
Use a red wire (0.5 mm
the red wire from the transformer.
2
) and connect the white wire from the transducer with both capacitors
2
) and connect the black wire from the transducer with both capacitors and
431016 / A / 2019–11–15
