KEY FEATURES
• Split-beam transducer
for fishery and fishery
research applications
• Operating freqency is
38 kHz
• Beamwidth is 10 degrees
• Maximum input power is
1500 W
• Physical dimensions:
Diameter: 340 mm
Height: 150 mm

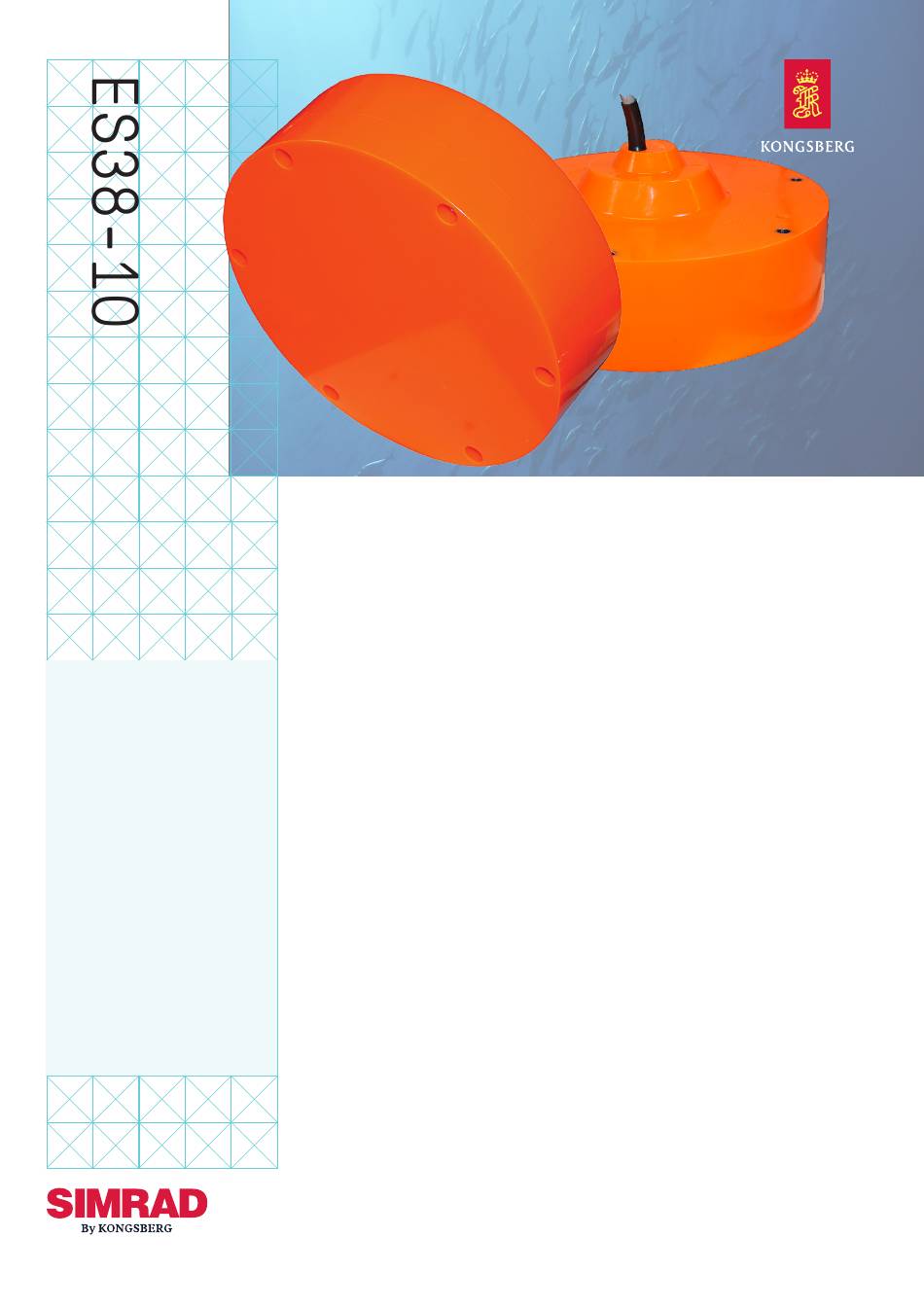

Simrad ES38-10
SPLIT-BEAM TRANSDUCER
The Simrad ES38-10 is a split-beam transducer of medium size, designed
for fishery and fishery research applications. The beamwidth is 10 degrees
at a operational frequency of 38 kHz. The transducer is designed with
three separate sectors and for transducers manufactured later than 2021 it
also includes a sensor to measure sea temperature.
The transducer is normally mounted flush with the hull plating or the
bottom of a blister. It is provided with an installation flange, and by means
of a clamping ring, it is secured to a mounting ring welded into the hull
plating or the bottom of a blister. The clamping ring is provided with the
transducer and already fitted.
The transducer can also be flush mounted at the bottom of a drop keel.
The transducer cable penetrates the hull using a stuffing tube and a cable
gland.
Order information
To order the ES38-10 or any of the optional items provided with it, contact
your local dealer. If you do not have a regular dealer, a list of all our
distributors and dealers can be found on our website. Your dealer will also
be able to help you with a detailed quotation including price and delivery
information.
Transducer
• Deliverables:
KSV-202714 transducer w/20 m
cable
• 430162 transducer with 5 m
cable and SubConn connector
Included in the delivery
KSV-202714:
• Transducer
• Stuffing tube
• Cable gland (washers, rubber
gasket and packing nut inserted
on the cable)
• Mounting hardware
• Documents
Optional items
These optional items are available
for any installation of the trans-
ducer and not part of the delivery.
• Mounting ring: 499-203336
• Transducer cable: 382189 (Use
this part number for transducer
cable if the cable included is too
short for your purposes)
164404/C
