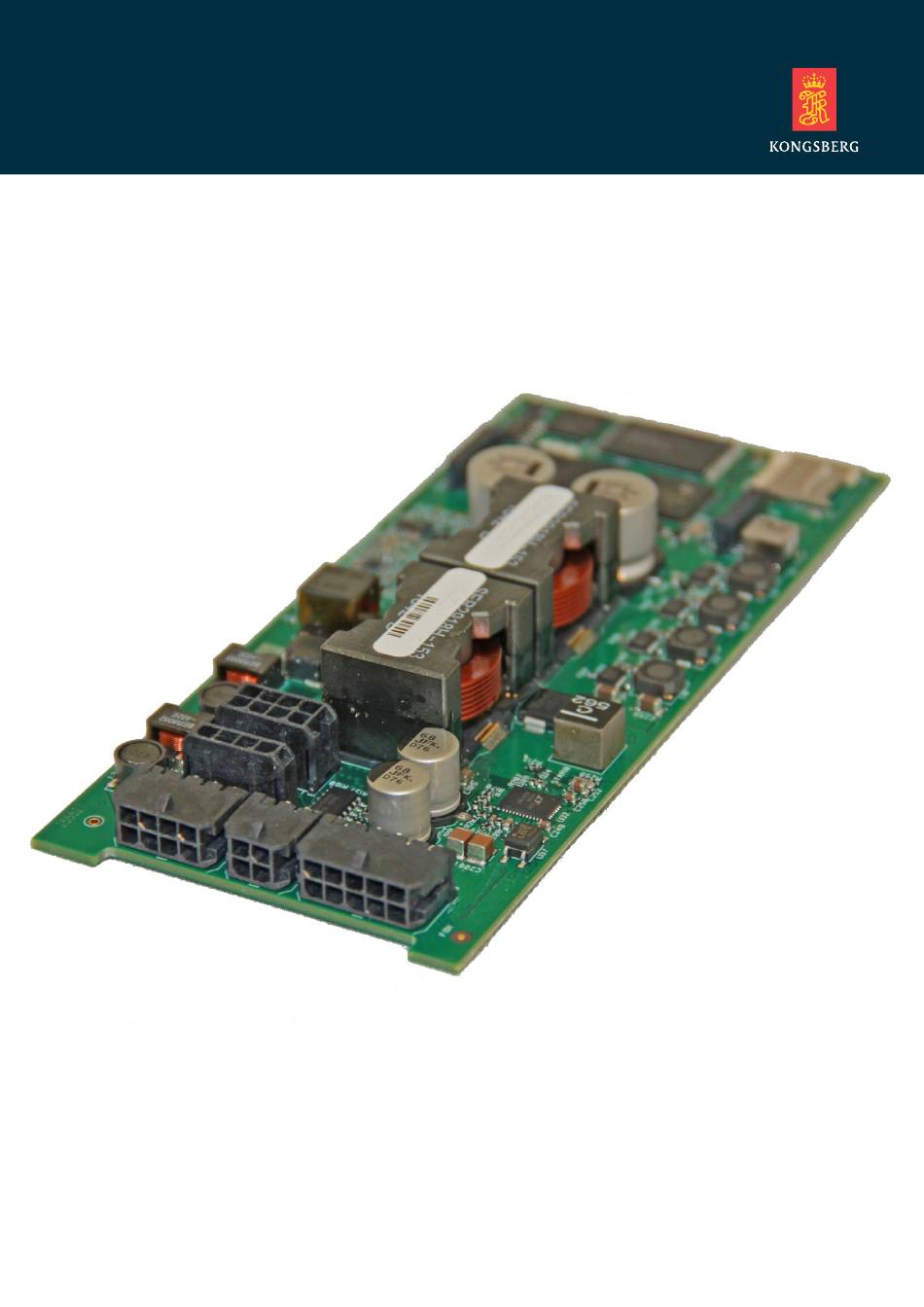

- Page 1 Instruction Manual cNODE ® Embed...
- Page 3 Embed Instruction Manual 429468/A February 2018 © Kongsberg Maritime AS...
- Page 4 Kongsberg Maritime disclaims any responsibility for damage or injury caused by improper installation, use or maintenance of the equipment. Disclaimer Kongsberg Maritime AS endeavours to ensure that all information in this document is correct and fairly stated, but does not accept liability for any errors or omissions. Support information If you require maintenance or repair, contact your local dealer.
-
Page 5: Table Of Contents
Printed circuit board UTB cNODE Embed spare part.............24 Capacitor TD80V spare part ....................24 Transformer TD80V spare part..................24 Transformer TD180 spare part..................25 Cable kit for Printed circuit board UTB cNODE Embed spare part (optional)....25 DRAWING FILE..............26 Transducer TD80V Low outline dimensions..............27 Transducer TD180 outline dimensions ................28 Printed circuit board (PCB) outline dimensions ..............29... - Page 6 Embed 429468/A...
-
Page 7: About This Manual
About this manual About this manual Observe this general information about the cNODE Embed Instruction Manual; its purpose and target audience. Purpose of manual The purpose of this instruction manual is to provide the descriptions and procedures required to install, operate and maintain the cNODE Embed. -
Page 8: Kongsberg Cnode Embed
Embed Instruction Manual Kongsberg cNODE Embed Topics System description, page 7 System diagram, page 7 Scope of supply, page 8 General supply conditions, page 9 Support information, page 9 429468/A... -
Page 9: System Description
Kongsberg cNODE Embed System description The cNODE Embed consists of a printed circuit board and a transducer that integrates into custom pressure housing. The cNODE Embed provides flexibility to integrate transponder electronics into a custom pressure housing. This reduces the size, weight and the need for subsea interface cabling. -
Page 10: Scope Of Supply
Embed Instruction Manual cNODE Embed 33–180 Mini Scope of supply The following items are provided when you order a cNODE Embed. cNODE Embed 33–80V Low • Printed Circuit Board (PCB) • Transducer TD80V Low • External capacitors • Transformer for TD80V •... -
Page 11: General Supply Conditions
The equipment must be covered to protect it from dust and other forms of contamination when stored. Support information If you need support for your Kongsberg cNODE Embed you must contact Kongsberg Maritime AS. • : Kongsberg Maritime AS Company name •... -
Page 12: Technical Specifications
Embed Instruction Manual Technical specifications The technical specifications summarize the main functional and operational characteristics of the cNODE Embed system, as well as information related to power requirements, physical properties and environmental conditions. Note We are continuously working to improve the quality and performance of our products. -
Page 13: Performance Specification
Technical specifications Performance specification These performance specifications summarize the main functional and operational characteristics of the cNODE Embed. Electronics • : Max, High, Low and Min (6 dB steps) Transmitting power settings • : 203 dB Max transmitting source level •... -
Page 14: Weight And Outline Dimensions
Embed Instruction Manual Weight and outline dimensions These weights and outline dimension characteristics summarize the physical properties of the cNODE Embed. Printed circuit board (PCB) • Physical dimensions – : 142 mm Length – : 63 mm Width –... -
Page 15: Power Specifications
Required external power supply • : 250 W Transmitting power (max) • : < 100 mW Standby power Environmental specifications These environmental specifications summarize the temperature and humidity requirements for the cNODE Embed. • : -5 to +55 °C Operational temperature 429468/A... -
Page 16: Cable Layout And Interconnections
Embed Instruction Manual Cable layout and interconnections Topics About Electrostatic Discharge (ESD), page 15 Cable specification, page 16 Connectors, page 18 429468/A... -
Page 17: About Electrostatic Discharge (Esd)
Cable layout and interconnections About Electrostatic Discharge (ESD) Electrostatic discharge (ESD) is the sudden flow of electricity between two electrically charged objects. Such flow can be caused by contact, an electrical short, or dielectric breakdown. ESD can cause serious damage to printed circuit boards and electronic modules. -
Page 18: Cable Specification
Embed Instruction Manual Precautions to prevent Electrostatic Discharge (ESD) Sensitive printed circuit boards and electronic modules must always be transported and stored in protective antistatic packing bags. The circuit boards and modules must not be transported or stored close to strong electrostatic, electromagnetic or radioactive fields. - Page 19 • Insulate all soldering and splices with heat shrinkable tube. • Remove the connectors from the TD180 Mini transducer before installation. Related topics cNODE Embed TD80V Low wiring diagram, page 30 cNODE Embed TD180 Mini wiring diagram, page 31 429468/A...
-
Page 20: Connectors
Embed Instruction Manual Connectors Related topics cNODE Embed TD80V Low wiring diagram, page 30 cNODE Embed TD180 Mini wiring diagram, page 31 P1 Transducer connector pin out This is the wiring specification for the transducer connector on the printed circuit board. -
Page 21: P5 Service Interface Connector Pin Out
Cable layout and interconnections P5 Service interface connector pin out This is the wiring specification for the Service interface connector. The pin numbers relevant for this service interface connector are 9, 4 and 10. Pin number Signal Tx RS-232 Rx RS-232 (RESPONDER TRIGGER+) (RESPONDER TRIGGER-) 429468/A... -
Page 22: General Acoustic Considerations
Embed Instruction Manual General acoustic considerations Acoustic range The depth rating should not be confused with acoustic range. The acoustic range is dependent on many factors, and some of the factors are outside control of the user. Vessel system The directivity and coverage area for the vessel system is different, depending on which system you are using. - Page 23 General acoustic considerations Sound velocity and ray bending Changes in sound velocity through the water column caused by changes in the water temperature and/or salinity can bend the acoustic signal and make it impossible to reach the vessel. 429468/A...
-
Page 24: Operational Procedures
Embed Instruction Manual Operational procedures Once deployed the transponder is ready for operation. The transponder is operated from the HiPAP operator station APOS. • Refer to APOS online help for descriptions. 429468/A... -
Page 25: Illustrated Spare Parts Catalogue
Printed circuit board UTB cNODE Embed spare part, page 24 Capacitor TD80V spare part, page 24 Transformer TD80V spare part, page 24 Transformer TD180 spare part, page 25 Cable kit for Printed circuit board UTB cNODE Embed spare part (optional), page 25 429468/A... -
Page 26: Transducer Td80V Low Spare Part
Part number Transducer TD180 Mini spare part • : Transducer TD180 Mini Part name • : 417492 Part number Printed circuit board UTB cNODE Embed spare part • : PCB UTB cNODE Embed Part name • : 423908 Part number Capacitor TD80V spare part •... -
Page 27: Transformer Td180 Spare Part
Cable kit for Printed circuit board UTB cNODE Embed spare part (optional) • : Cable kit for PCB UTB cNODE Embed Part name The cables in this kit are 10 cm long open end cables with plugs J1, J4 and J5. -
Page 28: Drawing File
Drawing file Topics Transducer TD80V Low outline dimensions, page 27 Transducer TD180 outline dimensions, page 28 Printed circuit board (PCB) outline dimensions, page 29 cNODE Embed TD80V Low wiring diagram, page 30 cNODE Embed TD180 Mini wiring diagram, page 31 429468/A... -
Page 29: Transducer Td80V Low Outline Dimensions
Drawing file Transducer TD80V Low outline dimensions Drawing 350501 429468/A... -
Page 30: Transducer Td180 Outline Dimensions
Embed Instruction Manual Transducer TD180 outline dimensions Drawing 436632 429468/A... -
Page 31: Printed Circuit Board (Pcb) Outline Dimensions
Drawing file Printed circuit board (PCB) outline dimensions Drawing 423908 429468/A... -
Page 32: Cnode Embed Td80V Low Wiring Diagram
Embed Instruction Manual cNODE Embed TD80V Low wiring diagram Drawing 430967 429468/A... -
Page 33: Cnode Embed Td180 Mini Wiring Diagram
Drawing file cNODE Embed TD180 Mini wiring diagram Drawing 430969 429468/A... - Page 34 Embed Instruction Manual Index about functional description ..........7 diagram............. 7 electrostatic discharge (ESD) ......15 purpose of this manual ........5 target audience ..........5 audience general acoustic considerations ......20 this manual..........5 acoustic noise..........20 acoustic range ..........20 sound velocity and ray bending ......
- Page 35 (ESD) ......15 transducer TD80V Low ......... 24 wiring diagram transformer..........24 cNODE Embed TD180 Mini......31 transformer TD180 ........25 cNODE Embed TD80V Low ......30 specification wiring information.......... 16 cables ............16 specifications dimensions ..........12 external power connector .......
- Page 36 ©2018 Kongsberg Maritime...
