www.ti.com
EVM User's Guide: PCM1841-Q1EVM
PCM1841-Q1 Evaluation Module
Description

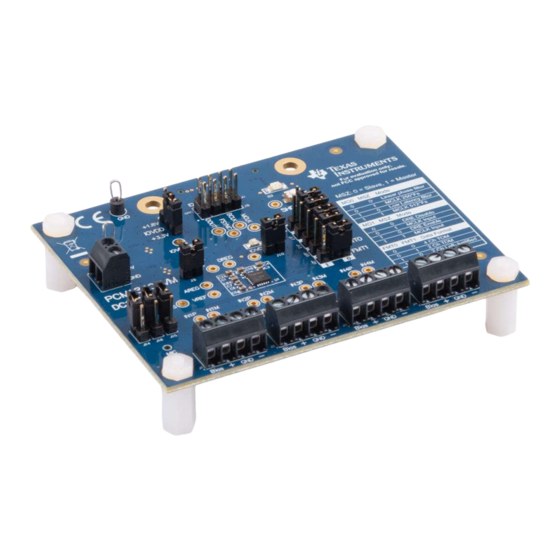

The PCM1841Q1EVM-PDK evaluation module (EVM)
allows the user to test the capabilities of Texas
Instruments' PCM1841-Q1 device. The PCM1841-Q1
is a high-performance, Burr-Brown
digital converter (ADC) that supports simultaneous
sampling of up to four analog channels. The device
supports differential line and microphone inputs with
2-VRMS full-scale signal. The device integrates
microphone bias voltage, a phase-locked loop (PLL),
a DC removal high-pass filter (HPF), and supports
sample rates up to 192kHz. The device supports time-
division multiplexing (TDM), I 2S, or left-justified (LJ)
audio formats, selectable with the hardware pin level.
Get Started
1. Order the EVM from the
product page on ti.com.
2. Download the latest PCM1841-Q1 data sheet
(SBASAU2).
SBAU460 – APRIL 2024
Submit Document Feedback
audio analog-to-
PCM1841Q1EVM-PDK
Copyright © 2024 Texas Instruments Incorporated
3. Download the latest version of this user's guide.
Features
Complete evaluation kit for the PCM1841-Q1: a
stereo high performance ADC with hardware pin
controls
Powered from single 5V supply
Jumper selection to control hardware pins
Easy interfacing available for audio measurement
tools
On-board microphone provided for voice recording
testing
Applications
Smart speakers
DVD recorders and players
AV receivers
Video conference systems
IP network cameras
Description
PCM1841-Q1 Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM1841-Q1EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments PCM1841-Q1EVM

  • Page 1 Video conference systems 1. Order the EVM from the PCM1841Q1EVM-PDK • IP network cameras product page on ti.com. 2. Download the latest PCM1841-Q1 data sheet (SBASAU2). SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction The PCM1841-Q1EVM is an evaluation module (EVM) designed to demonstrate the performance and functionality of the PCM1841-Q1 device. The PCM1841-Q1 is a high-performance audio analog-to-digital converter (ADC) that is configured through logic-level mode selection pins and does not require a digital interface such as I2C or SPI to configure registers.
  • Page 3: Evm Overview

    Hardware 2 Hardware 2.1 EVM Overview Figure 2-1 shows an overview of the system. Figure 2-1. EVM Front Overview Figure 2-2. EVM Back Overview SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4: Hardware Configuration

    DRE enabled MCLK input Audio Output Data Format FMT0 FMT1 Data Format 4 channel TDM 2 channel TDM 2 channel left-justified 2 channel I2S PCM1841-Q1 Evaluation Module SBAU460 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Line Inputs

    , full-scale audio signal. Single-ended inputs are not supported by the PCM1841-Q1 device and the inputs must be AC coupled. Figure 2-4. PCM1841Q1EVM Connection for Line Input Application SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6: Power Supply

    TPS37xx Dual-Channel, Low-Power, High-Accuracy Voltage Detectors data sheet. = 1 + × 1.188 MON AVDD = 1 + × 1.188 MON IOVDD PCM1841-Q1 Evaluation Module SBAU460 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 SDOUT IN1M SHDN IN2P IN2M IN3P IN3M FMT0 FMT1 IN4P IN4M AVSS Figure 3-1. PCM1841Q1EVM Schematics - Main Figure 3-2. PCM1841Q1EVM Schematics - Power SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Pcb Layouts

    Hardware Design Files www.ti.com 3.2 PCB Layouts Figure 3-3. Top Layer Figure 3-4. Power Plane 1 PCM1841-Q1 Evaluation Module SBAU460 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Hardware Design Files Figure 3-5. Power Plane 2 Figure 3-6. Bottom Layer SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 Terminal Block, 3.5mm Pitch, 4x1, On-Shore J1, J2, J3, J4 14x8.2x6.5mm ED555/4DS Technology J5, J13, J17, Header, 100mil, 3x1, Gold, TH 3x1 Header TSW-103-07-G-S Samtec J18, J20, J21 PCM1841-Q1 Evaluation Module SBAU460 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 Switch, Tactile, SPST-NO, 0.05A, Switch, 4.4x2x2.9 mm TL1015AF160QG E-Switch 12V, SMT Black Multipurpose TP9, TP10 Test Point, Multipurpose, Black, TH 5011 Keystone Test point SBAU460 – APRIL 2024 PCM1841-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Keystone TP12, TP13, point TP14, TP15, TP16, TP17 TP19, TP20, Green Miniature Test TP21, TP22, Test Point, Miniature, Green, TH 5116 Keystone point TP25 PCM1841-Q1 Evaluation Module SBAU460 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13: Additional Information

    Additional Information 4 Additional Information 4.1 Trademarks Burr-Brown ™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. 5 Related Documentation • Texas Instruments, PCM1841-Q1 Quad Channel, 32-Bit, 192kHz, Burr-Brown Audio ADC data sheet •...
