www.ti.com
User's Guide
PCM1802EVM and PCM1803AEVM Evaluation Module
This user's guide describes the function and use of the PCM1802EVM and PCM1803AEVM. This document
includes the hardware configuration instructions, a quick-start guide, jumper and connector descriptions,
schematics, and printed-circuit board (PCB) layout that demonstrate TI's recommended practices for these
devices.
1
Trademarks..............................................................................................................................................................................1
2
Introduction.............................................................................................................................................................................2
3 Power Supply..........................................................................................................................................................................
Configuration.........................................................................................................................................................3
EVM........................................................................................................................................................5
5.1 PCM1802EVM and PCM1803AEVM Inputs......................................................................................................................
5.2 PCM1802EVM and PCM1803AEVM Output.....................................................................................................................
6 Switching Between the PCM1802EVM and PCM1803AEVM...............................................................................................
Layout...........................................................................................................................................................................6
Materials.............................................................................................................................................7
8.1 Schematic..........................................................................................................................................................................
Materials.................................................................................................................................................................10
Documentation........................................................................................................................................................14

1 Trademarks

All trademarks are the property of their respective owners.
SBAU384 - JULY 2021
Submit Document Feedback
ABSTRACT

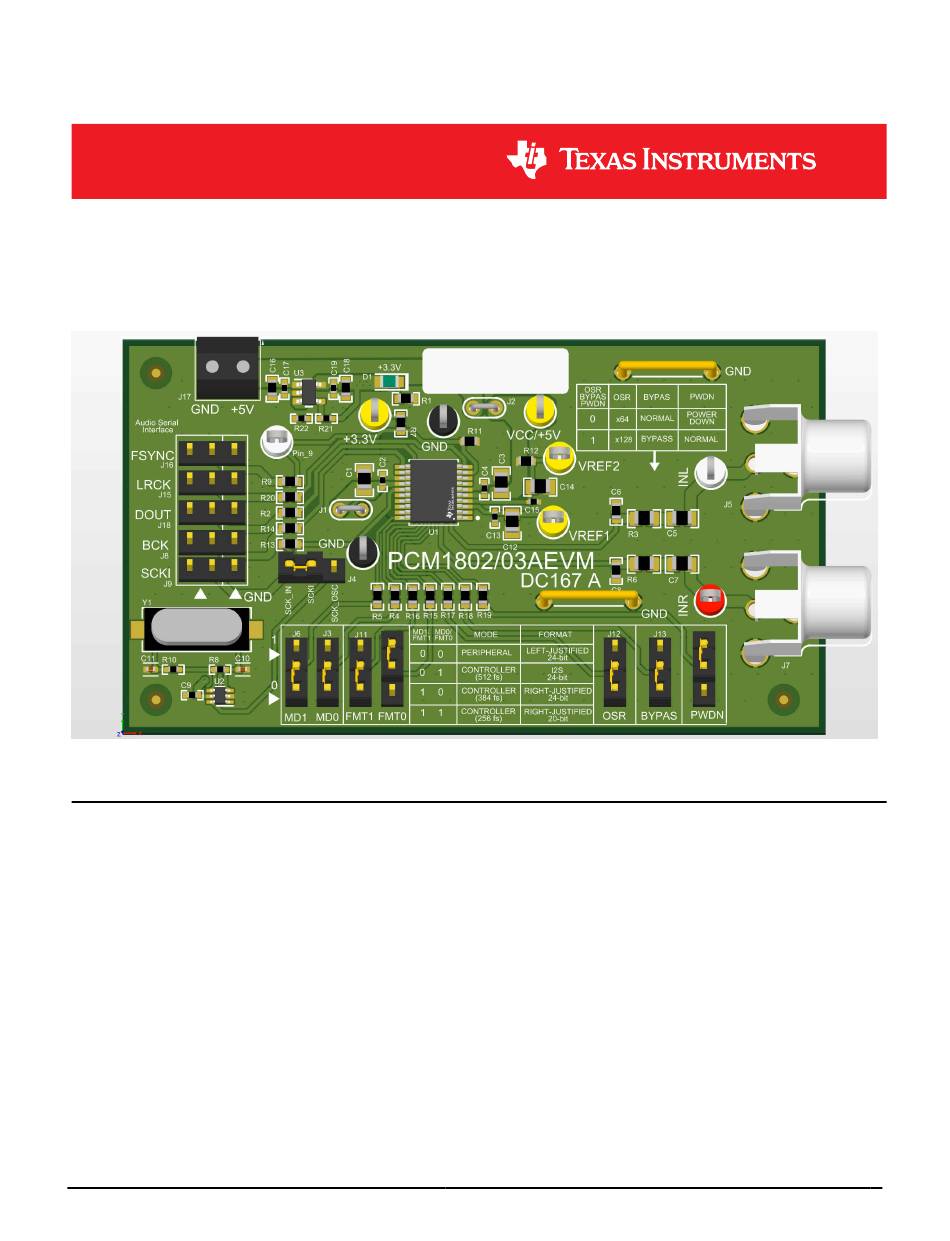

Figure 1-1. PCM1802EVM and PCM1803AEVM

Table of Contents

Copyright © 2021 Texas Instruments Incorporated
PCM1802EVM and PCM1803AEVM Evaluation Module
Table of Contents
2
5
5
5
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM1802EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments PCM1802EVM

  • Page 1: Table Of Contents

    PCM1802EVM and PCM1803AEVM Evaluation Module ABSTRACT This user's guide describes the function and use of the PCM1802EVM and PCM1803AEVM. This document includes the hardware configuration instructions, a quick-start guide, jumper and connector descriptions, schematics, and printed-circuit board (PCB) layout that demonstrate TI's recommended practices for these devices.
  • Page 2: Introduction

    S, right-justified (RJ), and left-justified (LJ) formats. 3 Power Supply The PCM1802EVM and PCM1803AEVM are powered with a single 5-V power supply connected to J17. An onboard low-dropout regulator converts the 5-V supply to the 3.3-V rail used by the ADC. The analog supply, VCC, is fixed at 5 V and the digital supply, VDD, is fixed at 3.3 V.
  • Page 3: Hardware Configuration

    32-BCK per frame format. Although BCK and LRCK are no longer derived from SCKI in peripheral mode, a valid SCKI is still required for operation. Table 4-1. PCM1802EVM and PCM1803AEVM Headers and Jumpers Designator Function...
  • Page 4 In addition, the SCKI signal can be sourced from an onboard oscillator or provided externally at J9. J4 selects the SCKI clock source (SCK_OSC) or externally from J9 (SCK_IN) by changing the position of J4 as shown in Table 4-7. Table 4-7. PCM1802EVM and PCM1803AEVM SCK Source Select Shunt Position SCK Source Select Pins 1-2...
  • Page 5: Interfacing With The Evm

    1.69-Hz and 0.84-Hz for the PCM1802EVM and PCM1803AEVM, respectively. 5.2 PCM1802EVM and PCM1803AEVM Output The digital I/O of the PCM1802EVM and PCM1803AEVM are provided by J8, J9, J15, J16, and J18; the functions are outlined in Table 4-1.
  • Page 6: Board Layout

    Figure 7-1 Figure 7-4 illustrate the EVM board layout. Figure 7-1. PCM1802EVM and PCM1803AEVM Top Layer Figure 7-2. PCM1802EVM and PCM1803AEVM Power Plane 1 PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 7: Schematic And Bill Of Materials

    Schematic and Bill of Materials Figure 7-3. PCM1802EVM and PCM1803AEVM Power Plane 2 Figure 7-4. PCM1802EVM and PCM1803AEVM Bottom Layer 8 Schematic and Bill of Materials This section contains the EVM schematics and bill of materials. SBAU384 – JULY 2021...
  • Page 8: Schematic

    Schematic and Bill of Materials www.ti.com 8.1 Schematic Figure 8-1 Figure 8-2 illustrate the EVM schematics for the PCM1802EVM and PCM1803AEVM, respectively. POWER LED +3.3V PCM1802EVMDC167A VCC/+5V +3.3V Green Main Schematics 10 F µ 0.1uF 10 F µ 0.1uF Power Ready...
  • Page 9 TPS73601DBVR Power-down mode Normal operation mode TP11 CLOCK SOURCE HEADERS POWER OSCOPE GND CLIP BAR Figure 8-2. PCM1803AEVM (DC167-002) Main Schematic Page SBAU384 – JULY 2021 PCM1802EVM and PCM1803AEVM Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 10: Bill Of Materials

    Schematic and Bill of Materials www.ti.com 8.2 Bill of Materials Table 8-1 Table 8-2 list the bill of materials (BOM) for the PCM1802EVM and PCM1803AEVM, respectively. Table 8-1. PCM1802EVM (DC167-001) Bill of Materials Designator Quantity Value Description Package Reference Part Number...
  • Page 11 Schematic and Bill of Materials Table 8-1. PCM1802EVM (DC167-001) Bill of Materials (continued) Designator Quantity Value Description Package Reference Part Number Manufacturer 52.3k RES, 52.3 k, 1%, 0.063 W, AEC-Q200 Grade 0, CRCW040252K3FKED Vishay-Dale 0402 30.1k RES, 30.1 k, 1%, 0.063 W, AEC-Q200 Grade 0,...
  • Page 12 RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 ERJ-3GEY0R00V Panasonic 52.3k RES, 52.3 k, 1%, 0.063 W, AEC-Q200 Grade 0, CRCW040252K3FKED Vishay-Dale 0402 PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 13 Fiducial mark. There is nothing to buy or mount. 10.0k RES, 10.0 k, 1%, 0.1 W, AEC-Q200 Grade 0, CRCW060310K0FKEA Vishay-Dale 0603 RES, 47.0, 1%, 0.1 W, 0603 RC0603FR-0747RL Yageo SBAU384 – JULY 2021 PCM1802EVM and PCM1803AEVM Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 14: Related Documentation

    PCM1802 Single-Ended Analog-Input 24-Bit, 96-kHz Stereo A/D Converter data sheet 2. Texas Instruments, PCM1803A Single-Ended, Analog-Input 24-Bit, 96-kHz Stereo A/D Converter data sheet PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 15 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 16 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 17 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 18 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
  • Page 20 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
