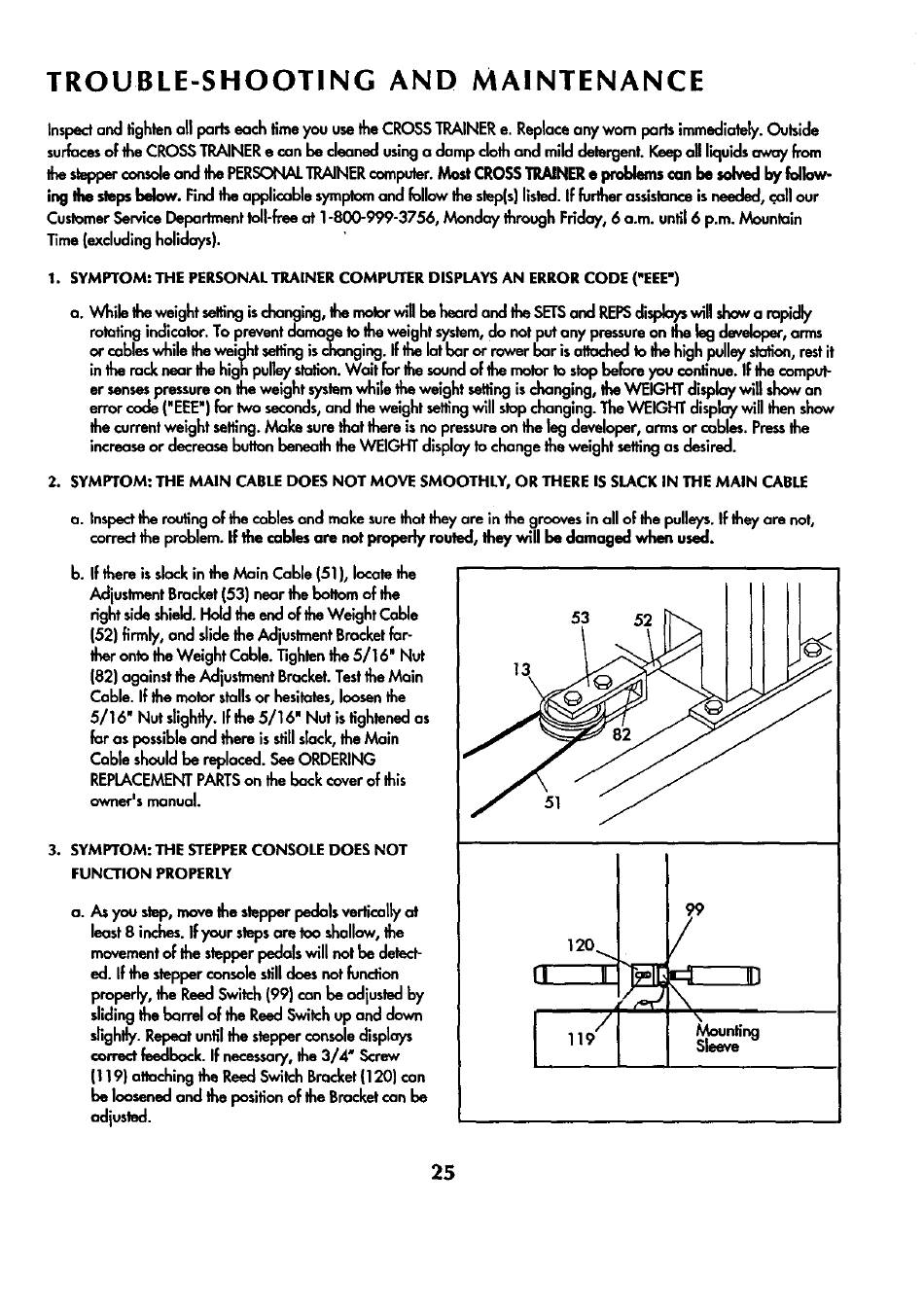

TROUBLE-SHOOTING AND MAINTENANCE
inspectand tighten all parts each time you usethe CROSS TRAINER e. Replace any worn parts immediately. Outside
surfaces of the CROSS TRAINER • can be cleaned using a damp cloth and mild detergent. Keep all liquidsaway from
Ihe stepper consoleand the PERSONALTRAINERcomputer.Most CROSSTRAINER• problems can be solved by follow-
ing Itm stepsbelow. Find the applicable symptomand follow the step(s) listed. If further assistanceis needed, .callour
CustomerService Deporlment tall-free at 1-800"999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays).
1. SYMPTOM: THE PERSONAL TRAINER COMPUTER DISPLAYS AN ERROR CODE ("EEE")
a. While theweight sefllngischanging, _ motorwill be heard and the SETSand PEPSdisplayswill show a rapidly
rotating indicator. To prevent damage ta.the weight system,do not put any pressurean the leg developer,arms
or cableswhile the weight settingis cbanglng. If the lat bar or rawer bar is attached to the high pulley station,restit
in the rack near the high pulley station.Wait for the soundof the motor to stop before you continue. IFthe comput-
er sensespressure on the weight systemwhile the weight settingis changing, the WEIGHT display will show an
error code ("EEE') for two seconds,and the weight settlng will stopchanging. The WEIGHT display will then show
the current weight setting. Make sure that there is no pressureon the leg developer, arms or cables. Pressthe
increaseor decrease buttan beneath the WEIGHT display to change the weight seltingas desired.
2. SYMPTOM: THE MAIN CABLE DOES NOT MOVE SMOOTHLY, OR THERE IS SLACK IN THE MAIN CABLE
a. Inspectthe routingof the cables and make sure that they are in the grooves in all of the pulleys.If they are not,
correctthe problem. If the cables are not properly routed, they will be damaged when used.
b. If there is slack in the Main Cable (51), locate the
AdjustmentBracket(53) near the bottom of the
right side shield.Hold the end of theWeight Cable
{52) firmly, and slide the AdjustmentBracket far-
ther onto the Weight Cable. Tightenthe 5/16" Nut
(82) against the AdjustmentBracket.Testt_ Main
Cable. If the motar stalls or hesitates,loosen the
5/16" Nut slightly. If the 5/16" Nut is tightened as
far as possibleand there is stillslack, the Main
Cable shouldbe replaced. See ORDERING
REPLACEMENTPARTSan the back cover of this
_*Tl_l S monuol.
3. SYMPTOM: THE STEPPER CONSOLE DOES NOT
FUNCTION PROPERLY
a. youstep, m ove thestepper pedals vertically a t
least8 inches. If your stepsare too shallow, the
movementof the stepperpedals will not be detect-
ed. If the stepper consolestilldoes not function
properly, the Reed Switch (99) can be
adjusted
b y
sliding the barrel of the Reed Switch up and down
slightly. Repeat until the stepperconsole displays
correct feedback. If necessary,the 3/4' Screw
(119) at_:hing the Reed Switch Bracket (120) can
be loosenedand the position oFthe Bracketcan be
adjusted.
53 52
S
/
119
99
/
\
/V_ounting
eeve
25
