ADDAC309 Assembly Guide
STEP 5:

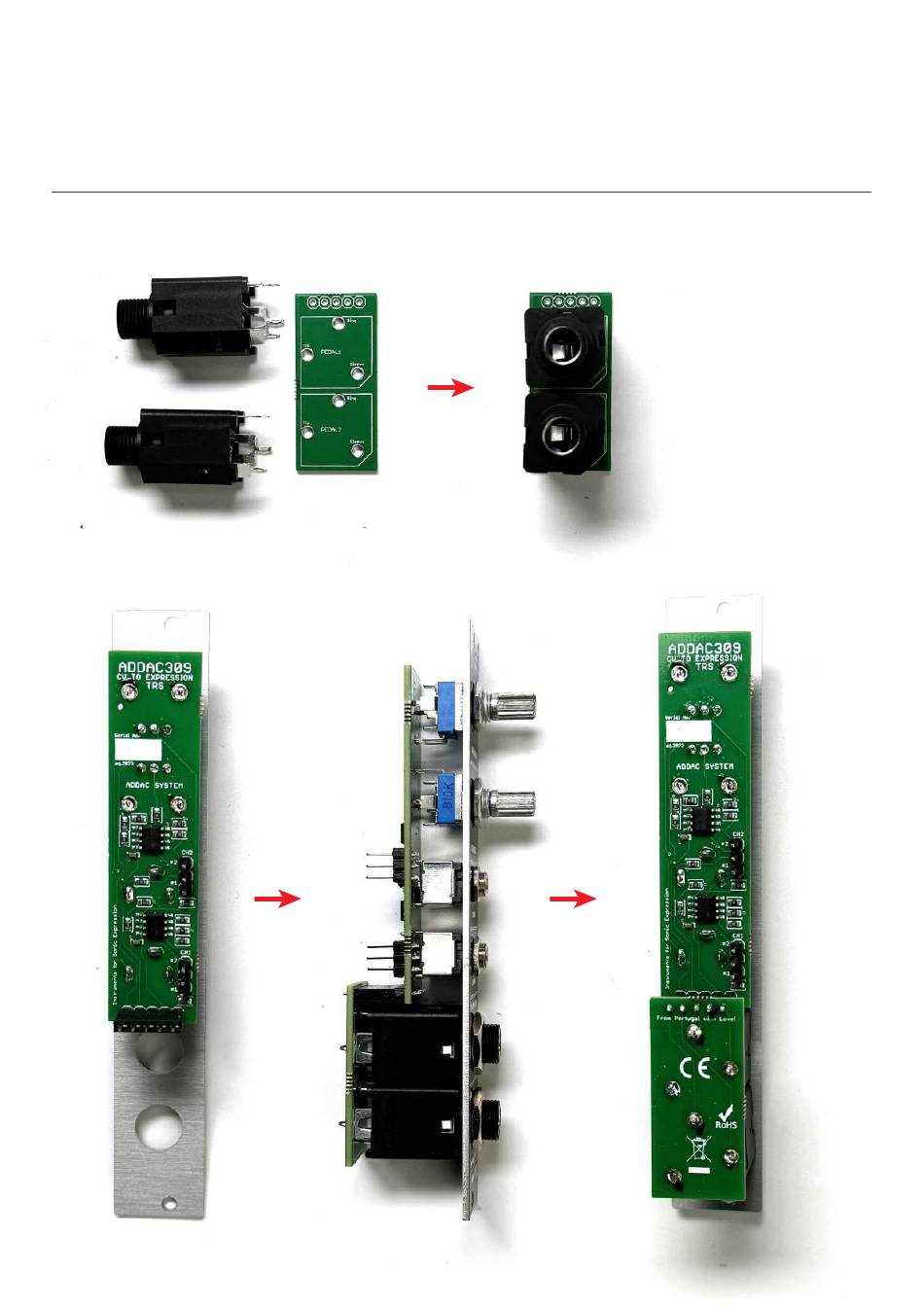

Place the 1/4'' jacks into the small pcb
STEP 6:
Attach the small pcb to the panel and pinheader, tighten the 1/4'' jack nuts and solder all remaining
pads.
