ADDAC309 Assembly Guide
STEP 1:

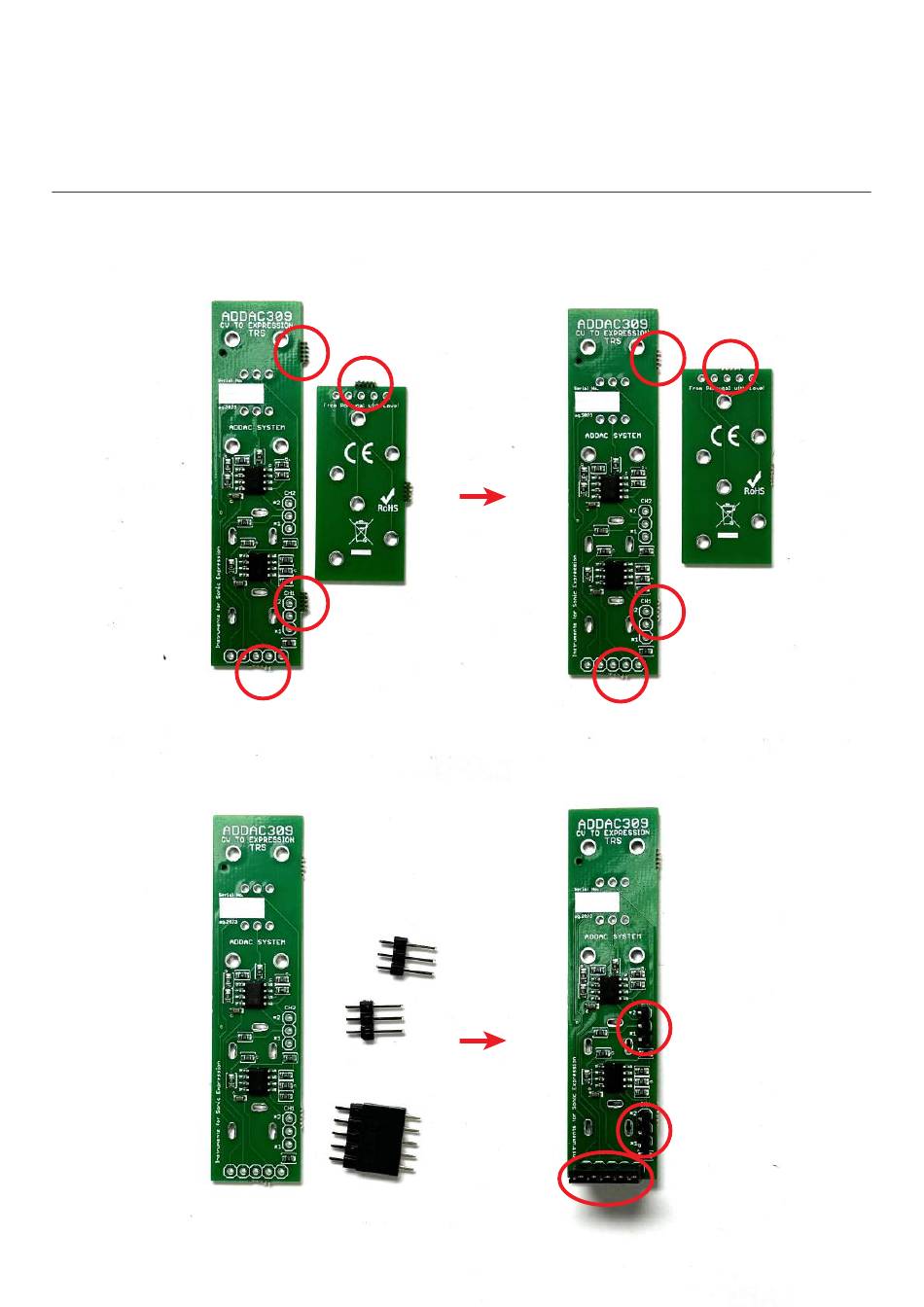

First let's split the pcbs and trim their edges flush with some cutter.
STEP 2:
Locate and solder the pinheaders like shown below..
ADDAC SYSTEM
page 3
