ADDAC309 Assembly Guide

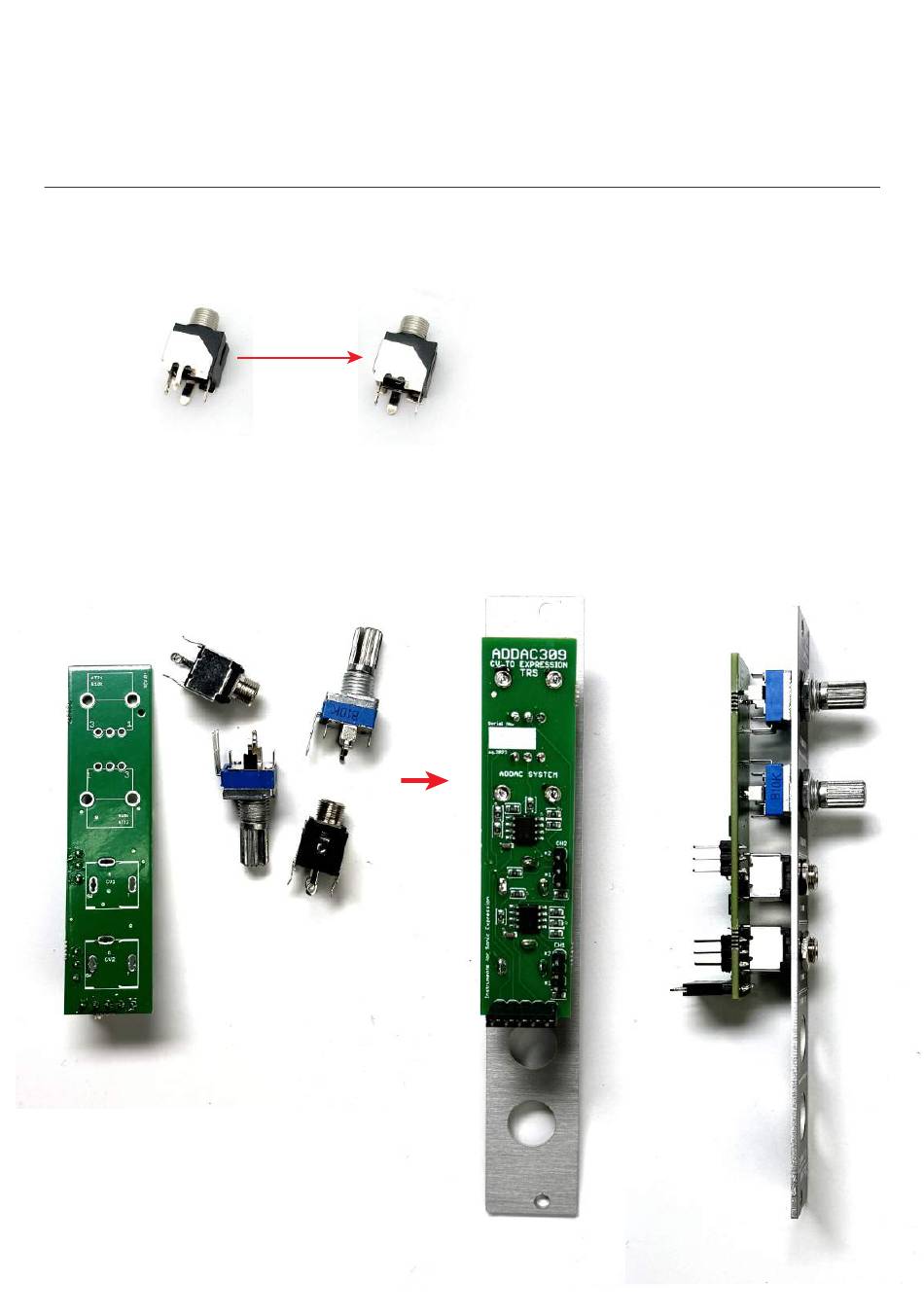

STEP 3:
Locate the 3.5mm jacks and cut the thinest leg like shown below.
STEP 4:
Proceed by placing the jacks and potentiometers on the pcb followed by placing the panel and tighten
the nuts.
Notice the pcb is kept parallel to the panel, knobs are slightly raised to achieve this.
After the allignment is achived solder all parts.
