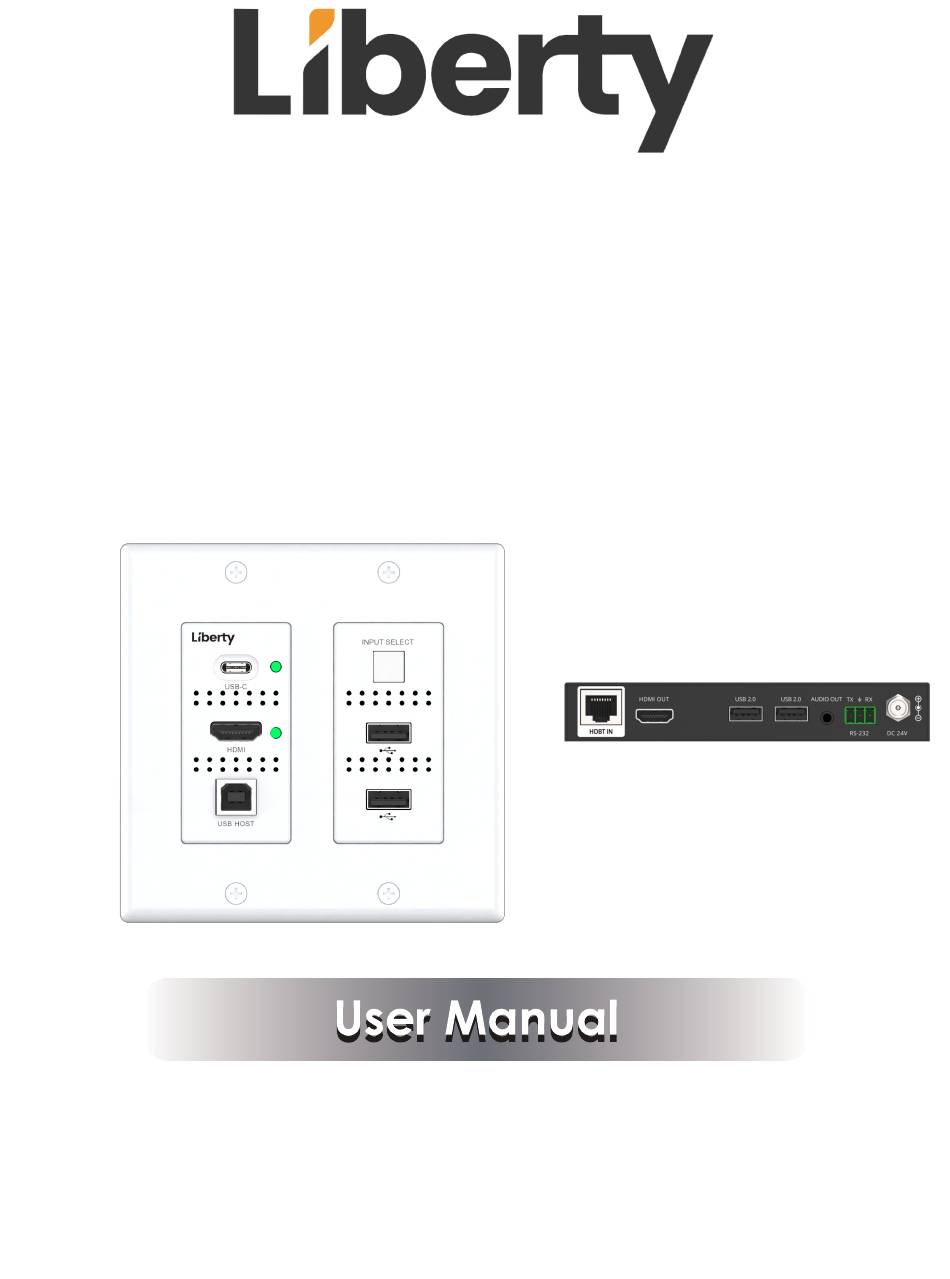

- Page 1 DL-1H1A1UCWP-H3 Owners Manual Digitalinx Series Uncompressed 4K60 HDMI / USB-B + USB-C Auto- Switching Wall Plate extension set over HDBaseT 3.0 800.530.8998 www. Libav.co...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This wall plate extension set is based on HDBaseT 3.0 VS300R, with a standard US 2GANG Decora design. Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or 131ft/40m for 4K@60Hz over a single CAT6A/7 (F/FTP) cable as well as power and USB2.0 data. -
Page 4: Package Contents
3. Package Contents ① 1x HDMI + USB-C Wall Plate Transmitter ② 1x HDBaseT Receiver ③ 1x Faceplate ④ 1x 2pin-3.81mm Phoenix Connector (male) ⑤ 2x 3pin-3.81mm Phoenix Connector (male) ⑥ 1x 24V/2.7A Desktop Power Supply with 2pin-3.81mm Male Phoenix Connector (for TX) ⑦... - Page 5 Connection Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C, 24-pin female] Output: 1 x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x F/W [Micro USB, 5-pin female] 1 x USB HOST [USB Type B, 4-pin female] 2 x USB Devices [USB Type A, 4-pin female] Input:...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel USB-C INPUT SELECT HDMI HDBT OUT USB HOST 11 12 Name Function Description USB-C port with following three functions: (1) USB-C video signal input port, connected to source device. (2) USB-C HOST port. When the USB-C port of TX is selected as the video signal input channel, the USB-C port can be used as a USB 2.0 signal transmission port simultaneously. - Page 7 Name Function Description HDMI port: HDMI signal input port, connected to HDMI source HDMI port device. When the HDMI port of TX is selected as the input channel, & LED the USB 2.0 signal can only be output through the USB HOST port. (Green) HDMI LED: When the HDMI port of TX is selected as the input channel, the HDMI LED will be on.
-
Page 8: Receiver Panel
5.2 Receiver Panel Name Function Description Red LED indicates that the Receiver is powered on. Power LED ▪ Light on: Transmitter and Receiver are in good connection status. LINK LED ▪ Light flashing: Transmitter and Receiver are in in poor connection status. -
Page 9: Dimensions Of The Wall Plate
Name Function Description RS-232 serial port with following two functions: (1) Pass through external serial port commands to the RS-232 port RS-232 port of the HDBaseT Receiver. (2) Receive API commands to control the wall plate. DC 24V Power input port, connected to DC 24V/1A power supply. 6. -
Page 10: Api Commands
7. API Commands The product also supports API commands control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable, or connect the . Then, open a serial F/W port of the product to a PC with a Micro USB cable command tool on PC to send ASCII commands to control the product. - Page 11 Default Command Code Function Description Example Feedback Set TX auto-switching mode 1: signal SetTxAuto SetTxAuto TxAutoSwitchMode 1 x = 0: 5V detection detection SwitchMode x SwitchMode 1 1: signal detection GetTxAuto Get TX auto-switching GetTxAuto SwitchMode mode status SwitchMode Set RX downscaling mode, AUTO: automatically SetRxDown SetRxDown...
-
Page 12: Application Example
Command Code Function Description Example Feedback Default Get input ports EDID GetEdid x GetEdid USBC x = USBC, HDMI USBC EDID Get input ports EDID data GetEdidData GetEdidData x <00 FF FF FF….> x = USBC, HDMI USBC Set user defined EDID x = 1 (User Defined 1) SetUserEdid 1 SetUserEdid x...
