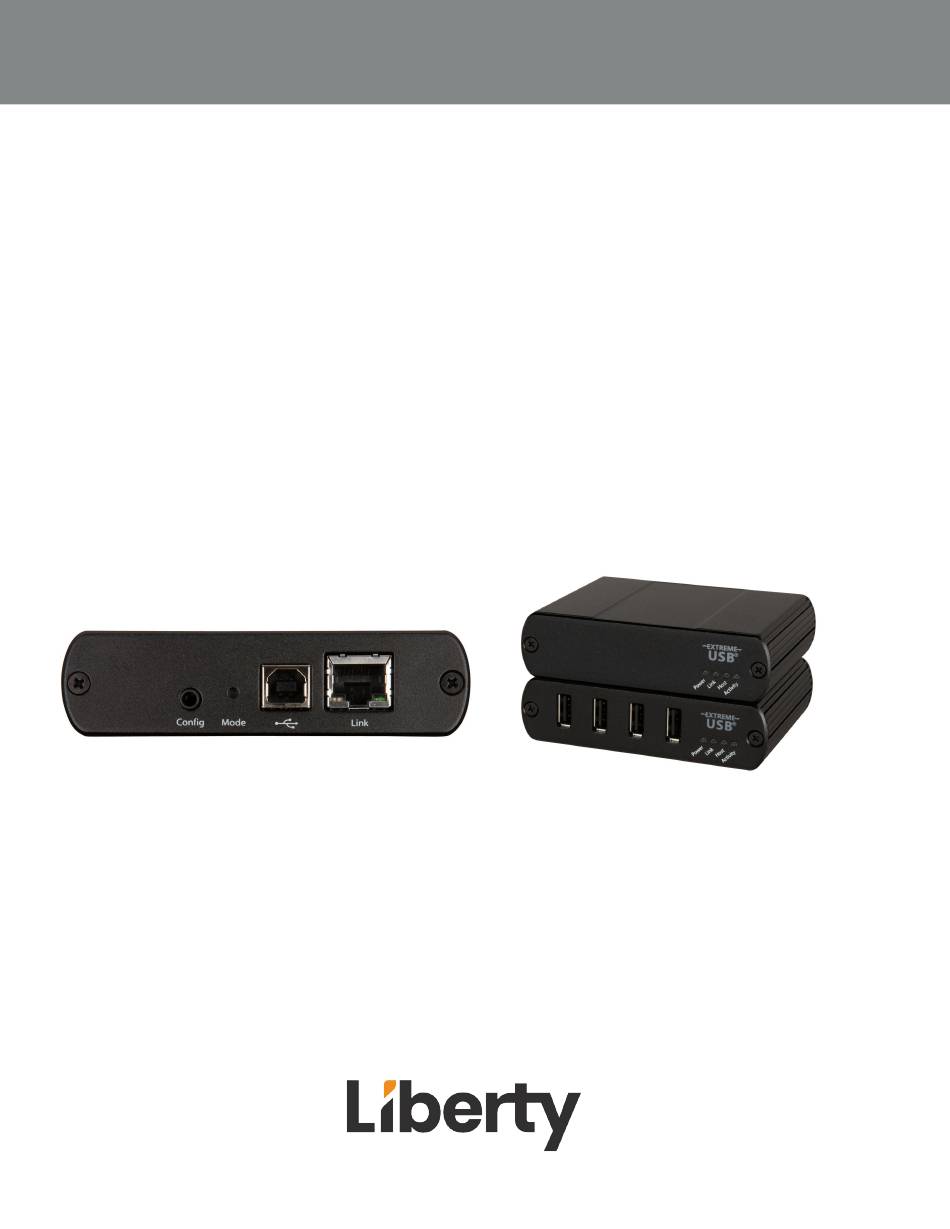

- Page 1 USER MANUAL IPEX-USB2-H/-C Owners Manual DigiIP Series USB 2.0 High Speed over IP. Fully routable USB over IP with Isochronous data Support www.libav.com 800.530.8998...
- Page 2 PRODUCT OVERVIEW The DigiIP IPEX-USB2 allows users to extend USB beyond the standard 5m cable limit for USB 2.0 devices. The IPEX-USB2 is composed of 2 units the IPEX-USB2-C is for USB devices and the IPEX-USB2-H is for host devices. No software drivers are needed for the IPEX-USB2 units. IPEX-USB2-H does not need power as it receives power from the host.
- Page 3 IPEX-USB2-H PRODUCT BREAKDOWN 1. Power LED (Blue) :When the blue power LED is on the IPEX-USB2-H has power. When the LED is off no power is supplied by the host computer. 2. Link LED (Green) : LED is on when link between host and client is established. LED is off when no link is made between host and client.
- Page 4 IPEX-USB2-C PRODUCT BREAKDOWN 1. USB Device Ports: Accepts Type A connections to UB devices. 2. Power LED (Blue) :When the blue power LED is on the IPEX-USB2-H has power. When the LED is off no power is supplied by the host computer. 3.
- Page 5 PAIRING HOST AND CLIENT 1. Ensure the Host and Client units are connected directly to each other, or connected to the same subnet on the network switch 2. Press and hold the Mode button on the back of the Host unit. Release the button within 10 seconds.
- Page 6 TECHNICAL SPECIFICATIONS Model IPEX-USB2 Physical Parameter Case Material Client: Industrial-grade metal chassis with metal brackets Host: Industrial-grade metal chassis with metal brackets Dimensions Host: 100mm [W] x 76mm [D] x 26mm [H] Client: 100mm [W] x 76mm [D] x 26mm [H] Weight Host: 181g Receiver: 181g...
- Page 7 Thank you for your purchase. For technical support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998 OWNERS MANUAL IPEX-USB2...
