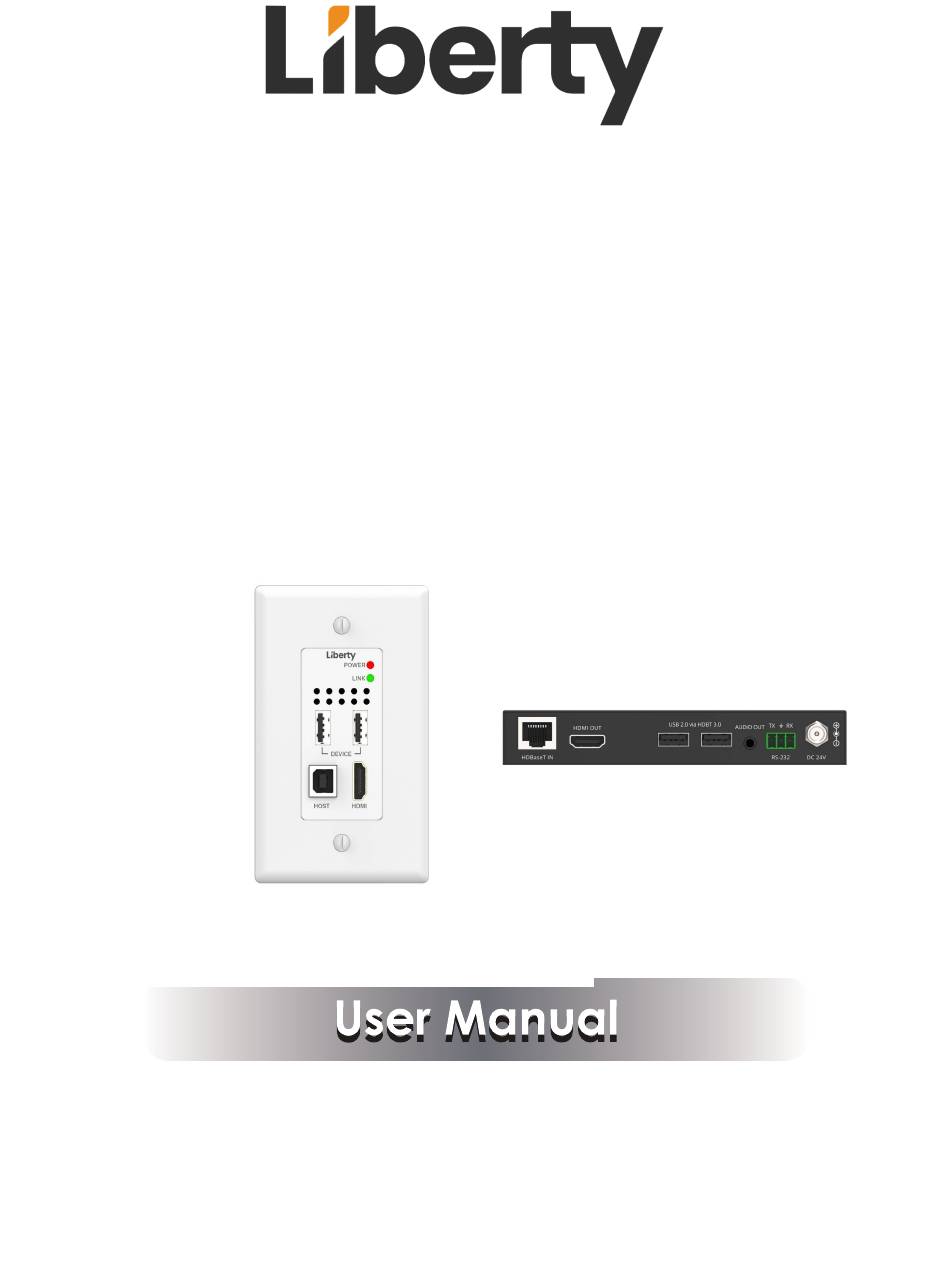

- Page 1 DL-1H1A1UWP-H3 Owners Manual Digitalinx Series Uncompressed 4K60 HDMI & USB 2.0 over HDBaseT 3.0 Wall Plate Extension Set www.Libav.com 800.530.8998...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This wall plate extension set is based on HDBaseT 3.0 VS300R, with a standard US 1GANG Decora design. Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or 131ft/40m for 4K@60Hz over a single CAT6A/7 (F/FTP) cable. The transmitter features 1x HDMI input, 1x USB-B host and 2x USB-A client ports. -
Page 4: Package Contents
3. Package Contents ① 1x HDMI Wall Plate Transmitter ② 1x HDBaseT Receiver ③ 1x Faceplate ④ 1x 2pin-3.81mm Phoenix Connector (male) ⑤ 2x 3pin-3.81mm Phoenix Connector (male) ⑥ 1x 24V/1A Wall-mount Multinational Locking Power Supply ⑦ 2x American Standard Slotted Semi-countersunk Head Screws (6#-32) ⑧... - Page 5 Connection Input: 1 x HDMI IN [Type A, 19-pin female] Output: 1 x HDBT OUT [RJ45, 8-pin female] Control: 1 x RS-232 [3pin-3.81mm phoenix connector] Transmitter 1 x F/W [Micro USB, 5-pin female] 1 x USB HOST [USB Type B, 4-pin female] 2 x USB DEVICE [USB Type A, 4-pin female] Input: 1 x HDBT IN [RJ45, 8-pin female]...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter HOST HDMI HDBT OUT DEVICE Name Function Description When the Wall Plate is powered on, the green power LED is on. Power LED When there is HDMI signal input, the green HDMI LED is on. HDMI LED USB HOST USB HOST port, connected to PC for extending the USB ports of... -
Page 7: Receiver Panel
Name Function Description ▪ Light on: Transmitter and Receiver are in good connection status. Link Signal ▪ Light flashing: Transmitter and Receiver are in poor connection Indicator status. (Green) ▪ Light off: Transmitter and Receiver are not connected. ▪ Light on: There is video signal transmission with HDCP encryption. Data Signal ▪... - Page 8 Name Function Description Red LED indicates that the Receiver is powered on. Power LED ▪ Light on: Transmitter and Receiver are in good connection status. LINK LED ▪ Light flashing: Transmitter and Receiver are in in poor connection (Green) status. ▪...
-
Page 9: Dimensions Of The Wall Plate
6. Dimensions of the Wall Plate Front Panel Left Side Panel Right Side Panel Unit: mm 7 / 10... -
Page 10: Api Commands
7. API Commands The product also supports API commands control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable, or connect the . Then, open a serial F/W port of the product to a PC with a Micro USB cable command tool on PC to send ASCII commands to control the product. - Page 11 Default Command Code Function Description Example Feedback Enable/Disable RX SetRxAudio SetRxAudio de-embedding audio mute RxAudioMute ON Mute x Mute ON x = ON, OFF GetRxAudioMute Get RX de-embedding GetRxAudioMute OFF audio mute status Set input port EDID x = HDMI 00 - EDID dipswitch (default) 01 - 1920x1080@60 8bit...
-
Page 12: Application Example
8. Application Example Computer Host PC or USB Camera Control System Transmitter CAT6A/7 Cable HOST HDMI Receiver DEVICE Power Supply Flash Speakers Disk Laptop TV or Monitor Keyboard 10 / 10...
