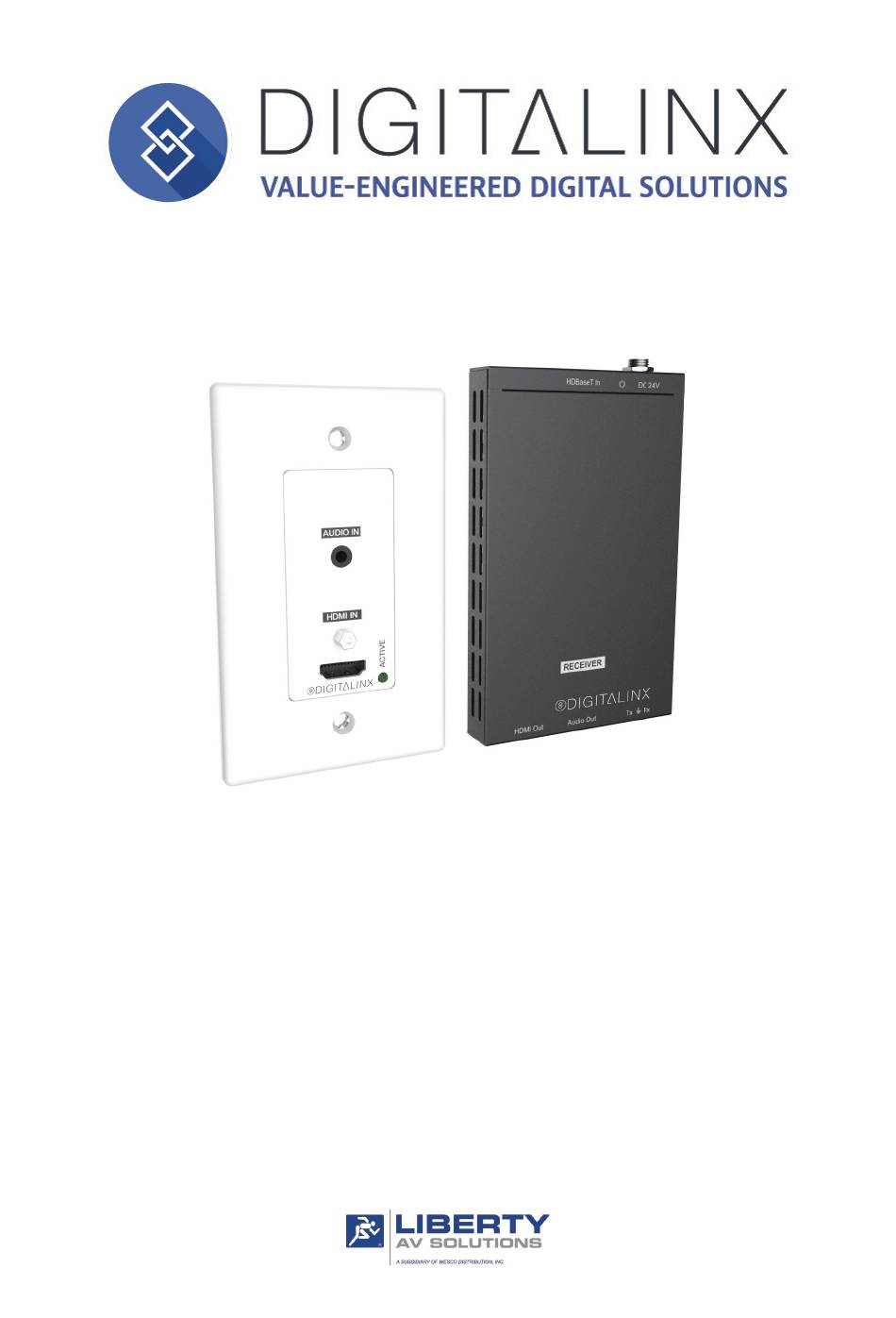

- Page 1 DL-1H1A-WPKT-W Install Guide Rev 180529 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
-
Page 3: Product Overview

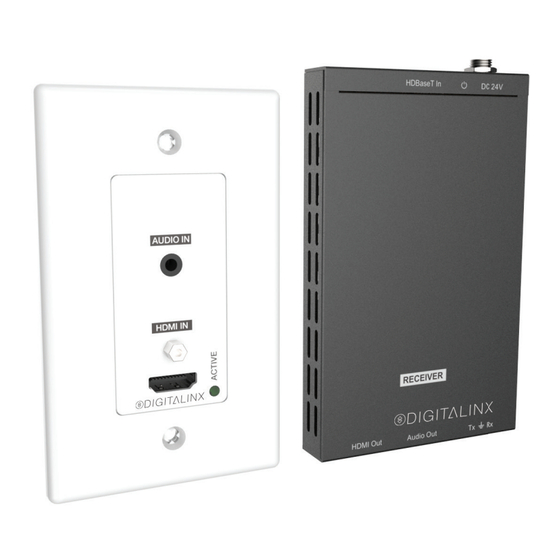

HDMI input source to be acti ve. The Digitalinx DL-1H1A-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through. The DL-1H1A-WPKT-W HDBaseT receiver powers wall plate transmitt er via HDBaseT so there is no need for an external power supply for the wall plate. -
Page 4: Transmitt Er / Receiver View
DL-1H1A-WPKT-W Install Guide Transmitt er / Receiver View Transmitt er 1. HDMI IN - Video source input 2. ACTIVE LED • When LED is green, unit is received acti ve HDMI signal • When LED is off , no acti ve HDMI signal is present 3. - Page 5 DL-1H1A-WPKT-W Install Guide Connecti vity Instructi ons 1. Verify all components included with the extender set are present before installati on. 2. If the extenders are going to be permanently mounted to a surface, att ach the included mounti ng brackets with the supplied screws. 3.
-
Page 6: Cabling Requirements
HDBaseT reliably. When using shielded category cabling ALWAYS..use shielded connectors ..properly ground the category cable For opti mized HDBaseT performance use the following Liberty Wire and Cable branded cabling; Category 6 plenum; 24-4P-P-L6SH Category 6A plenum; 24-4P-P-L6ASH Category 6 NON-plenum;... -
Page 7: Technical Specifications
DL-1H1A-WPKT-W Install Guide Technical Specifi cati ons VIDEO Video Inputs (TX) (1) HDMI Video Input Connector (TX) (1) HDMI type A Input Video Signal HDMI Video Output (RX) (1) HDMI Video Output Connector (RX) (1) HDMI type A Output Video Signal HDMI Input Resoluti ons Supported Up to 3840 x 2160 @ 60Hz, 4:2:0, 8bit color depth... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
