Summary of Contents for Liberty DigitaLinx DL-HDR-H2

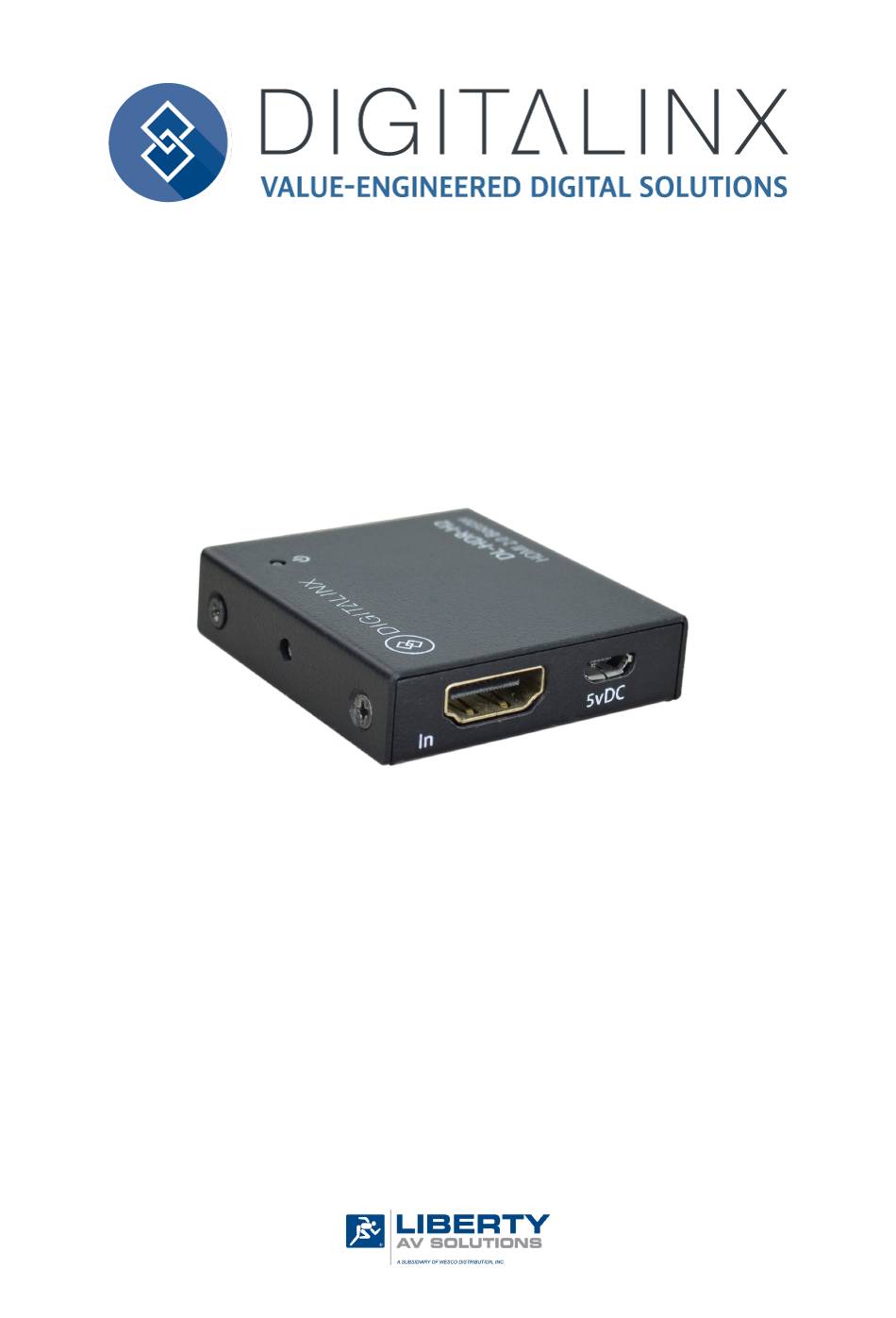

- Page 1 DL-HDR-H2 Quick Install Guide Rev 181220 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
-
Page 3: Product Overview
DL-HDR-H2 Quick Guide Product Overview The DigitaLinx DL-HDR-H2 is an HDMI 2.0b booster / equalizer designed to extend HDMI signals up to 4k@60Hz / 4:4:4 / 8 bit color up to 20 meters / 66 feet. The DL-HDR-H2 supports HDMI 2.0b and HDCP 2.2 encryption. -
Page 4: Front And Back View
DL-HDR-H2 Quick Guide Front and Back View FRONT BACK 1. HDMI IN - HDMI input port for connection to HDMI video source 2. 5VDC - Micro USB B power supply port 3. HDMI OUT - HDMI output port for connection to display Connectivity Instructions 1. -
Page 5: Wiring Diagram
DL-HDR-H2 Quick Guide Wiring Diagram Media Player 4K@60Hz: 10m / 33’ max 4K@30Hz: 20m / 66 max 1080p: 20m / 66’ max FRONT HDMI BACK 4K@60Hz: 10m / 33’ max 4K@30Hz: 15m / 50’ max 1080p: 30m / 100’ max Display... -
Page 6: Technical Specifications
DL-HDR-H2 Quick Guide Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0b, HDCP2.2 Input / Output Resolution Support Up to 4096x2160@60Hz (4:4:4 chroma sub-sampling / 8 bit deep color) System Characteristics / Cabling Requirements Maximum Distance (Input) 4K@60Hz 4:4:4 (~17-18Gbps): 10 meters / 33 feet 4K@30Hz 4:4:4 (~10Gbps): 20 meters / 66 feet 1080p (4.9Gbps): 20 meters / 66 feet Maximum Distance (Output) - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
