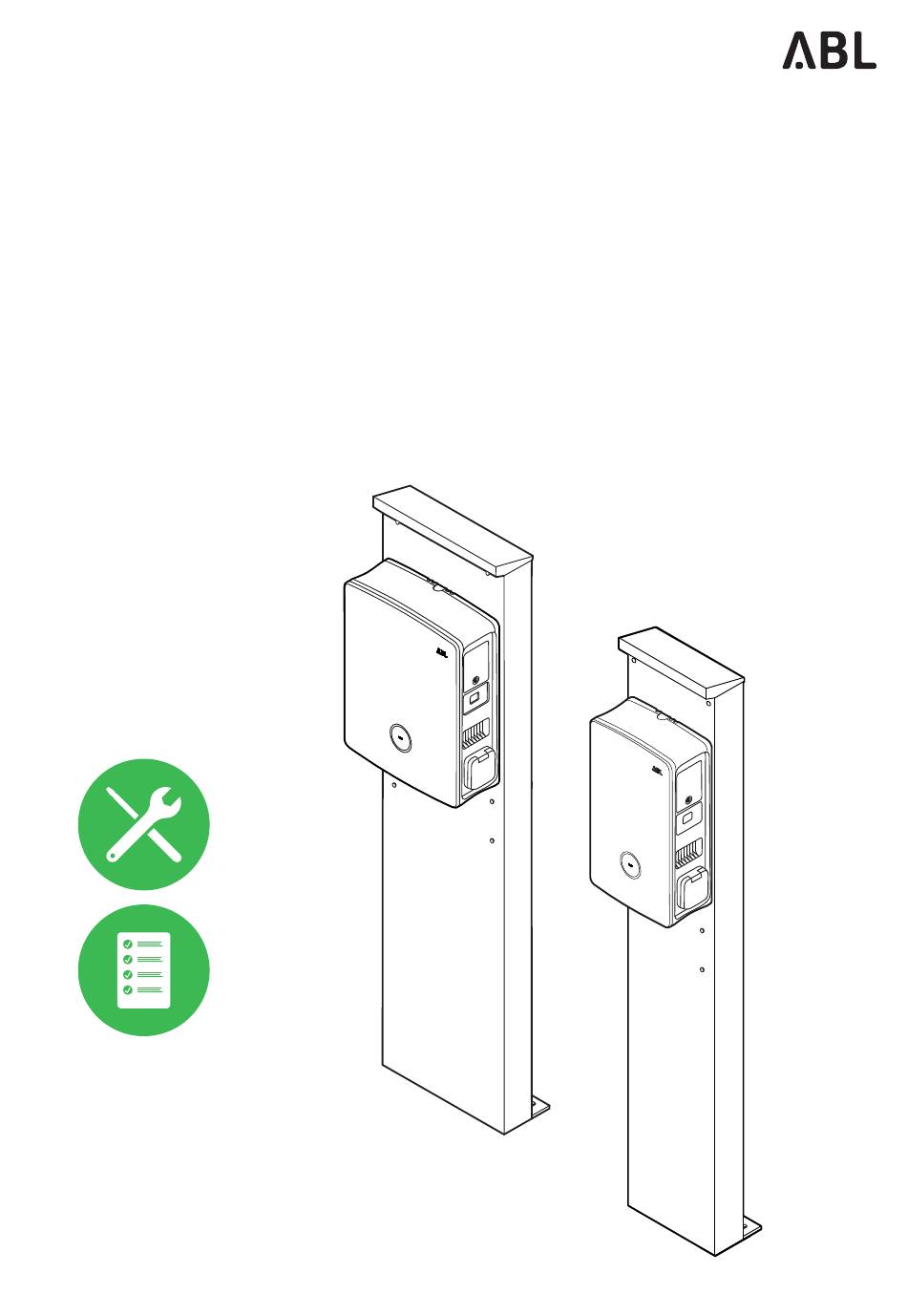

- Page 1 POLEM4 Single POLEM4 Twin Installation manual Article No.: 0301696_EN_a...
-
Page 2: Contact
NOTE Please note that the wallboxes shown on the cover sheet are not included with the POLEM4 Single and POLEM4 Twin, but can be ordered separately for a fee. Contact ABL GmbH Albert-Büttner-Straße 11 91207 Lauf / Pegnitz Germany +49 (0) 9123 188-0 info@abl.de... -
Page 3: Table Of Contents
Contents Contact Additional technical information Intended use Information in this document Important information General Safety instructions User information Introduction to the POLEM4 Single, POLEM4 Twin and the EMH9999 Identification of the mounting pole Items supplied Compatibility of the mounting poles Dimensional drawings and dimensions Accessories Installation Requirements for the installation site... -
Page 4: Additional Technical Information
POLEM4 Twin can be installed on the separately available EMH9999 concrete foundation or on a self-constructed concrete foundation. To protect the installed wallbox from the weather, ABL offers the compatible WPR36 weather shield. For cable manage- ment at the charging point, the CABHOLD cable holder with charging plug receptacle can retrofitted. -
Page 5: Important Information
Please read this manual carefully. x Heed all warnings and follow all instructions. x Only use accessories intended and sold for the product by ABL. x Do not install this device in close vicinity to running water, water jets or areas subject to flooding. -
Page 6: User Information
edge of the relevant standards, is able to assess and carry out the working steps described in this manual and recognise potential hazards. x In case of installation faults, or malfunctions that can be traced back to faulty installation, always contact the contractor who carried out the installation first. -
Page 7: Introduction To The Polem4 Single, Polem4 Twin And The Emh9999
Thank you very much for choosing the POLEM4 Single / POLEM4 Twin mounting pole from ABL! The POLEM4 Single / POLEM4 Twin is used for mounting an eM4 Single / eM4 Twin Wallbox from ABL. With their internal terminal block, the mounting poles make it particularly quick and easy to connect the charging station to the local power grid. Access is via a rear housing door, which protects the interior against unauthorised access via integrated locks. -
Page 8: Compatibility Of The Mounting Poles
To ensure safe shipping, fixed transport on a pallet is recommended. Compatibility of the mounting poles The POLEM4 Single mounting pole is designed for mounting the following wallboxes from ABL: x Wallbox eM4 Single Charging station with one Type 2 charging socket h = 516 mm, w = 306.5 mm, d = 145 mm... -
Page 9: Dimensional Drawings And Dimensions
The POLEM4 Twin mounting pole is designed for mounting the following wallboxes from ABL: x Wallbox eM4 Twin Charging station with two Type 2 charging sockets h = 516 mm, w = 428 mm, d = 145 mm x Wallbox eMH3 * Charging station with one or two Type 2 charging sockets or one or two charging cables with Type 2 coupling h = 586 mm, w = 487 mm, d = 381 mm... - Page 10 Front 120 mm 400 mm 180 mm EMH9999 x View from the side, from above and in an isometric view 430 mm 50 mm POLEM4 Single 210 mm POLEM4 Twin 330 mm Introduction to the POLEM4 Single, POLEM4 Twin and the EMH9999...
-
Page 11: Accessories
Cable holder with charging plug receptacle for installation on an exterior wall or the mount- ing poles POLEMH1/2/3 h = 187 mm, w = 76 mm, d = 105 mm You can find further information on ABL charging stations and accessories at www.ablmobility.de. Accessories... -
Page 12: Installation
The installation surface must have sufficient strength to withstand the mechanical loads. It is therefore strongly recommended not to install the mounting pole directly on asphalt or a concrete floor, but to use a concrete foundation such as the ABL EMH9999 with suitable specifications (concrete C20/37 in accordance with EN 206-1:2013). -
Page 13: Laying The Emh9999 Foundation
Pick tool, straight Laying the EMH9999 foundation The optional EMH9999 concrete foundation from ABL provides a level installation surface for all mounting poles and ensures the necessary stability and support via factory-inserted screw anchors. The following working steps are always identical, regardless of the mounting pole in question. - Page 14 2 Apply a first layer of concrete screed with a height of approx. 10 cm at the positioning location of the foundation. NOTE Marking for installation The EMH9999 foundation features markings to prevent errors when setting up: The top side with the ground anchors is marked TOP, while the adjacent arrow marks the front side of the mounting pole for installing the wallbox.
-
Page 15: Installing The Mounting Pole On The Foundation
Installing the mounting pole on the foundation The next step is to mount the mounting pole on the foundation: The procedure is identical for the POLEM4 Single and POLEM4 Twin mounting poles and is described below using the POLEM4 Single mounting pole as an example. Detailed view of the top of the foundation The EMH9999 foundation has eight recessed threaded anchors for screwing on the respective mounting pole. -
Page 16: Installing The Em4 Wallbox On The Polem4
4 Prepare the supply cable area in the upper section of the mounting pole. J Open the grommet for the power cable using the pick tool (see section for the respective wallbox: J If you also wish to connect a data and/or control cable to the wallbox, open the corresponding grommet using the pick tool (see section for the respective wallbox: 5 Pull the power cable with sufficient length to the terminal... - Page 17 You will also need the following components which are supplied with the POLEM4 Single/Twin mounting pole: x Truss-head screw with collar M6 × 90, x Truss-head screw with collar M6 × 16 2 pcs. (TX30), 2 pcs. x Cover plug M6, 11 pcs. In addition, you will need the following tools: x Torx screwdriver (TX 30) x Phillips screwdriver x Stripping tool...
- Page 18 4 Insert the power cable through the supply cable area into the wallbox. 5 Connect the power cable to the terminal block in the wallbox. J Shorten the power cable to the required length and remove the sheath from the conductors. J Screw the wires into the individual terminals using the Phillips screwdriver (torque: 2.5 Nm).
- Page 19 10 Connect the RJ45 plug of the data cable to the LAN interface of the communication module in the wallbox. 11 Connect the control cable to terminal EN1 in the wallbox. Reset 16 mm 85 mm NOTE Detailed information in the installation manual Read the detailed information on connecting the data and control cables in the installation manual for the eM4 Single/Twin Wallbox.
-
Page 20: Installing The Emh1 Wallbox On The Polem4 Single
15 Switch to the rear of the opened mounting pole and pull the supply cable of the wallbox to the terminal block of the upper top-hat rail. This completes the installation of the wallbox on the mounting pole. Go to the section “Electrical connection in the mounting pole” on page 31. - Page 21 In addition, you will need the following tools: x Allen key x Phillips screwdriver x Stripping tool x Pick tool, straight Proceed as follows: 1 Open the housing cover of the wallbox using the key supplied and flip it up. 2 Loosen the four screws of the upper part of the housing using the Phillips head screwdriver.
- Page 22 NOTE Detailed information in the installation manual The installation instructions for the eMH1 Wallbox contain detailed information on preparing for the electrical connection. eMH1 installation manual 5 Open the right-hand grommet for the power cable with the pick tool. J If you also wish to connect a data cable to the wallbox, open the left-hand grommet with the pick tool, too.
- Page 23 9 Place the upper part of the housing on the rear shell of the housing and screw it on with the screws loosened in Step 2. 10 Now lock the housing cover using the key. 11 Seal all exposed threaded holes with cover plugs. 12 Switch to the rear of the opened mounting pole and pull the supply cable of the wallbox to the terminal block of the upper top-hat rail.
-
Page 24: Installing The Emh2 Wallbox On The Polem4 Single
Installing the eMH2 Wallbox on the POLEM4 Single This section describes how to install the eMH2 Wallbox on the POLEM4 Single. The two thread points under the top part are used for direct installation of the WPR12 weather shield on the POLEM4 Single (see “Accessories” on page 11, Weather shield installation manual). - Page 25 2 Loosen the screw holding the internal electronic components cover in place using a Torx screwdriver and put it aside. J Keep the screw in a safe place. 3 Open the right-hand large grommet for the power cable with the pick tool. J If you also wish to connect a data and/or control cable to the wallbox, open the two small grommets with the pick tool, too.
- Page 26 6 Open the right-hand large grommet for the power cable with the pick tool. J If you also wish to connect a data and/or control cable to the wallbox, open the left-hand large and the small grommets with the pick tool, too, and feed the cable(s) out of the mounting pole.
-
Page 27: Installing The Emh3 Wallbox On The Polem4 Twin
11 Seal all exposed threaded holes with cover plugs. 12 Switch to the rear of the opened mounting pole and pull the supply cable of the wallbox to the terminal block of the upper top-hat rail. This completes the installation of the eMH2 Wallbox on the POLEM4 Single mounting pole. Go to the section “Electrical connection in the mounting pole”... - Page 28 For installation, you will need the following components which are supplied with the eMH3 Wallbox: x Wallbox eMH3, 1 pc. x Triangular key, 1 pc. x TX25 wafer head screws, 6 × 25 mm, 4 pcs. You will also need the following components which are supplied with the POLEM4 Twin mounting pole: x Rounded-head screw M8 × 25 (hexagon x Cover plug M6, 4 pcs.
- Page 29 3 Open the large grommet for the power cable with the pick tool. J If you also wish to connect a data and/or control cable to the wallbox, open the two small grommets with the pick tool, too. 4 Insert a power cable measuring approximately 1.5 metres in length through the large grommet into the wallbox and connect it to the internal RCCB.
- Page 30 7 Insert the supply cable through the large grommet into the housing of the mounting pole and screw the wallbox into the mounting plate using the screwdriver and the screws supplied with the wallbox. 8 Replace the electronic components cover onto the wallbox housing and fix it into place with the screw you removed in Step 2.
-
Page 31: Electrical Connection In The Mounting Pole
10 Seal all exposed threaded holes with cover plugs. 11 Switch to the rear of the opened mounting pole and pull the supply cable of the wallbox to the terminal block of the upper top-hat rail. This completes the installation of the eMH3 Wallbox on the POLEM4 Twin mounting pole. Electrical connection in the mounting pole The following section describes how to connect to the terminal block in the mounting pole: This process is identical for the POLEM4 Single and POLEM4 Twin. -
Page 32: Connection Pattern For 1-Phase Tn System
1 Shorten the wallbox power cable to the required length for connection to the terminal block. J Remove the sheath from the conductor. 2 Shorten the power supply cable to the required length for connection to the terminal block. J Remove the sheath from the conductor. NOTE Strain relief of the supply cable It is advisable for the power supply cable be attached to the lower C-rail of the mounting pole via a suitable strain relief. -
Page 33: Safety Instructions For Start-Up And Operation
ATTENTION Checking the connection Please ensure that the conductors that are pre-fixed to the terminal block remain attached correctly after connecting the power supply cable. 4 Connect the supply cable to the mains. x As soon as the wallbox is connected to the electricity grid, it will initiate the start-up procedure. -
Page 34: Troubleshooting And Maintenance
Troubleshooting and maintenance If a malfunction should occur during operation, first check the points mentioned below. If the error cannot be rectified, contact your local sales partner and jointly determine how to proceed. The following malfunctions may occur: Malfunction Possible cause and suggested solution The power cable to the wallbox and/or the supply cable has not been correctly connected to the terminal block in the mounting pole. -
Page 35: Appendix
Approx. 26 kg Weight per unit (gross) Approx. 23 kg Approx. 29 kg * The POLEM4 Single can be used to install the eMH1 and eMH2 Wallboxes from ABL. ** The POLEM4 Twin can be used to install the eMH3 Wallbox from ABL. Model code EMH9999 Compatibility (mounting poles) POLEM4 Single... -
Page 36: Protection Classes & Degrees Of Protection
Protection classes & degrees of protection Protection class / Explanation Degree of protection Protection class I: All electrically conducting parts of the device are connected at low resistance with the protective earth system of the fixed installation. Protection class of the unit (protection against penetration of solid foreign bodies with a diameter IP44 greater than 1 mm and against splashing water). - Page 37 Additional technical information...
- Page 38 ABL GmbH · Albert-Büttner-Straße 11 · D-91207 Lauf / Pegnitz T. +49 (0) 9123 188-0 · info@abl.de · www.ablmobility.de...
