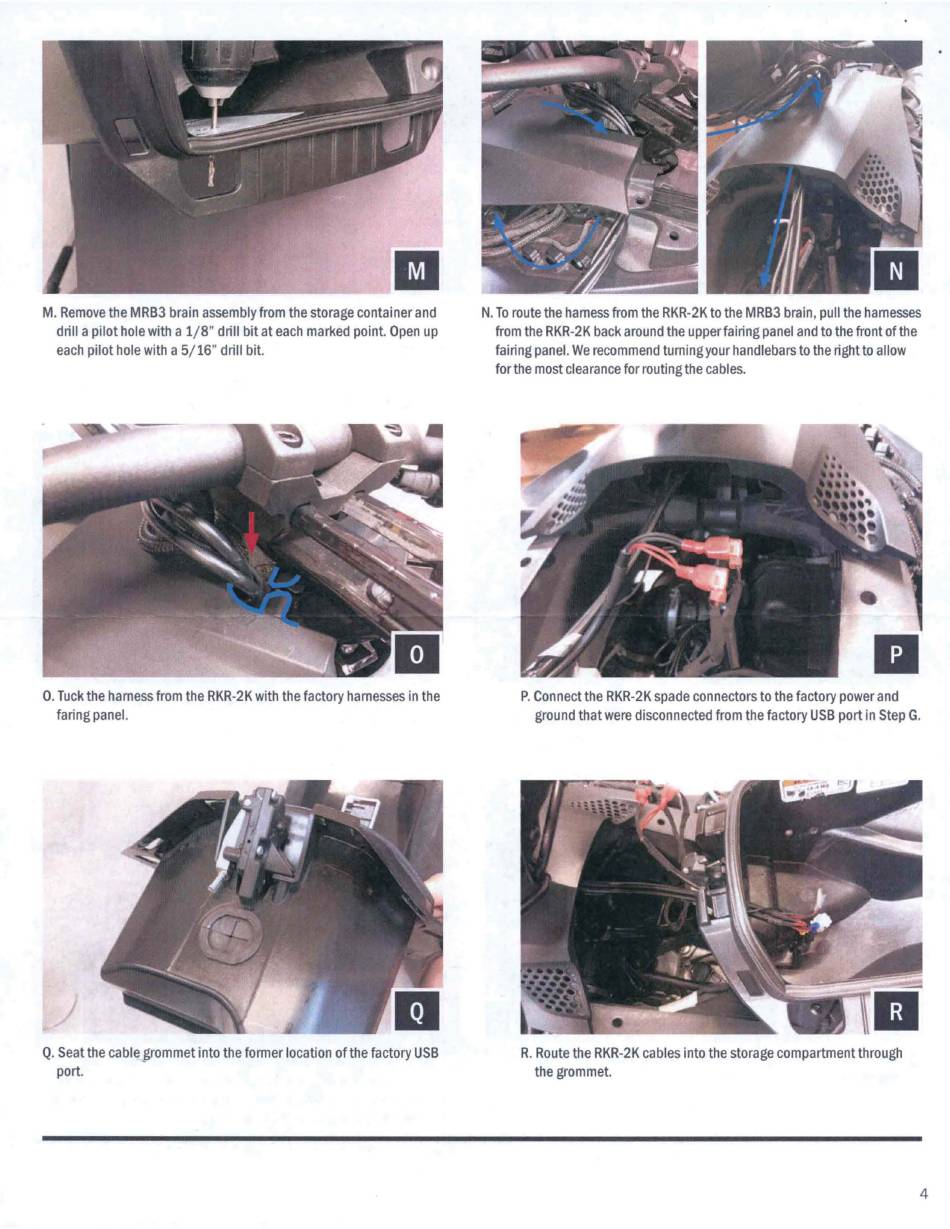

M. Remove the MRB3 brain assembly from the storage container and
drill a pilot hole with a
1/8"
drill bit at each marked point. Open up
each pilot hole with a 5/
16"
drill bit.
0.
Tuck the harness from the RKR-2K with the factory harnesses in the
faring panel.
Q.
Seat the cable Jrommet into the former location of the factory USB
port.
N.
To route the harness from the RKR-2K to the MRB3 brain, pull the harnesses
from the RKR-2K back around the upperfairing panel and to the front of the
fairing panel. We recommend turning your handlebars to the right to allow
for the most clearance for routing the
cables.
■
P.
Connect the RKR-2K spade connectors to the factory power and
ground that were disconnected from the factory USB port in Step
G.
R. Route the RKR-2K cables into the storage compartment through
the grommet.
4
