SSV Works MRB2 Installation And User Manual

MASTER CONTROL UNIT MOUNTING
Ensure all wiring, input port wiring and media controller wiring will reach to the mounting
location for the master control unit.
There are two mounting options for the MRB2:
A) Double sided tape:
- Find a flat mounting surface
- Clean the surface with alcohol or other similar cleaner
- Peel the double stick foam disc and stick to the mounting location
B) Zip ties
- Use the provided zip ties to secure to a bracket or wiring harness in your vehicle

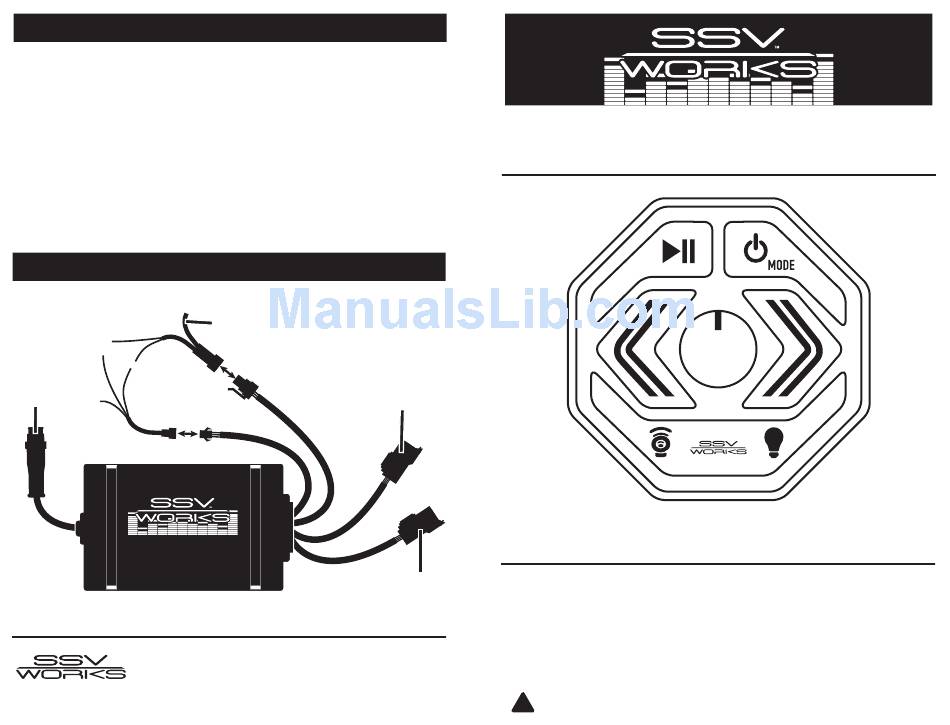

WIRING COLOR GUIDE
Red + 12volt Constant or Switched
+
Red
Black -
To Control
Unit
Orange
Dome Light
(Main Power Harness)
* Front audio out is to be used for all 6.5" & 6x9" speakers in vehicle
** To convert Front & Sub outputs to standard RCA, part #SSV-WP-HRCA is required
Corporate: SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
Web: www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such
®
marks by SSV Works is under license. © Copyright 2016 SSV Works, Oxnard, CA 93030
A) Double sided tape B) Zip ties
Black – Ground Orange + 12v Dome Light Out
(500MA)
To USB/
AUX Port
Audio Out*
MRB2
MRB2 Rev. B 3-8-16
Installation and User Guide
Front
Bluetooth
Sub Audio
WARRANTY INFORMATION:
Out**
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship. All
SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship. Labor for
replacement of defective components is not covered. All SSV Works Speakers are covered by a limited 1 year warranty
against defects in material or workmanship. Contact SSV Works for further warranty information.
SAFETY INFORMATION:
Do not attempt to disassemble or repair the MRB2 yourself. Please call SSV Works for technical assistance or repair
information. Changes or modifications to the MRB2 not authorized by SSV Works will void the warranty.
!
SSV Works recommends disconnecting the negative battery terminal before beginning any installation.

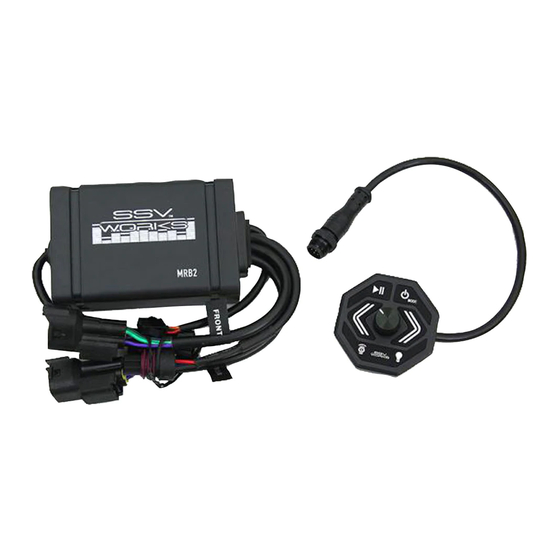

Media Controller with AUX Input & USB Charger
®
MRB2
