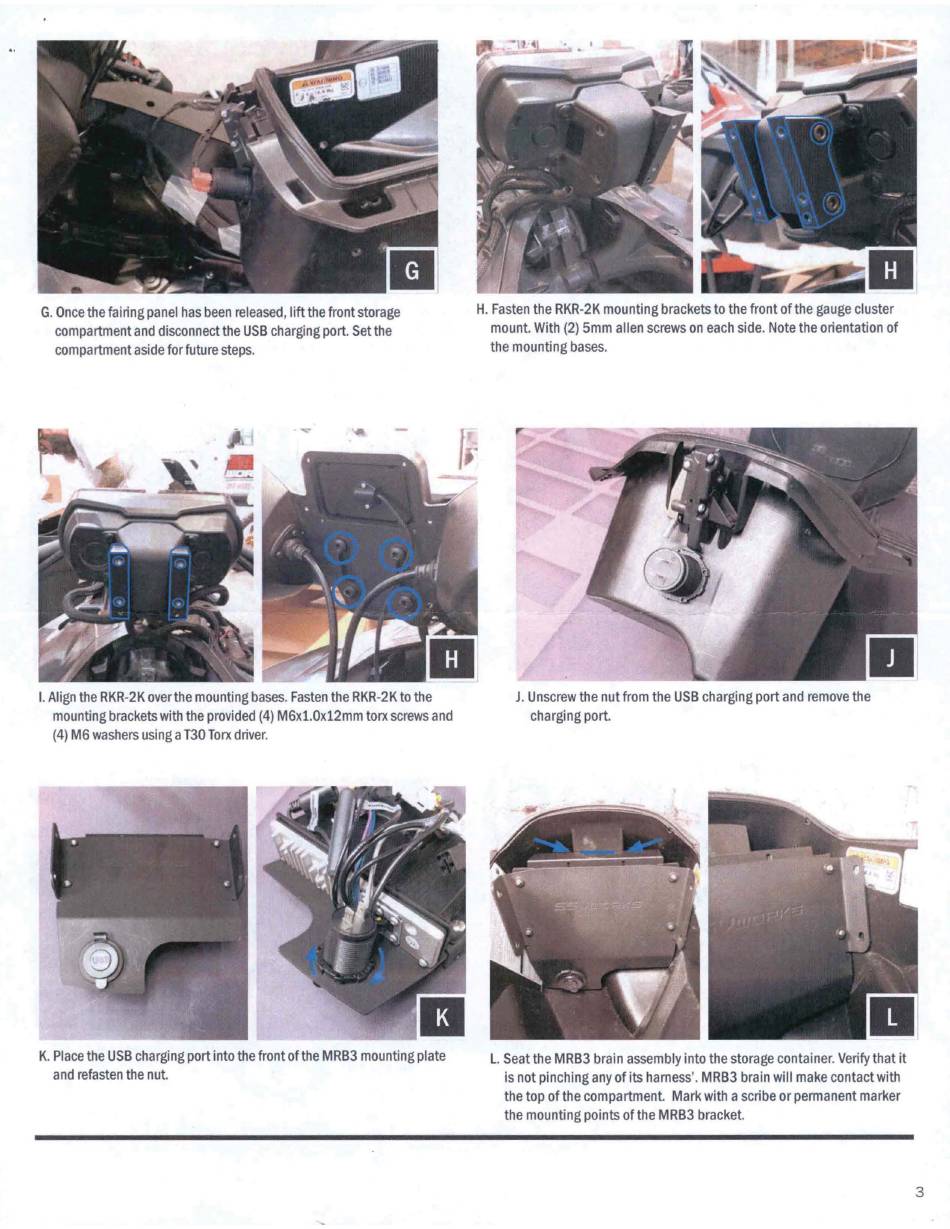

G. Once the fairing panel has been released, lift the front storage
compartment and disconnect the USB charging port. Set the
compartment aside for future steps.
I.
Align the RKR-2K over the mounting bases. Fasten the RKR-2K to the
mounting brackets with the provided (4) M6xl.Ox12mm torx screws and
(4) M6 washers using a T30 Torx driver.
K. Place the USB charging port into the front of the MRB3 mounting plate
and refasten the nut.
H. Fasten the RKR-2K mounting brackets to the front of the gauge cluster
mount. With (2) 5mm alien screws on each side. Note the orientation of
the mounting bases.
J. Unscrew the nut from the USB charging port and remove the
charging port.
L. Seat the MRB3 brain assembly into the storage container. Verify that it
is not pinching any of its harness'. MRB3 brain will make contact with
the top of the compartment. Mark with a scribe or permanent marker
the mounting points of the MRB3 bracket.
3
