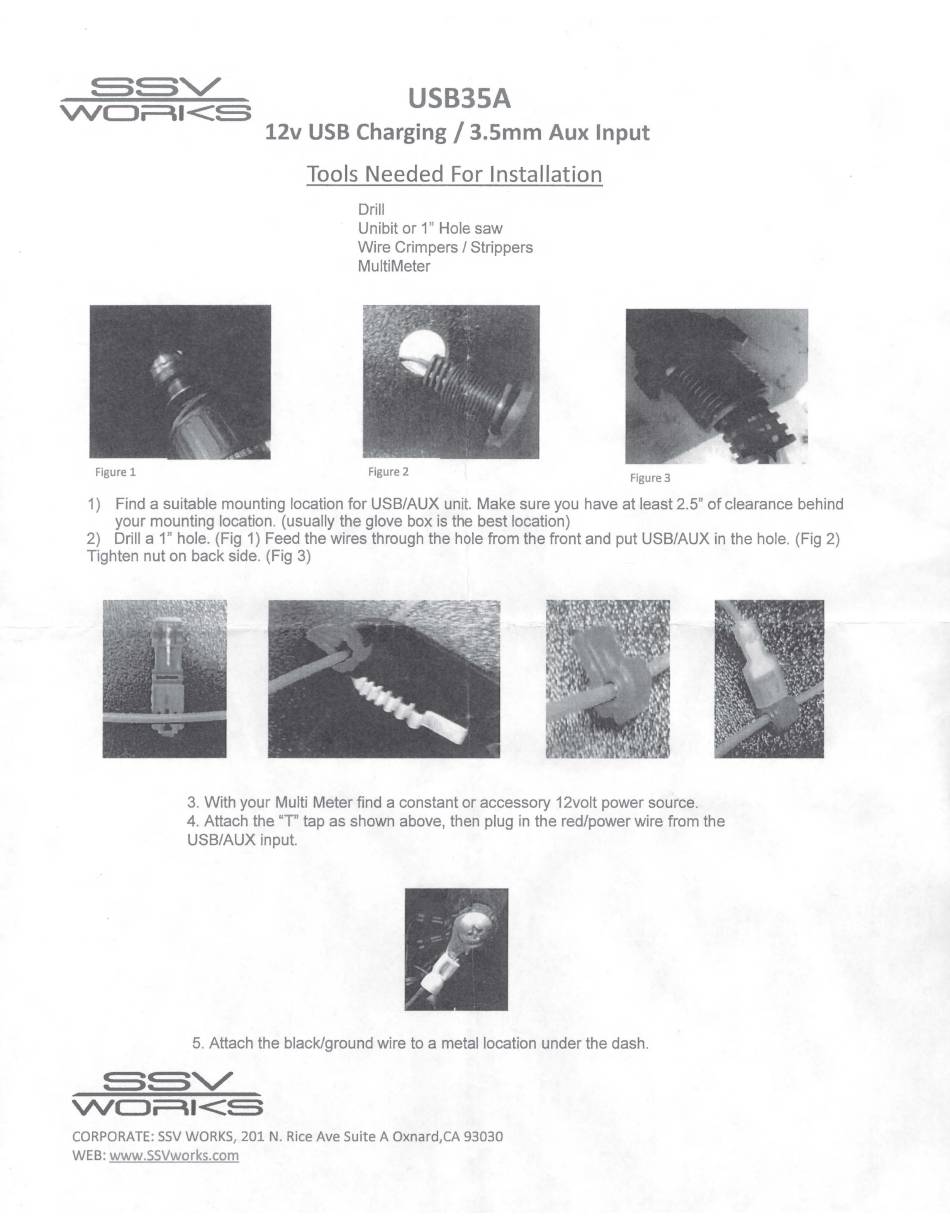

SSV Works RG3-2A User Manual

WCl;:=\I<~
USB35A
Figure 1
12v USB Charging / 3.5mm Aux Input
Tools Needed For Installation
Drill
Unibit or 1" Hole saw
Wire Crimpers / Strippers
MultiMeter
Figure 2
Figure 3
1) Find a suitable mounting location for USB/AUX unit. Make sure you have at least 2.5
11
of clearance behind
your mounting location. (usually the glove box is the best location)
2) Drill a 1" hole. (Fig 1) Feed the wires through the hole from the front and put USB/AUX in the hole. (Fig 2)
Tighten nut on back side. (Fig 3)
3. With your Multi Meter find a constant or accessory 12volt power source.
4. Attach the "T" tap as shown above, then plug in the red/power wire from the
USB/AUX input.
; , ,
' . . ii . _ '; --
# r
,tfl.
5. Attach the black/ground wire to a metal location under the dash.
