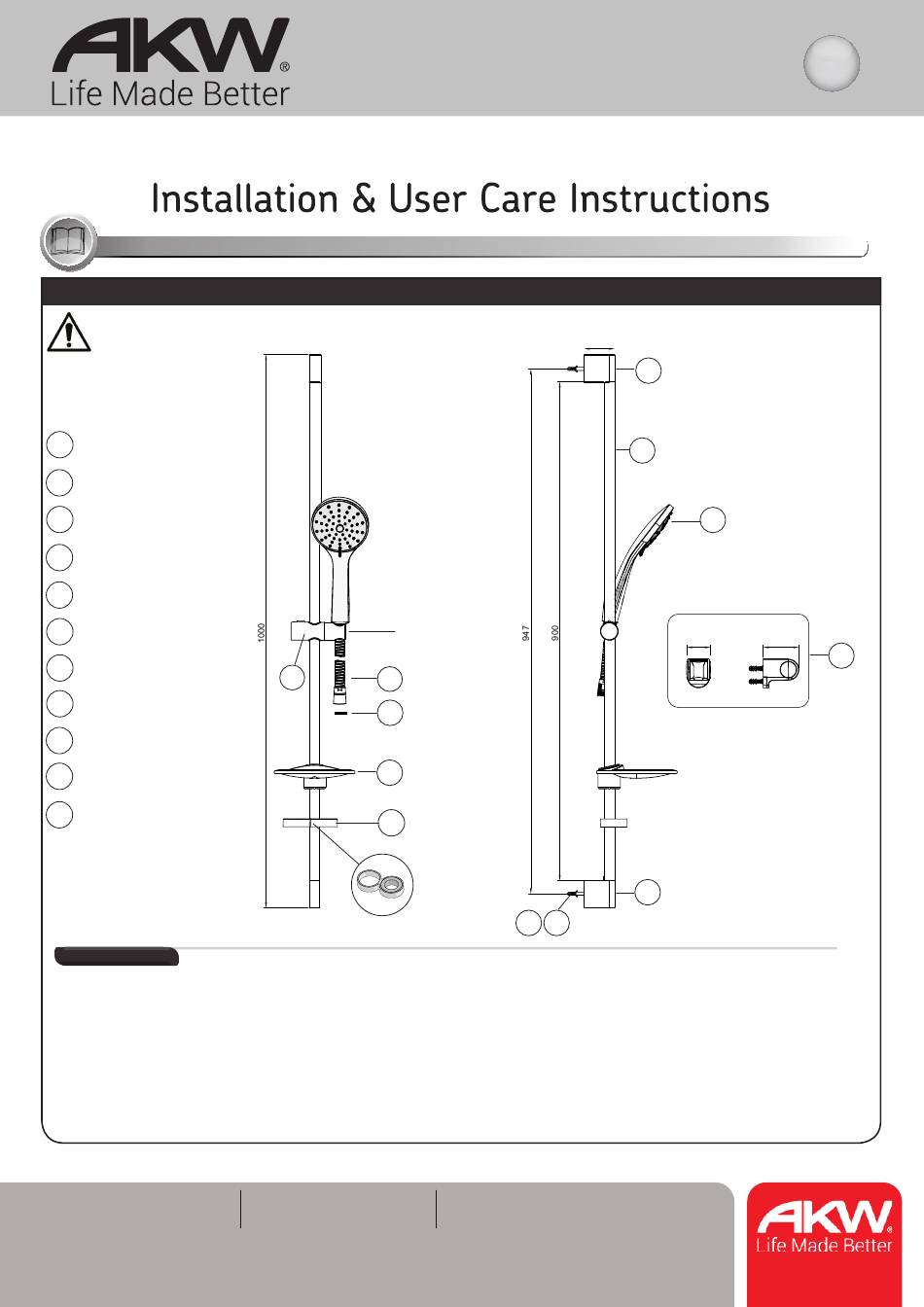

Akw 25422 Installation & User's Instructions

Shower Riser Rail Kit
READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND LEAVE WITH THE END USER FOR FUTURE REFERENCE
Important notes
Positioning- Must comply with water regulations, building regulations, and should be in accordance with BS6700.
A
x2 Mounting Brackets
B
x1 Rail
C
x1 Slider
D
x1 Soap Dish
E
x2 Wall plug
F
x2 Screw
G
x1 Shower Handset
H
x1 Wall Bracket
I
x1 Hose
J
x2 Washer
K
x1 Hose Retainer
Step 1
Ensure that the Mounting Brackets (A) are attached to the Rail (B). Note that only one bracket has a key which locks into
the slot in the Rail (B) to stop the rail turning (see Step 2).
Remove the chrome covers from both of the Mounting Brackets (A) by sliding them off horizontally.
Attach the Slider (C) and the Soap Dish (D) to the Rail (B) by removing one of the Mounting Brackets (A) and sliding them
on to the Rail (B). Ensure that the tapered socket on the Slider (C) for the Hose (I) is orientated correctly.
Re-attach the Mounting Brackets (A) and then, holding the assembly against the wall, establish the position for the riser
rail, making allowance for the heights of all persons likely to use the shower regularly.
Mark the position of the Mounting Brackets (A).
Website
www.akw-ltd.co.uk
Installer - please read all instructions carefully before installation
and leave this manual with the end user for future reference
Note the
orientation of
the tapered
socket for the
Hose (I).
C
I
J
D
K
Orderline
+44 (0)1905 823 298
55
A
B
A
E F
Technical Enquiries
01905 560219
technicalenquiries@akw-ltd.co.uk.
UK
UK
G
43
64.5
H
