Onyx Low Profile Shower Tray
Installation And User Care Instructions
Read ALL instructions carefully BEFORE installation and leave with the end user
Installer Information - Placement
USA
EU
UK
Suitable for 'on floor' or 'in floor Installations.
Ensure that the floor levels are tested before and after the installation,
water test the flow from tray into waste for correct installation and
drainage efficiency. It is important to ensure that the floor is level
in all directions before putting the tray into place. If water puddles
away from the waste, this is a clear indication that the levels are
not correct - that the water must drain towards the waste.

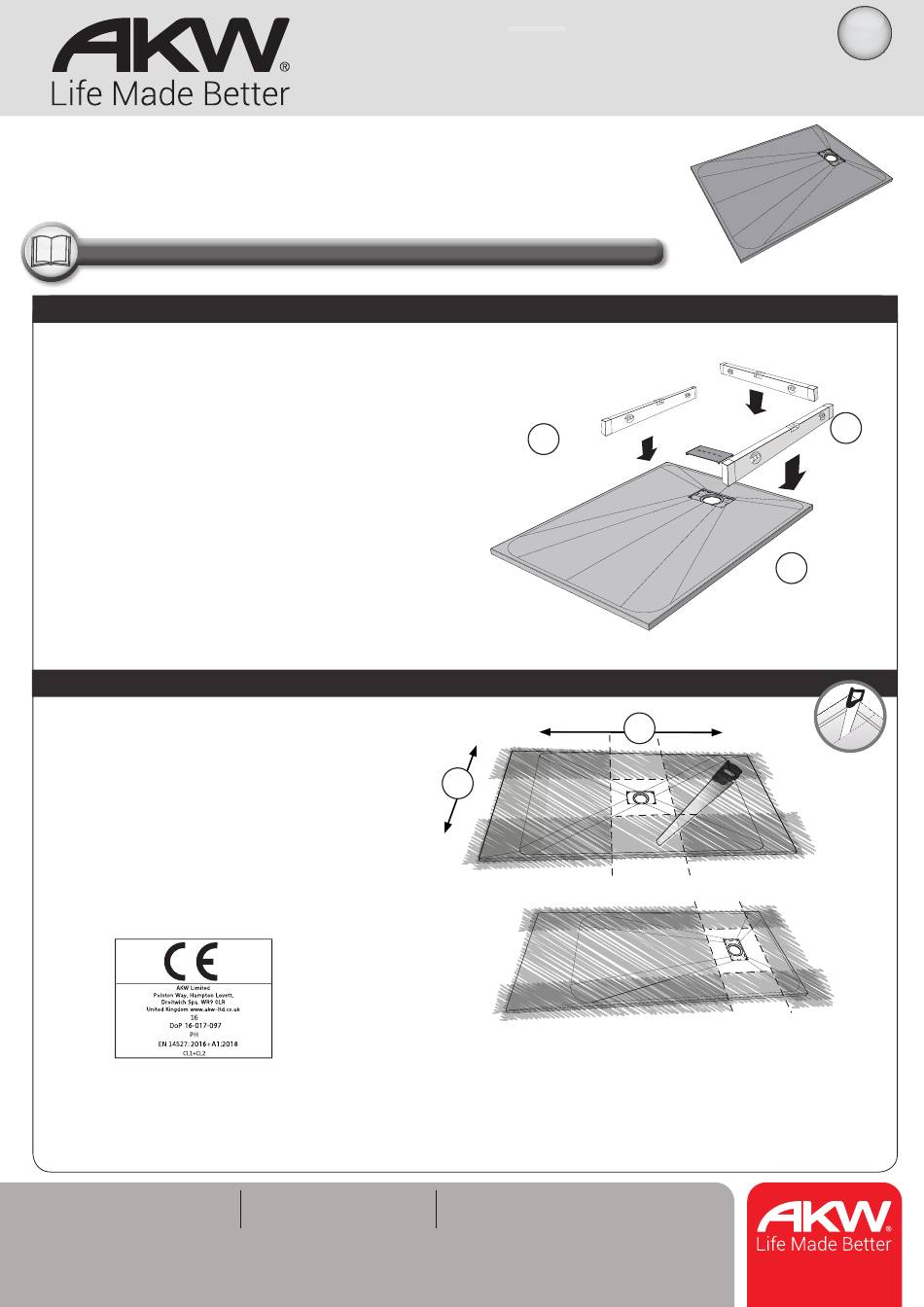

The sides on the tray A and B may well show level on testing,
but if point C is low, then water will puddle in the area of
point C and the only remedy is to level the floor and refit
the tray. The tray has 'lands' on all four sides.
Use a spirit level front to back and side to side - all 'lands' must be
level (ABC) - the fall is moulded into the tray (See Fig. A).
Installer Information - Trimmable trays
•
Tray height: 26mm
•
Slate finish
•
Concealed waste
•
Colour coordinated waste cover with slots
•
Shallow depth waste
•
High water flow rate (30 l/min)
•
Weight load : 200kg
•
Impact resistance
•
Webbed back reinforcements
•
Material : SMC (Sheet Moulding Compound)
Trimmable (within 150mm of waste)
If trimming is absolutely necessary to avoid obstructions or tricky installations then Onyx trays can be trimmed down to
150mm of the waste cover area. The sides on the tray X and Y shown in Fig. B are shaded out to show the trimmable areas.
Website
www.akw-ltd.co.uk
Installer - please read all instructions carefully before installation
and leave this manual with the end user for future reference
Y
Orderline
+44 (0)1905 823 298
A
X
Technical Enquiries
01905 560219
technicalenquiries@akw-ltd.co.uk.
UK
U
U
UK
UK
Fig. A
B
C
Fig. B
