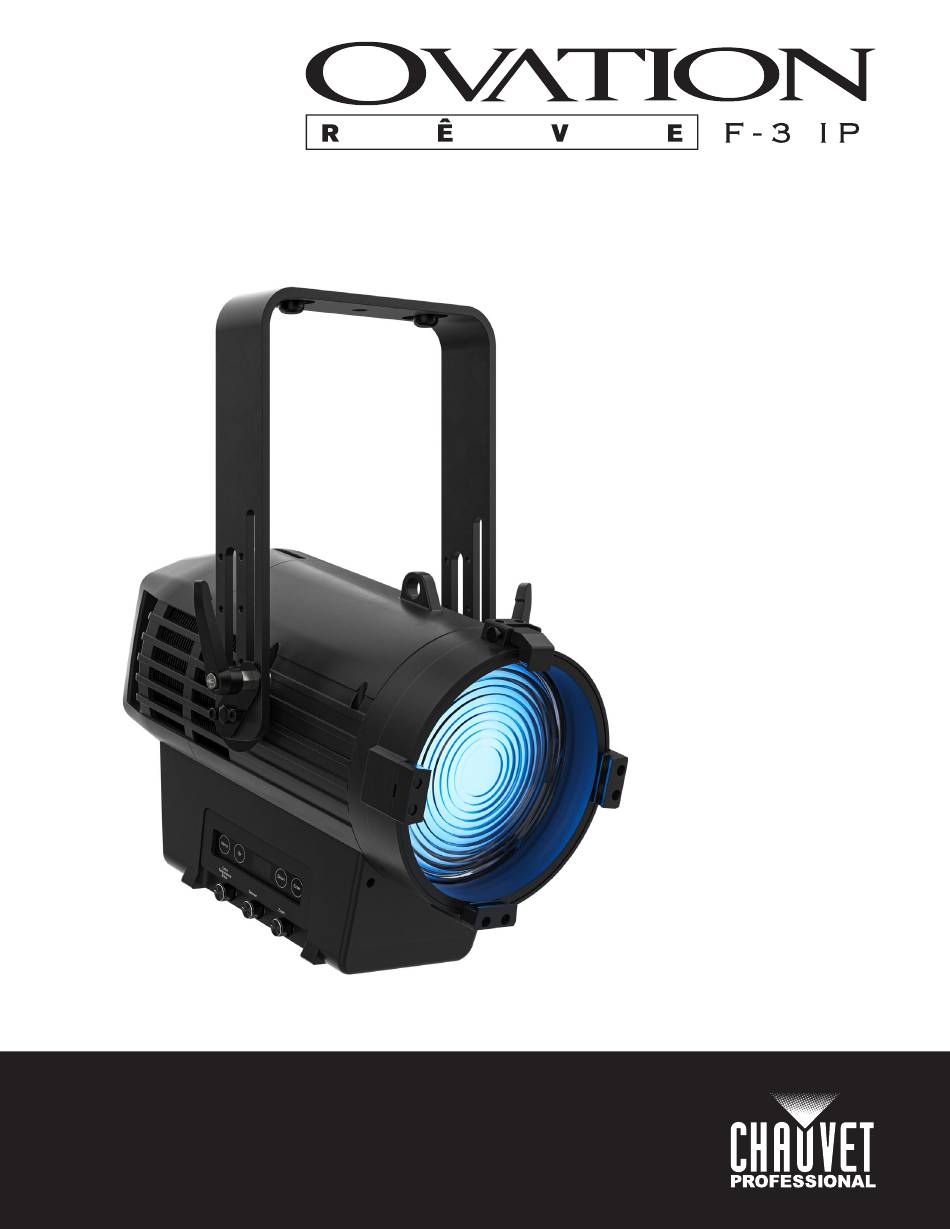

- Page 1 User Manual Model ID: OVATIONREVEF3IP...
- Page 2 Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Ovation, and Ovation Rêve are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................Safety Notes....................FCC Statement of Compliance ..............Expected LED Lifespan................. 2. Introduction ................Description ....................Features ......................Product Overview..................Product Dimensions .................. - Page 4 Table of Contents Standalone Configuration................Static Mode ......................18 Virtual Color Wheel ......................Color Temperature......................Manual Color Mixer......................Color X-Fade Speed ....................... Standalone Dimmer ................... 18 Auto Show......................19 Zoom ........................19 Settings Configuration................... DMX Zoom Disable .................... 19 Reset Zoom with Power ..................19 Red Shift ......................
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Ovation Rêve F-3 IP • 140 mm Omega bracket with mounting hardware • Seetronic Powerkon IP65 power cable • Quick Reference Guide • Gel frame holder (7.5 in/191 mm accessories) Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction

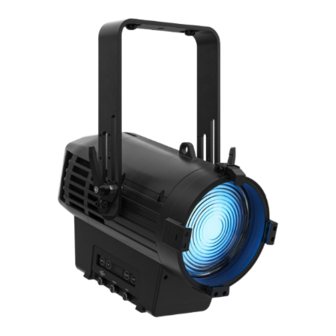

Introduction 2. Introduction Description The Ovation Rêve F-3 IP is an outdoor-rated motorized fresnel incorporating the full spectrum (RGBAM) Rêve light engine. With easy on-board control dials and quiet operation, the Ovation Rêve F-3 IP represents a solution for applications and markets in need of soft controllable washes. Rain or shine, the adjustable yoke allows it to be mounted anywhere, even in low clearance areas. -
Page 9: Product Dimensions
Introduction Product Dimensions 16.02 in 406.9 mm 21.05 in 534.6 mm 20 in 508 mm 12.06 in 306.3 mm 13.47 in 342 mm Ovation Rêve F-3 IP User Manual Rev. 1... -
Page 10: Setup
Setup 3. Setup AC Power The Ovation Rêve F-3 IP has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 11: Master/Slave Connectivity
Setup Master/Slave Connectivity The Master/Slave mode allows an Ovation Rêve F-3 IP (the master) to control one or more Ovation Rêve F-3 IP products (the slaves) without a DMX controller. One Ovation Rêve F-3 IP becomes the master when running an auto program or in Static mode. Each slave’s control panel must be configured to operate in Slave mode. -
Page 12: Force Upload
Setup Force Upload A Force Upload is done whenever a software update fails due to accidental removal of the USB flash drive, incorrect control protocol, or loss of power during a regular software update process. • A Force Upload process requires a target fixture (the fixture that needs a Force Upload and a main fixture (the fixture that controls the upload process). -
Page 13: Mounting
The Ovation Rêve F-3 IP comes with an Omega bracket. The user can directly attach a mounting clamp to this Omega bracket. Make sure the clamp is capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. Mounting Diagram... -
Page 14: Operation
Operation 4. Operation Control Panel Description Button/Knob Function <Menu> Exits from the current menu or function <Enter> Enables the currently displayed menu or sets the selected value into the selected function <Up> Navigates upwards through the menu list or increases the numeric value when in a function <Down>... - Page 15 Operation Main Menu Programming Levels Description C3050–Md Yellow C3040–Lt Yellow C3240–Amb Yellow C2340–VLt Amber C2040–Lt Amber C2050–Md Amber C2060–Dk Amber C1050–Lt Red C1080–Md Red C1020–NC Pink C1030–Md Pink C1630–Dk Pink C1250–Md Red Amber C1060–Dk Red Amber C1650–Magenta Virtual Virtual Color Wheel simulates the output of Dimmer Color C6170–Dk Magenta...
- Page 16 Operation Main Menu Programming Levels Description 4600K 4700K 4800K 4900K 5000K 5100K 5200K Dimmer Preset white color temperatures. Emulates 5300K Color 0–255 a tungsten lamp at the specified color Temperature 5400K temperature. Refer to the Color (cont.) 5500K Temperature Chart for specific values.
- Page 17 Operation Main Menu Programming Levels Description Color calibration off Sets maximum red LED value Green Sets maximum green LED value Color User Blue <125–255> Sets maximum blue LED value Calibration Calibration Amber Sets maximum amber LED value Mint Sets maximum mint LED value Factory Calibration Color calibration set by factory 750Hz...
-
Page 18: Dmx Configuration
Operation DMX Configuration Use control configurations to operate the product with a DMX controller. DMX Personalities To set the DMX personality: 1. Go to the DMX Channel main level. 2. Select the desired personality, from 1 Ch, 5 Ch, 6 Ch, 8 Ch, 12 Ch, 14 Ch1, 14 Ch2, 18 Ch, or HSV. -
Page 19: Virtual Color Wheel
Operation Virtual Color Wheel The Ovation Rêve F-3 IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 20: Color Temperature Chart
Operation Color Temperature Chart DMX Value Temperature DMX Value Temperature 000 005 No function 4500K 167 216 145 255 207 2800K 255 007 032 255 207 126 131 4501–4599K 007 012 2801–2899K 4600K 162 223 151 255 207 2900K 237 012 037 255 207 133 ... -
Page 21: Dmx Channel Assignments And Values
Operation DMX Channel Assignments and Values Control Chart Value Percent/Setting Value Percent/Setting 000 007 No function 128 135 X-Fade speed off 008 015 Reset dimmer 136 143 X-Fade speed 1 016 023 Red shift on 144 ... -
Page 22: Hsv
Operation Channel Function Value Percent/Setting 000 255 0–100% Saturation 000 255 0–100% Value 000 255 0–100% Zoom 000 255 Wide to narrow Channel Function Value Percent/Setting 0–100% Dimmer 000 255 (color set through display menu) Standalone Configuration Static Mode The static mode options under Virtual Color Wheel also include preset color temperatures and a manual... -
Page 23: Auto Show
Operation Auto Show To select an automatic program: 1. Go to the Auto Show main level. 2. Select the desired auto program (Auto 1–5). 3. Set the Speed value (1–100). Zoom To set the zoom level via the menu map: 1. -
Page 24: Color Calibration
Operation Color Calibration To configure the color calibration: 1. Go to the Color Calibration main level. 2. Select from Off, User Calibration, or Factory Calibration. 3. If User Calibration, select the maximum color value to edit, from Red, Green, Blue, Amber, or Mint. -
Page 25: Maintenance
Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean each lighting product at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 26: Technical Specifications
Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 16.02 in (406.9 mm) 13.47 in (342 mm) 20 in (508 mm) 30.4 lb (13.8 kg) Note: Dimensions in inches are rounded. Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging... -
Page 27: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd., Suite 509 Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K.
