Chauvet Professional Ovation F-95WW User Manual

Hide thumbs Also See for Ovation F-95WW:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ovation F-95WW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chauvet Professional Ovation F-95WW

Summary of Contents for Chauvet Professional Ovation F-95WW

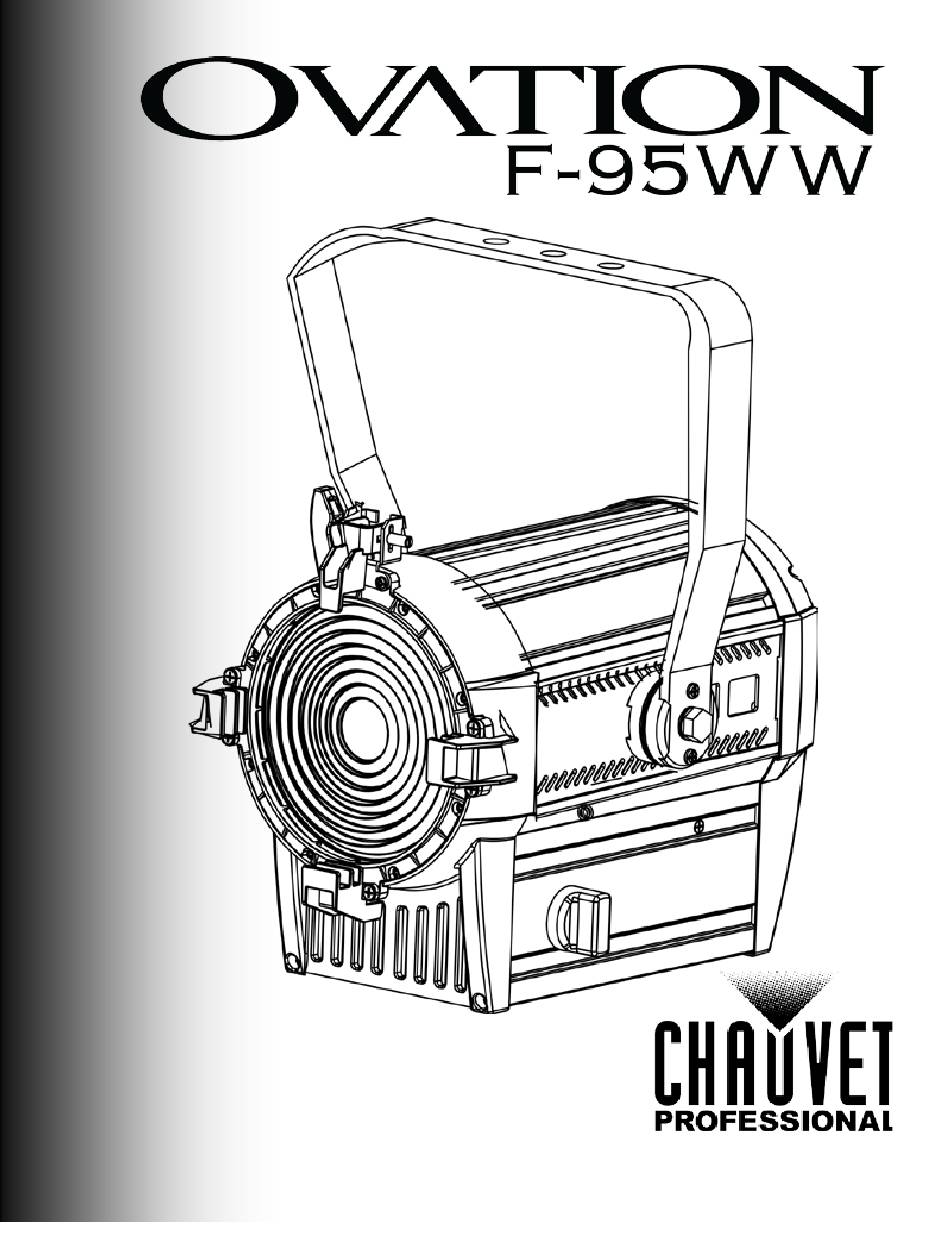

  • Page 1 User Manual...
  • Page 2 The OVATION F-95WW User Manual Rev. 6 covers the description, safety precautions, Edition Notes installation, programming, operation, and maintenance of the OVATION F-95WW. Chauvet released this edition of the OVATION F-95WW User Manual in June 2017. Trademarks CHAUVET, the Chauvet logo and OVATION F-95WW are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Passcode ....................................12 Menu Access Lock ..................................12 Reset ......................................13 Performance Power Output Options ............................13 Manual Zoom Control ................................. 13 Master/Slave Mode ..................................13 5. Technical Information ..........................14 Product Maintenance ..............................14 OVATION F-95WW User Manual Rev. 6...
  • Page 4 Table of Contents Technical Specifications ............................. 15 Photometrics Chart ..............................16 Returns ..................................17 Contact Us ..............................18 -ii- OVATION F-95WW User Manual Rev. 6...

  • Page 5: Before You Begin

    The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Product at a Glance Use on Dimmer Auto Programs Auto-Ranging Power Outdoor Use Supply Sound-Active Replaceable Fuse User-Serviceable Master/Slave Duty Cycle OVATION F-95WW User Manual Rev. 6...

  • Page 6: Safety Notes

    100,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. OVATION F-95WW User Manual Rev. 6...

  • Page 7: Introduction

    Introduction 2. Introduction The OVATION F-95WW is a warm white LED wash product featuring a compact and Description lightweight design that delivers a beautiful soft flat field with high-quality glass optics. Its massive zoom range of 21° to 83° and beautifully soft, warm white wash make it a versatile Fresnel.

  • Page 8: Overview

    Gel Frame Holder Zoom Adjustment Knobs Front View Side View Dimmer Handle Adjustment Knob Menu Buttons powerCON® Output powerCON® Input Display Fuse Holder 3- and 5-pin 3- and 5-pin Rear View DMX In DMX Out OVATION F-95WW User Manual Rev. 6...

  • Page 9: Dimensions

    Introduction Dimensions 11 in 279 mm 15.2 in 389 mm 12.8 in 325 mm OVATION F-95WW User Manual Rev. 6...

  • Page 10: Setup

    Each OVATION F-95WW has an auto-ranging power supply that works with an input AC Power voltage range of 100~240 VAC, 50/60 Hz. To determine the power requirements for each OVATION F-95WW, refer to the label affixed to the product. You can also refer to Technical Specifications chart in this manual.

  • Page 11: Power Linking

    Setup The OVATION F-95WW supports power linking. You can power link up to 15 units on 120 Power Linking V; up to 25 units on 208 V; or up to 28 units on 230 V. This product comes with a Neutrik® powerCON® input power cord. This product does not come with a power linking cable;...

  • Page 12: Mounting

    Notes. For our CHAUVET® Mounting Professional line of mounting clamps, go to http://trusst.com/products/. Always mount this product in a safe position. The OVATION F-95WW may be mounted Orientation in any position; however, make sure there is adequate room for ventilation, configuration, and maintenance.

  • Page 13: Operation

    Scrolls down the list of menu options or decreases the numeric value when in a function You can set the starting address of the OVATION F-95WW in the 001–512 DMX range. Control Options This enables control of up to 170 products in the 3-channel STD.P personality.

  • Page 14: Menu Map

    PERF STDO level Maintains LED cooling by using fan and POWR allowing full power output SELF No DMX signals are sent through DMX output MCON Sends DMX signals to OVATION F-95WW MAST slaves -10- OVATION F-95WW User Manual Rev. 6...

  • Page 15: Dmx Values

    2. Select the DERR programming level. · Select BLAK to turn off the LEDs when the signal is lost. · Select SAVE to use the last command programmed when the signal is lost. OVATION F-95WW User Manual Rev. 6 -11-...

  • Page 16: Dimmer - Menu Control

    Operation Dimmer - Menu To adjust the light output of the OVATION F-95WW, select the dimmer setting as follows. Control 1. Go to the DIM main level. 2. Select the desired dimmer setting D.000–D.100 (0–100% light output). Dimmer - Manual Manually adjust the light output by using the dimmer adjustment knob, as follows.

  • Page 17: Reset

    The Master/Slave mode allows a single OVATION F-95WW (the “master”) to control the actions of one or more OVATION F-95WW units (the “slaves”) without the need of a DMX controller to control the slaves. The master will be set to operate in Master mode (MAST), while the slaves will be set to operate in Slave mode (SLAV).

  • Page 18: Technical Information

    6. Wipe any dirt or grime to the outside edges of the lens surface. 7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. -14- OVATION F-95WW User Manual Rev. 6...

  • Page 19: Technical Specifications

    Cooling System 113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2 or 3 Ordering Product Name Item Code UPC Number OVATION F-95WW 01030721 781462210694 OVATION F-95WW User Manual Rev. 6 -15-...

  • Page 20: Photometrics Chart

    Technical Information Photometrics Chart -16- OVATION F-95WW User Manual Rev. 6...

  • Page 21: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). OVATION F-95WW User Manual Rev. 6 -17-...

  • Page 22: Contact Us

    +52 (728) 690-2010 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. OVATION F-95WW User Manual Rev. 6...
