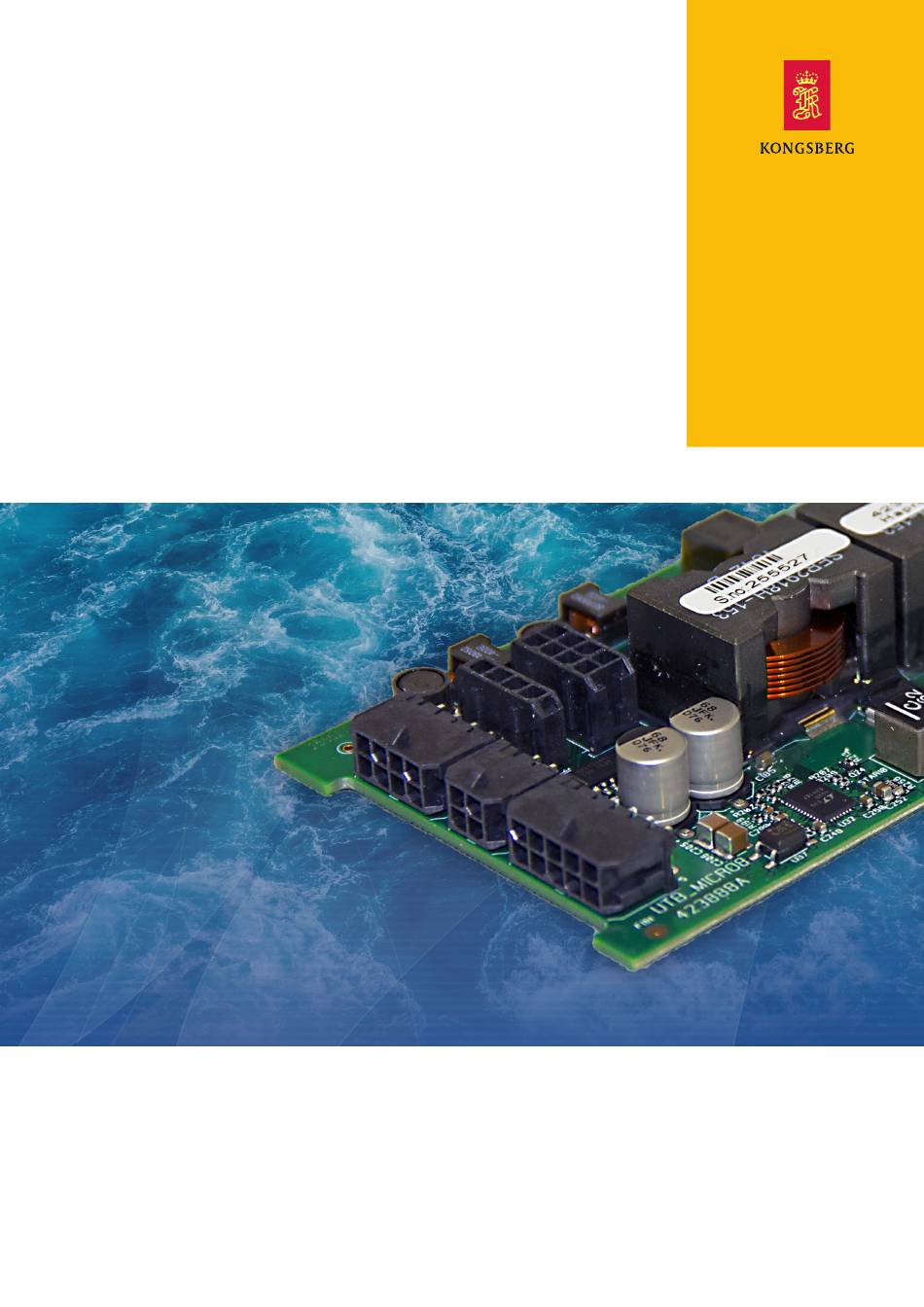

- Page 1 Instruction Manual cNODE Modem Embed kongsberg.com 453694/C...
- Page 3 Modem Embed Instruction Manual 453694/C April 2024 © Kongsberg Discovery AS...
- Page 4 Kongsberg Discovery disclaims any responsibility for damage or injury caused by improper installation, use or maintenance of the equipment. Disclaimer Kongsberg Discovery AS endeavours to ensure that all information in this document is correct and fairly stated, but does not accept liability for any errors or omissions. Support information If you require maintenance or repair, contact Kongsberg Discovery’s support...
-
Page 5: Table Of Contents
Scope of supply........................7 General supply conditions....................7 Receipt, unpacking and storage................7 Support information ......................8 INSTALLING THE CNODE MODEM EMBED CABLES....9 Electrostatic discharge (ESD) ..................10 Installing the cNODE Modem Embed cables..............11 Installing the transducer cables TD80V................12 Installing the transducer cables TD180................13 Installing the transducer cables TD40V Mini..............14... - Page 6 Modem Embed TD180 Outline dimensions ....................32 TD40V Outline dimensions .....................33 PCB Outline dimensions....................34 cNODE Modem Embed TD80V Low wiring diagram............35 cNODE Modem Embed TD180 wiring diagram .............36 cNODE Modem Embed TD40V Mini wiring diagram ...........37 453694/C...
-
Page 7: About This Manual
Microsoft Corporation in the United States and other countries. cNODE ® is a registered trademark of Kongsberg Discovery AS in Norway and other countries. ® cPAP is a registered trademark of Kongsberg Discovery AS in Norway and other countries. -
Page 8: Kongsberg Cnode Modem Embed
Modem Embed Instruction Manual Kongsberg cNODE Modem Embed Topics System description, page 7 Scope of supply, page 7 General supply conditions, page 7 Support information, page 8 453694/C... -

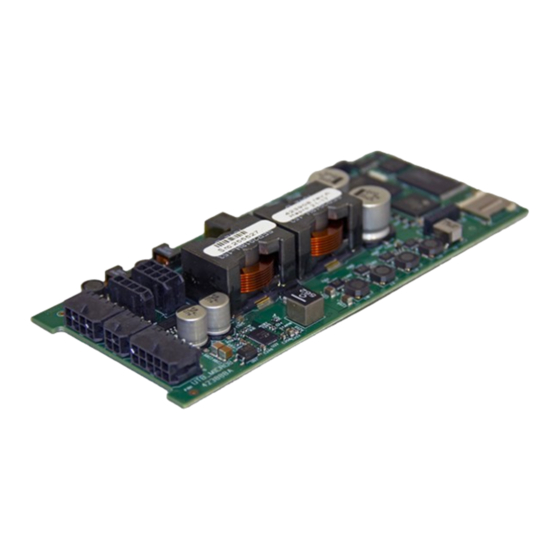

Page 9: System Description
The data telemetry operates on CYMBAL digital protocol, Kongsbergs field proven robust propriety link. Data rates of up to 6 kb/s are available. One cNODE Modem can address several other cNODE Modems during operation using the Kongsberg Link User Protocol. -
Page 10: Support Information
Support information Should you need technical support for your cNODE Modem Embed system you must contact a Kongsberg Discovery office. A list of all our offices is available on our website. You can also contact our main support office in Norway. -
Page 11: Installing The Cnode Modem Embed Cables
Installing the cNODE Modem Embed cables Topics Electrostatic discharge (ESD), page 10 Installing the cNODE Modem Embed cables, page 11 Installing the transducer cables TD80V, page 12 Installing the transducer cables TD180, page 13 Installing the transducer cables TD40V Mini, page 14... -
Page 12: Electrostatic Discharge (Esd)
Modem Embed Instruction Manual Electrostatic discharge (ESD) Electrostatic discharge (ESD) is the sudden flow of electricity between two electrically charged objects. Such flow can be caused by contact, an electrical short, or dielectric breakdown. Electrostatic discharge (ESD) can cause serious damage to printed circuit boards and electronic modules. -
Page 13: Installing The Cnode Modem Embed Cables
Installing the cNODE Modem Embed cables Installing the cNODE Modem Embed cables Cables can be supplied with an optional cable kit. Prerequisites The following specific items are required for this task: • 1 x Molex 4–pin receptacle 43025-0400 • 2 x Molex 8–pin receptacle 43025-0800 •... -
Page 14: Installing The Transducer Cables Td80V
Modem Embed Instruction Manual 12 Install the crimp terminals in a Molex 8–pin receptacle according to the cable drawing. Service connector J5, page 19 This is now connector J5. 13 Connect J5 to P5 in the front on the PCB. -
Page 15: Installing The Transducer Cables Td180
Installing the cNODE Modem Embed cables Connect the green wires to pin 1 and 5 on the receptacle. Connect the black wires to pin 3 and 7 on the receptacle. Connect the blue wires to pin 4 and 8 on the receptacle. -
Page 16: Installing The Transducer Cables Td40V Mini
Modem Embed Instruction Manual Add crimp terminals to the end of the wires. Install the crimp terminals in a Molex 8-pin receptacle according to the cable drawing. Connect the green wires to pin 1 and 5 on the receptacle. - Page 17 Installing the cNODE Modem Embed cables Use two green wires (0.24 mm ) and connect both to the green wire from the transducer. Use one orange wire (0.24 mm ) and connect to the orange wire from the transducer. Add crimp terminals to the end of the wires.
-
Page 18: Connectors
Modem Embed Instruction Manual Connectors Topics Transducer connector pinout J1, page 16 Modem top section interface connector pinout J3, page 17 Power connector J4, page 18 Service connector J5, page 19 Transducer connector pinout J1 This is the pin configuration for a female plug, as seen towards the plug (face view). -
Page 19: Modem Top Section Interface Connector Pinout J3
Installing the cNODE Modem Embed cables Modem top section interface connector pinout J3 This is the pin configuration for a female plug, as seen towards the plug (face view). Pin number Signal Minimum requirements RS-232 Tx 0.5 mm RS-232 Rx 0.5 mm... -
Page 20: Power Connector J4
Modem Embed Instruction Manual Power connector J4 This is the pin configuration for a female plug, as seen towards the plug (face view). Pin number Colour Signal Minimum requirements External 0.5 mm power (24 VDC) External 0.5 mm power (24 VDC) -
Page 21: Service Connector J5
Installing the cNODE Modem Embed cables Service connector J5 This is the pin configuration for a female plug, as seen towards the plug (face view). Pin number Signal Minimum requirements Not connected Not connected Not connected 0.5 mm Ground Not connected... -
Page 22: General Acoustic Considerations
Modem Embed Instruction Manual General acoustic considerations Take this information into consideration when deploying the transponders. Acoustic range The term depth rating should not be confused with the term acoustic range. The acoustic range is dependent on a number of factors, and some of these factors are beyond the control of the user. - Page 23 General acoustic considerations Sound velocity and ray bending Changes in water temperature affect the speed of sound through the water column, and changes in the salinity of the ocean can bend the acoustic signal, making it impossible for the signal to reach the vessel. 453694/C...
-
Page 24: Operating Procedures
Modem Embed Instruction Manual Operating procedures The transponder is operated from the HiPAP operator station APOS. • See APOS online help for more information. 453694/C... -
Page 25: Spare Parts
Spare parts Spare parts Topics TD80V Spare part, page 24 TD180 Spare part, page 24 TD40V Spare part, page 24 Printed Circuit Board (PCB) Spare part, page 24 Capacitor Spare part, page 25 Transformer TD80V Spare part, page 25 Transformer TD180/TD40V Spare part, page 25 Cable kit Spare part, page 25 453694/C... -
Page 26: Td80V Spare Part
Modem Embed Instruction Manual TD80V Spare part • TD80V Part name: • 350501 Part number: TD180 Spare part • TD180 Part name: • 417492 Part number: TD40V Spare part • TD40V Part name: • 332186 Part number: Printed Circuit Board (PCB) Spare part •... -
Page 27: Capacitor Spare Part
• Receptacle J1 with 150 mm wires. • Receptacle J3 with 150 mm wires. • Receptacle J4 with 150 mm wires. • Receptacle J5 with 150 mm wires. • cNODE Modem Embed Cable kit Part name: • 431008 Part number:... -
Page 28: Technical Specifications
Modem Embed Instruction Manual Technical specifications Topics Performance specifications, page 27 Weight and outline dimensions, page 28 Power requirements, page 29 Environmental requirements, page 29 453694/C... -
Page 29: Performance Specifications
Technical specifications Performance specifications The performance specifications are listed below. • 21 - 31 kHz Operating frequency: • 5 - 25 V positive logic pulse (2 - 6 ms) Responder trigger signal: • 3000 m Depth rating: • ±90° Internal tilt sensor: TD80V •... -
Page 30: Weight And Outline Dimensions
Modem Embed Instruction Manual TD40V Mini • 40° Vertical Transducer beam: • 90 dB Receiver sensitivity: • Source level: – Maximum: 203 dB – High: 197 dB – Low: 191 dB – Minimum: 183 dB Weight and outline dimensions The weight and outline dimensions are listed below. -
Page 31: Power Requirements
Technical specifications TD40V Mini • Outline dimensions: – 71 mm Height: – 100 mm Diameter: Capacitor • Outline dimensions – 18 mm Height: – 5 mm Width: – 10.5 mm Depth: Transformer • Outline dimensions – 32 mm Height: – 42 mm Diameter: Power requirements... -
Page 32: Drawing File
TD180 Outline dimensions, page 32 TD40V Outline dimensions, page 33 PCB Outline dimensions, page 34 cNODE Modem Embed TD80V Low wiring diagram, page 35 cNODE Modem Embed TD180 wiring diagram, page 36 cNODE Modem Embed TD40V Mini wiring diagram, page 37... -
Page 33: Td80V Outline Dimensions
Drawing file TD80V Outline dimensions 453694/C... -
Page 34: Td180 Outline Dimensions
Modem Embed Instruction Manual TD180 Outline dimensions 453694/C... -
Page 35: Td40V Outline Dimensions
Drawing file TD40V Outline dimensions 453694/C... -
Page 36: Pcb Outline Dimensions
Modem Embed Instruction Manual PCB Outline dimensions 453694/C... -
Page 37: Cnode Modem Embed Td80V Low Wiring Diagram
Drawing file cNODE Modem Embed TD80V Low wiring diagram 453694/C... -
Page 38: Cnode Modem Embed Td180 Wiring Diagram
Modem Embed Instruction Manual cNODE Modem Embed TD180 wiring diagram 453694/C... -
Page 39: Cnode Modem Embed Td40V Mini Wiring Diagram
Drawing file cNODE Modem Embed TD40V Mini wiring diagram 453694/C... - Page 40 Modem Embed Instruction Manual Index about help acoustic considerations........20 technical support .......... 8 acoustic range ..........20 document downloads ........5 electrostatic discharge (ESD) ......10 online information ........5 information registered trademarks........5 technical support .......... 8 target audience ..........
- Page 41 Index requirements about ............20 environmental ..........29 transformer power ............29 spare part..........25 temperature ..........29 unpacking safety precautions general supply conditions........ 7 electrostatic discharge (ESD) ......10 scope of supply supplied as standard ........7 size vessel system technical specifications........
- Page 42 ©2024 Kongsberg Discovery AS...
