Kongsberg Maritime disclaims any responsibility for damage or injury caused by improper installation, use or maintenance of the equipment. Disclaimer Kongsberg Maritime AS endeavours to ensure that all information in this document is correct and fairly stated, but does not accept liability for any errors or omissions. Support information If you require maintenance or repair, contact Kongsberg Maritime’s...
Explorer. Target audience This manual is intended for all users of the cNODE Explorer. Online information All end-user manuals provided for operation and installation of your cNODE Explorer can be downloaded from our website. https://www.kongsberg.com/maritime Registered trademarks Observe the registered trademarks that apply.
Explorer Instruction Manual Kongsberg cNODE Explorer Topics System description, page 7 System units, page 7 General supply conditions, page 8 Support information, page 9 461378/A...

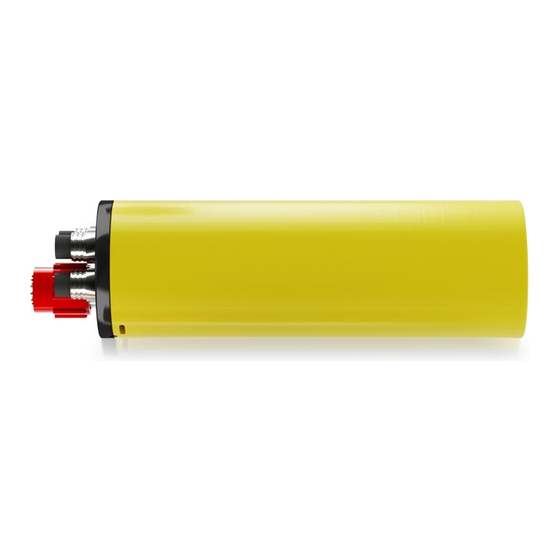

Kongsberg cNODE Explorer System description cNODE Explorer is designed for integration onto AUVs, ROVs or other vehicles where space and weight are restricted. The cNODE electronics can be supplied in a pressure rated underwater housing or in compact lightweight non pressure rated housing for full third party integration.
All equipment must be inspected for physical damage, i.e. broken controls and indicators, dents, scratches etc. during unpacking. If any damage to the equipment is discovered, the recipient must notify both the transportation company and Kongsberg Maritime so that Kongsberg Maritime can arrange for replacement or repair of the damaged equipment.
Support information Should you need technical support for your cNODE Explorer you must contact a Kongsberg Maritime office. A list of all our offices is provided on our website. You can also contact our main support office in Norway. Manuals and technical information can be downloaded from our support website.
Cable layout and interconnections Transponder interface connector pinout, P1 This is the pin configuration for a male plug, as seen towards the plug (face view). Pin number Signal RS-232 Tx 1 RS-232 Rx 1 Ground VDC In Ground Responder trigger + Responder trigger –...
Explorer Instruction Manual Transducer connector pinout, TD1 This is the pin configuration for a female connector, as seen towards the connector (face view). The other transducer connectors, TD2 and TD3, are not used for this product. Pin number Signal...
General acoustic considerations General acoustic considerations Take this information into consideration when deploying the transponders. Acoustic range The depth rating should not be confused with acoustic range. The acoustic range is dependent on many factors, and some of the factors are outside control of the user. Vessel system The directivity and coverage area for the vessel system is different, depending on which system you are using.
Page 14
Explorer Instruction Manual Sound velocity and ray bending Changes in sound velocity through the water column caused by changes in the water temperature and/or salinity can bend the acoustic signal and make it impossible to reach the vessel. 461378/A...
Operating procedures Operating procedures The transponder is operated from the HiPAP operator station APOS. • Refer to APOS online help for descriptions. 461378/A...
Explorer Instruction Manual Maintenance Lubricating SubConn ® connectors Underwater connectors must be kept clean and lubricated and should be inspected regularly for damages and corrosion. Context SubConn ® connectors should not be exposed to extended periods of heat or direct sunlight.
Explorer Instruction Manual cNODE Explorer 17 spare part • : cNODE Explorer 17 Part name • : 461377 Part number cNODE Explorer 10 spare part • : cNODE Explorer 10 Part name • : TBD Part number TDR50V spare part •...
Spare parts Interface cable spare part This cable has a female 16-pin SubConn connector (MCIL16F) in one end and a pigtail in the other. It is the cable between the cNODE Explorer 17 and the customer’s system. • : Interface cable Part name •...
Technical specifications Performance specifications These performance specifications summarize the main functional and operational characteristics of the cNODE Explorer transponder. • : 12 kHz Operational frequency • : 5 - 25 V positive logic pulse (2 - 6 ms) Responder trigger signal •...
Explorer Instruction Manual Weight and outline dimensions These weights and outline dimension characteristics summarize the physical properties of the cNODE Explorer system. cNODE Explorer 17 • Outline dimensions – : 323 mm Height – : 79 mm Diameter •...
Technical specifications Environmental requirements These specifications summarize the temperature requirements and other environmental standards for the cNODE Explorer system. • : -5 to 55 °C Operating temperature • : -30 to 70 °C Storage temperature 461378/A...
Explorer Instruction Manual TDR180 Outline dimensions 461378/A...
Page 29
Index Index 330015 TDR50V St ..........18 general supply conditions equipment responsibility......... 8 receipt ............8 storage ............8 about unpacking ..........8 acoustic considerations........13 acoustic range ..........13 document downloads ........5 online information ........5 help purpose of this manual ........5 support offices ..........
Page 30
Explorer Instruction Manual power purpose ............. 5 requirements ..........22 target audience ..........5 procedure trademarks lubricating the underwater connector ....16 registered........... 5 publication transducer purpose ............. 5 about ............8 target audience ..........5 outline dimensions drawing ......27 purpose spare part..........
