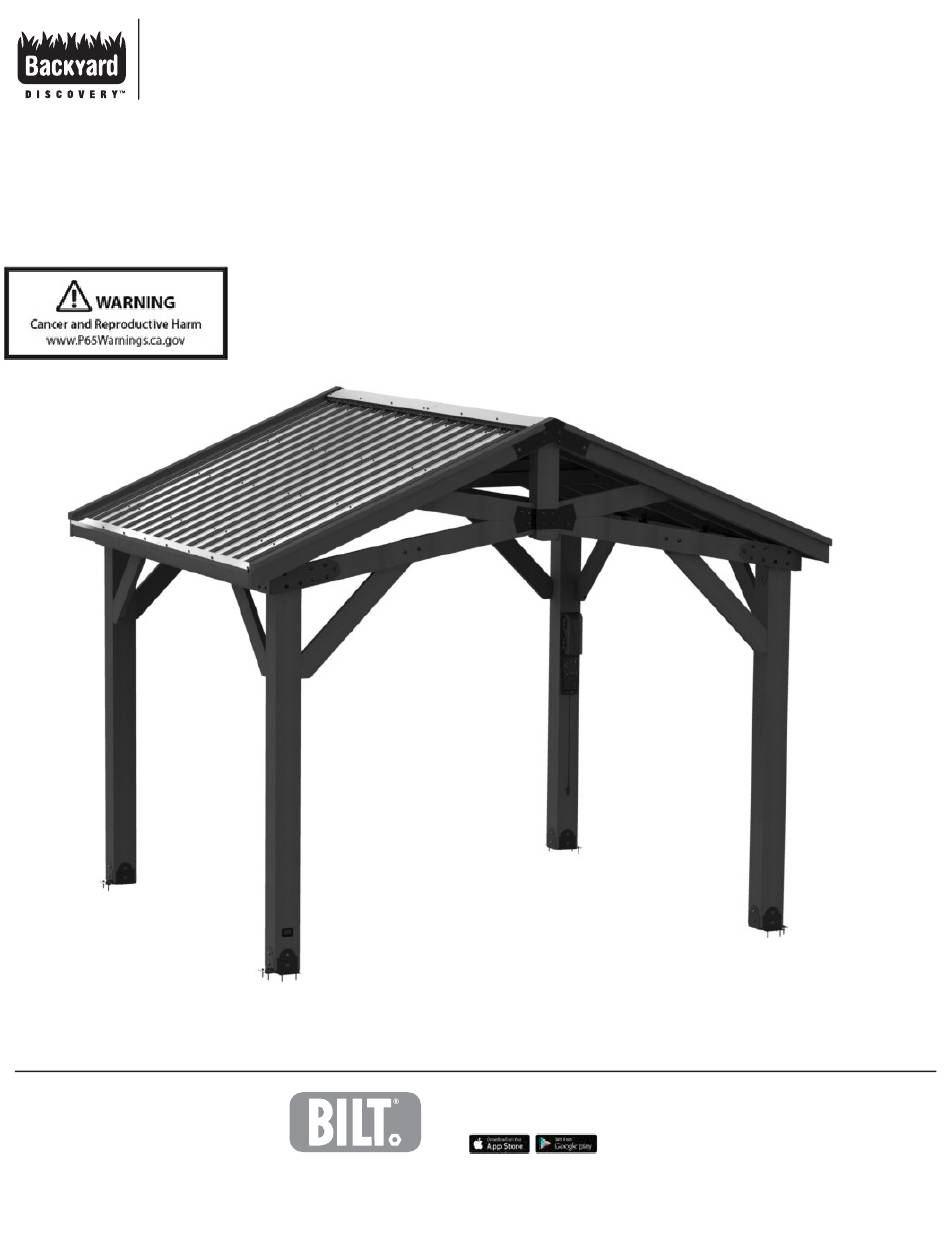

12x10 NORWOOD GAZEBO
MODEL # : 2306059B
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2306059B-A-12x10 NORWOOD GAZEBO-ENG 1-7-2025
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Backyard Discovery 2306059B
Summary of Contents for Backyard Discovery 2306059B
- Page 1 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 12x10 NORWOOD GAZEBO MODEL # : 2306059B Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
- Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
- Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
- Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100202 | SCREW PWH BLK (x4) | 8x5/8 H100120 | CONCRETE ANCHOR H100833 | SCREW WOODGRIP (x16) | 1/4x2 | 10x3/4 (x160) H100392 | SCREW PWH BLK (x16) | 8x3/4 H100759 | SCREW TAPPING H101069 | SCREW PWH BLK (x16)
- Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100659 | LAG SCREW BLK H100195 | BOLT WH BLK (x4) | 5/16x1-1/2 | 5/16x2-3/4 (x10) H100484 | BOLT WH BLK | 5/16x3-1/4 (x16) H100480 | BOLT WH BLK (x4) | 5/16x4-3/4 H100881 | BOLT WH BLK (x8) | 5/16x5...
-
Page 10: Hardware Parts
PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •... - Page 11 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
- Page 12 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
- Page 24 MAY NEED TO LOOSEN HARDWARE ON OUTSIDE BRACKETS TO SLIDE GAZEBO BRACE IN PLACE.
-
Page 59: Electrical Enclosure
PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
