Quality since 1946
Salt Dogg

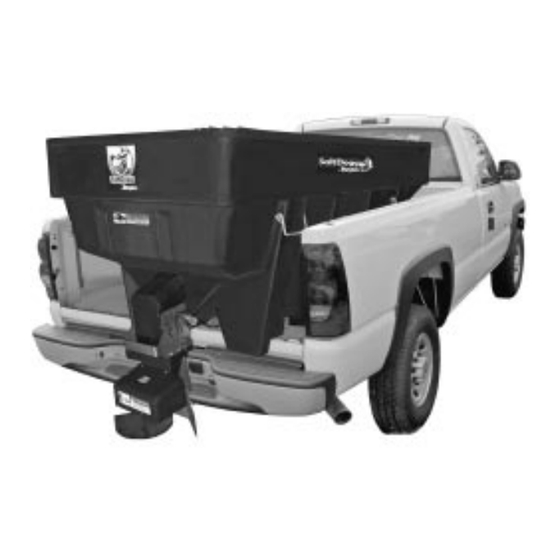

Spreader Hopper Poly Electrical
2.0 cubic yards
Table of Contents
General Information .................................................. 1
Safety Precautions ..................................................... 1
Warranty Information ............................................... 2
Installation Instructions ..................................... 2-4
Spreader Operation ................................................... 5
Spreader Maintenance ............................................. 5
Repair Parts & Drawings ..................................... 6-10
General Information
Spreader models:
SHPE2000- spreader with standard length chute;
SHPE2000X- spreader with extended length chute.
Overall Length: 96 inches
Overall Width: 47-1/2 inches
Overall Height (installed): 40 inches
Empty Weight: 437 lbs (standard chute), 441 lbs
(extended chute)
Capacity Struck: 2.0 cu. yd.
Vehicle Requirements
3/4 or 1 ton pick-up truck above 8500# GVWR.
135 AMP or higher alternator is recommended.
CAUTION
Do not overload vehicle beyond the vehicle's GVWR or GAWR.
Check vehicle's load rating certification sticker for maximum
vehicle capacity.
Average Material Weights
material
Fine Salt-Dry
Coarse Salt-Dry
Sand/Salt 50/50 Mix-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
Instruction Manual
weight (pounds per cubic yard)
2,250
1,431
2,700
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • buyersproducts.com
Safety Precautions
WARNING
Observe the following Safety Precautions before, during and
after operating this spreader. By following these precautions
and common sense, possible injury to persons and potential
damage to this machine may be avoided.
1. Read this entire Owners Manual before operating
this spreader.
2. Read all safety decals on the spreader before
operating.
3. Check to make sure all safety guards are securely
mounted into place before operating this spreader.
4. Verify that all personnel are clear of the spreader
spray area before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits.
If there are any questions, contact the vehicle
manufacturer.
6. Do not adjust, clean, lubricate or unclog material
jambs without first turning off the spreader.
7. Do not climb on or in the spreader during operation.
Do not ride on the spreader while the vehicle is
in motion.
8. Make sure the spreader is securely fastened to the
vehicle in accordance with this manual.
9. Do not operate a spreader that is in need of mainte-
nance or repairs.
10. Always disconnect the battery before removing or
replacing electrical components.
Advertisement
Related Manuals for Buyers Salt Dogg SHPE2000
Summary of Contents for Buyers Salt Dogg SHPE2000
-
Page 1: Table Of Contents
9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Quality since 1946 Toll-Free Fax 800-841-8003 • buyersproducts.com Instruction Manual Salt Dogg Spreader Hopper Poly Electrical 2.0 cubic yards Table of Contents General Information ..........1 Safety Precautions ............. 1 Warranty Information .......... -
Page 2: Warranty Information
30 days after such defect is discovered, and returned part(s) are found to be defective by Buyers Products Company. Authorization from Buyers Products Company must be obtained before returning any part. - Page 3 Quality since 1946 B. Then rotate the Chute into operating position E. Center the spreader from side to side on the and lock using two spring latches. vehicle. Securely strap the spreader to the truck using four ratchet straps as shown. Front straps must be attached to anchor points located in front of the spreader to create longitudinal stability for the spreader.
- Page 4 Quality since 1946 (Fig.5) A. Lay out a wiring path for the Vehicle Wiring use an existing one to pass wire harness. It is Harness. Connect the Wire Harness smaller termi- recommended to pass the Power Cable from nal to the Chute’s harness, large terminal to the inside of the cab to the battery due to the large high amperage connector.
-
Page 5: Spreader Operation
Quality since 1946 Spreader Operation mode. In this mode auger will automatically reverse several times to free itself. If the auger will not be able to unclog itself, the “Jam” light will be 1. SHPE2000 spreader is equipped with a dual illuminated and the Controller will shut-off. -
Page 6: Repair Parts & Drawings
Quality since 1946 Repair Parts-Chute Assembly Bill of Materials item part no. qty. description item part no. qty. description 3007329 Chute Poly Std. Length 3006753 Wire Harness, Chute 3007526 Chute Poly Ext. Length Washer, Flat 3/8 USS SST — 3006833 Gear Motor 12 VDC Spinner ... - Page 7 Quality since 1946 Repair Parts-Trough Bill of Materials item part no. qty. description 3007357 Trough, Weldment 3007000 Gasket, Felt Bearing 1411000 Bearing, 2-Hole Flanged 1" — Nut, Nylock 3/8-16 x 7/16 SST 3006831 Auger 3007730 Bracket, Vibrator Short 3007416 Vibrator 200 lbs. 12 VDC 3007824 Retainer Gearmotor 3006832...
- Page 8 Quality since 1946 Repair Parts-Hopper Bill of Materials item part no. qty. description item part no. qty. description 3008001 Hopper, Poly 2 cu. yards 3007236 Cover Gearmotor Washer, 1/4 in. Spring Lock SST 3007591 Trough, Auger Assembly — — Screw, Cap 1/4-20 x 3/4 SST —...
- Page 9 Quality since 1946 Repair Parts- Spreader Bill of Materials item part no. qty. description 3008011 Hopper Poly 2 cu. yards Assembly 3008884 Accessories Box, SHPE2000 3007412 Chute Poly Std. SHPE1500 3006839 Decal, SaltDogg, Rear 3006911 Decal, SaltDogg, Side 3008391 Support, Top Screen SST 3008390 Screen, SHPE2000 3008787...
- Page 10 Quality since 1946 Toll-Free Fax 800-841-8003 • buyersproducts.com Bill of Materials item part no. qty. description 3006620 Controller, Buyers Logo 3006724 Wire Harness, Main 3006842 Power Cable, Control Box 1496505 Hold Down Kit, Spreader (4 Straps) Strap, Rubber Tarp 9” 9225 S-Hook, 2.5”...
