Marco FRIIA HC Series Manual

FRIIA HC
A stylish, flexible undercounter
hot/cold water system for
hotels, cafes, or offices.
> 0.8 or 2.1 GAL boiler option
2B FONT CHILLER
1000868 1001860US
5.4"
CHILLER SPECS
PRODUCT INFO SIZE
NAME DIMENSIONS
ORDER CODE
( D X W X H inches )

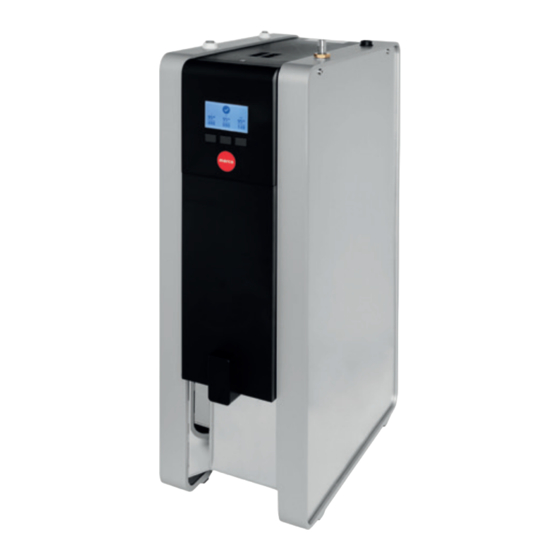

Chiller
17.1 x 10.2 x 17.9
1001860US
A minimum operating pressure of >3 bar or 28 psi downstream of filter is required for optimum output l/min.
BOILER SPECS
PRODUCT INFO SIZE
NAME DIMENSIONS
( D X W X H inches )
ORDER CODE
MIX UC3 – 110v
1001880
15.1 x 8.2 x 17.4
MIX UC3 – 220v
1000880US
MIX UC8 – 220v
15.1 x 8.2 x 24.2
1000887US
FONT SPECS
DIMENSIONS
NAME
INC. DRIP TRAY
ORDER CODE
( D X W X H inches )
2b Font
6.6 x 4.7 x 11.2
1000868
PLEASE NOTE
FRIIA components (font, boiler and chiller) are packed and shipped
in individual boxes.
For more information visit www.marcobeveragesystems.com
MIX UC3
110v – 1001880
220v – 1000880US
PERFORMANCE SPECS
CUPS
GAL/HR
/HR
7.9-11.8 GALS/hr based
175-235
on incoming water temp
(ΔT =
of 59°F and output water
18 °F)
temp of 41-44°F
PERFORMANCE SPECS
IMMEDIATE
GAL/HR
DRAW OFF
3.6 GAL
0.8 GAL
7.3 GAL
2.1 GAL
DIMENSIONS TAP TO
EXCL. DRIP TRAY COUNTER
( D X W X H inches ) ( inches )
5.4 x 1.1 x 11.2
MIX UC8
1000887US
OR
PLUMBING, ELECTRICAL AND TECHNICAL SPECS
POWER PLUMBING COMPRESSOR
@110v REQS
3/8"
Compression
180 W
or 3/8" John
Guest
PLUMBING & ELECTRICAL REQS
CUPS/HR POWER
75 1.4kW @ 110v
156 2.8kW @ 220v
PACKAGING
NAME
Font
9.7
Chiller
MIX UC3 –
220v/110v
MIX UC8 –
220v
COMPLETE BUNDLE
ORDER CODE
FRIIA HC 5002864US
220v
FRIIA HC
1001864US
110v
FRIIA HC Plus
5002866US
SYSTEM SET - UP
CHARGE REFRIGERANT
POWER
1/8hp 45g R290
PLUMBING
NEMA
REQS
5-15p
3/8"
Compression
or 3/8" John
L6-20P
Guest
PACKAGING
DIMENSIONS WEIGHT
( L X W X H inches )
11.4 x 22.4 x 8.4 4.4lbs
19.2 x 11.8 x 20.2 69.4lbs
17.7 x 11.4 x 21.2 25lbs
17.7 x 11.4 x 27.5 30.8lbs
