FRIIA COLD/SPARKLING
>
Sleek and stylish alternative
to bottled or POU water
>
Two font heights available

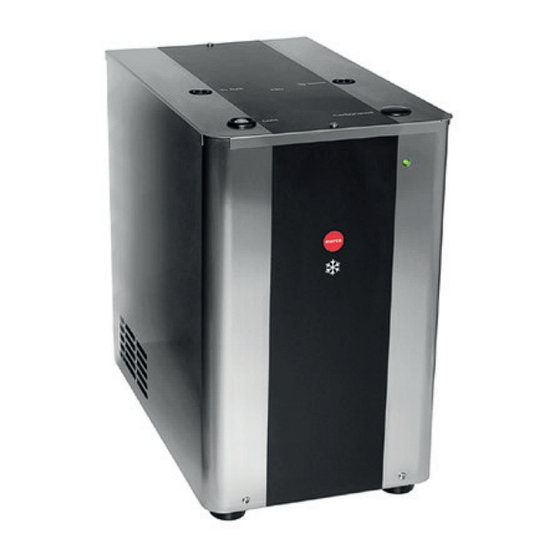

CHILLER/CARBONATOR
PRODUCT INFO SIZE
NAME DIMENSIONS
( D X W X H inches )
ORDER CODE
Chiller/
Carbonator 17.1 x 10.2 x 17.9
1000861US
A minimum operating pressure of 2 bar or 28 psi downstream of filter is required for optimum output l/min.
FRIIA CS
NAME
ORDER CODE
2b Font
1000868
2b Font Tall
1000869
ITEM
Fonts (all)
Chiller/Carbonator
For more information visit www.marcobeveragesystems.com
PERFORMANCE SPECS
CUPS
GAL/HR
/HR
7.9-11.8 GALS/hr based
175-235
on incoming water temp
(ΔT =
of 59°F and output
18 °F)
water temp of 41-44°F
FRIIA CS TALL
DIMENSIONS INC. DRIP TRAY
( D X W X H inches )
6.6 x 4.7 x 11.2
6.6 x 4.7 x 13.6
PACKAGING DIMENSIONS
(L x W x H inches)
11.4 x 22.4 x 8.4
19.2 x 11.8 x 20.2
ORDER CODES
(Complete bundle)
> FRIIA CS
5000862US
>
FRIIA CS Tall 5000865US
SYSTEM SET - UP
PLUMBING, ELECTRICAL AND TECHNICAL SPECS
POWER PLUMBING COMPRESSOR
@110V REQS POWER
3/8"
Compression
180W 1/8hp
or 3/8" John
Guest
FONT DIMS
5.4"
DIMENSIONS EXCL. DRIP TRAY
( D X W X H inches )
5.4 x 1.1 x 11.2
5.4 x 1.1 x 13.6
WEIGHT
PLEASE
NOTE
4.4lbs
69.4lbs
CHARGE REFRIGERANT
45g R290
5.4"
TAP TO COUNTER
( inches )
9.7
11.8
FRIIA components (font
and chiller) are packed and
shipped in individual boxes.
FRIIA Sparkling variants
require food-grade CO
2
(not supplied by Marco).
