FRIIA HANDS - FREE COLD
>
>
CHILLER
PRODUCT INFO
SIZE
NAME
DIMENSIONS
( D X W X H inches )
ORDER CODE

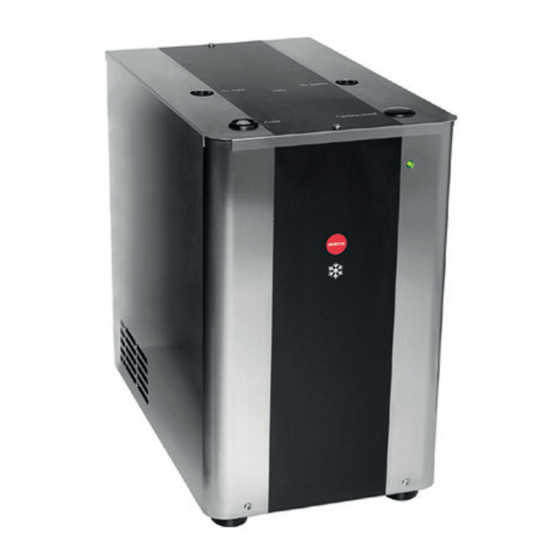

Chiller
17.1 x 10.2 x 17.9
1000860US
A minimum operating pressure of 2 bar or 28 psi downstream of filter is required for optimum output l/min.
FRIIA C HANDS - FREE
NAME
ORDER CODE
FRIIA C Hands-free Font
1000857
ITEM
Fonts (all)
Chiller
For more information visit www.marcobeveragesystems.com
Sleek and stylish touchless
cold-water font
Safe and hygienic:
eliminates touchpoint
PERFORMANCE SPECS
CUPS
GAL/HR
7.9-11.8 GALS/hr based
175-235
on incoming water temp
(ΔT =
of 59°F and output water
18 °F)
temp of 41-44°F
DIMENSIONS INC. DRIP TRAY
( D X W X H inches )
6.6 x 4.7 x 13.5
PACKAGING DIMENSIONS
(L x W x H inches)
11.4 x 22.4 x 8.4
19.2 x 11.8 x 20.2
ORDER CODE
(Complete bundle)
>
FRIIA C Hands-free
SYSTEM SET - UP
PLUMBING, ELECTRICAL AND TECHNICAL SPECS
POWER
PLUMBING
COMPRESSOR
/HR
@110V
REQS
3/8"
Compression
180W
or 3/8" John
Guest
FONT DIMS
DIMENSIONS EXCL. DRIP TRAY
( D X W X H inches )
5.4 x 1.1 x 13.5
WEIGHT
PLEASE
NOTE
4.4lbs
69.4lbs
5000857US
CHARGE REFRIGERANT
POWER
1/8hp
45g
R290
5.4"
TAP TO COUNTER
( inches )
12
FRIIA components (font
and chiller) are packed and
shipped in individual boxes.
