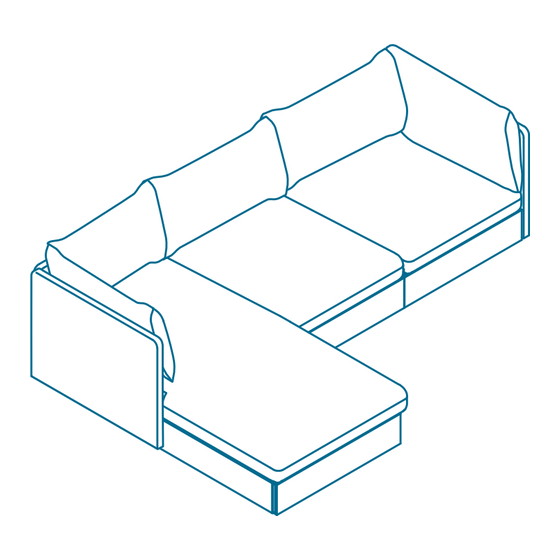

- Page 1 September 2022 Click the button to watch the assembly video CHIASE SOFA GETAWAY SOFA...
-
Page 2: What's In The Box
What’s in the box*: *Not to scale 104-9175 104-9176 104-9237 104-9177 104-9178 104-9123 3 Seater Only labelled "chaise backrest" labelled "chaise"... - Page 3 Assemble the chaise metal frame by connecting the four corners together. Make sure brackets are facing outwards and the metal ledges are facing inwards. Metal ledge NOTE - Keyslot plates in these positions. Bracket Ensure the metal frames are flush with each other before moving to the next step.
- Page 4 Lock the metal frame together by inserting 4x gumnuts into the corners as shown, and tighten completely. Screw on the legs with washers until fully tightened.
- Page 5 Flip the frame over onto the legs and insert the metal beam. Now its time to assembly your sofa frame. Assemble the metal frame by connecting the four corners together. Make sure brackets are facing outwards and metal ledges are facing inwards. Bracket Metal ledge...
- Page 6 Ensure the metal frames are flush with each other before moving to the next step. Lock the metal frame together by inserting 4 x gumnuts into the corners as shown, and tighten completely.
- Page 7 Screw on the legs with washers until fully tightened. Flip the frame over onto the legs and insert the middle beam. NOTE - The middle leg is only required for 3 seater frames only.
- Page 8 Choose to assemble the chaise on either the right or left side. Left side chaise Right side chaise Push the frames together so that the metal connection brackets are aligned and insert the plastic connection fitting. Left side chaise Right side chaise 1.
- Page 9 Identify the armrests and insert them into the outer brackets and push down fully. NOTE - the chaise backrest is labelled in order to not be confused with the armrests. Repeat for the sofa backrests.
- Page 10 Repeat for the chaise backrest. NOTE - the chaise backrest is labelled in order to not be confused with the armrests. Insert the gumnuts through the metal frame into the armrests and backrests, and tighten fully.
- Page 11 Take the side panels for the chaise and insert them into the frame and push all the way down using the keyslot connection. The longer panel will be on the inside of the chaise and the shorter panel will be on the outside. Inside panel Outside panel Place the seat support frames onto the metal ledges on the...
- Page 12 Align and push in the storage boxes uner the front metal beam. NOTE - chaise storage box has a di erent size front panel Place seat cushions, onto the frame.
- Page 13 Place backrest and armrest cushions on to the sofa. Note: Backrest cushions have logo label Enjoy!
- Page 14 Product Information and Care FABRIC Regular Care (Weekly) • Vacuum regularly using low suction • Protect from direct sunlight • After use, you can floof the cushions to bring them back to shape Cleaning • Remove any spills immediately by gently blotting any liquid stands with a clean cloth. Scoop any sauces up before blotting the remaining sauces •...
