Summary of Contents for Koala STUNNER

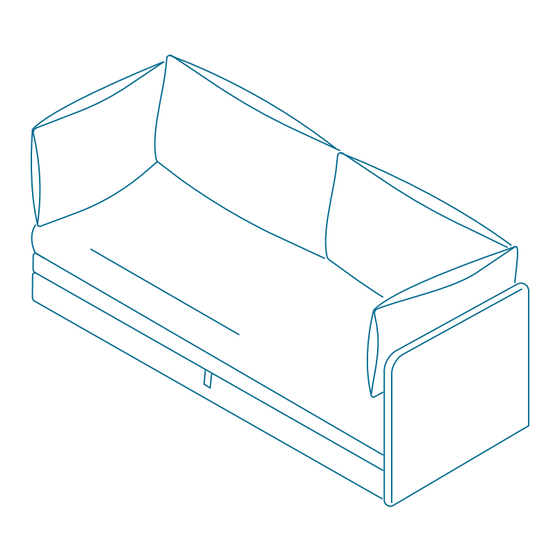

- Page 1 Click the button to watch the assembly video STUNNER SOFA BED...
- Page 2 Click the button What’s in the box*: to watch the assembly video *Not to scale Tri-Head Round-Head Gumnut Gumnut Backrest Armrest Seat Panel Cushions Centre Beam Front Rail Back Cushions Back Rail Front Panel Right Storage Box Seat Cushion Left Storage Box...
- Page 3 Click the button Screw legs onto front rail and back to watch the rail. assembly video Slide centre beam into slot on front and back rail.
- Page 4 Click the button Slide armrests onto front and to watch the back rail. assembly video Screw gumnuts to secure armrests.
- Page 5 Click the button Slide backrests onto back rail. to watch the assembly video Screw gumnuts to secure backrests.
- Page 6 Click the button Place seat panels onto frame. to watch the assembly video Attach front panel to left and right storage box with gumnuts. Loosley screw in all gumnuts before tightening...
- Page 7 Click the button Connect left and right storage box with to watch the adjustable latch. assembly video If loose, twist latch to tighten before connecting Hook storage box stopper underneath front rail.
- Page 8 Click the button Place seat cushion onto frame. to watch the assembly video Place arm and back cushions onto sofa bed.
- Page 9 Click the button Convert to sofa bed. to watch the assembly video Convert to bed sofa.
- Page 10 Click the button Enjoy! to watch the assembly video...
- Page 11 Product Information and Care FABRIC Regular Care (Weekly) • Vacuum regularly using low suction. • Protect from direct sunlight. • After use, you can floof the cushions to bring them back to shape. Spot Cleaning • Remove any spills immediately by gently blotting any liquid with a clean cloth. •...
- Page 12 Click the button to watch the assembly video don’t forget to recycle.
