What’s in the box*: *Not to scale Chaise Chaise Front Rail Cover Left Armrest Backrest Back Rail Centre Beam 104-9376 Right Armrest Back Panel Backrest Rounded Backrest Front Rail Cover Cushion Covers Seat Panel Cushions Non-Rounded Chaise Chaise Cushion Seat Panel Cushion Cover Backrest...
Page 3
Lay the back rail down with the Click the button to watch the corner connections facing up. assembly video Connect the back rail to the armrests using the corner connections. Position of pins on armrests should be against the back panel...
Page 4
Connect the front rail to the armrests Click the button to watch the using the corner connections. assembly video Firmly screw in legs into corner connection.
Page 5
Firmly screw leg into the centre beam. Click the button to watch the assembly video Ensure centre beam is in correct orientation before screwing leg in Secure the centre beam with two round-head gumnuts.
Page 6
Hold the front panel and carefully Click the button to watch the lower the sofa onto its legs. assembly video Attach two hooks on the inside using tri-head gumnuts. For a left chaise configuration, mount on the left of the centre beam. For a right chaise configuration, mount on the right of the centre beam.
Page 7
Place the seat panels onto the frame. Click the button to watch the assembly video Ensure the rounded seat panels are in the outer positions Guide the backrest hooks into the upper armrest pins.
Page 8
Align the holes and screw in Click the button to watch the the tri-head gumnuts. assembly video Guide the backrest panel hooks into the lower armrest pins then rotate and press against the backrest to secure. Ensure metal plate on back rail is not visable when assembled...
Page 9
Click the button Place armrest cover over armrest and to watch the secure with velcro at the back, bottom assembly video and inside. Repeat for second armrest. Place front rail cover over one side of the front rail and secure with velcro along the length of the top and bottom, then tuck the cover on the other side.
Page 10
Click the button Attach front side velcro of the backrest to watch the cover to the velcro on the armrest cover, assembly video then attach the front bottom velcro of the backrest cover to the base of the backrest. Backrest Cover Front Back...
Page 11
Firmly screw in legs into chaise then place Click the button to watch the chaise cover onto frame and secure assembly video velcro on the top and bottom. Move sofa into its final location then hook the ottoman on.
Page 12
Click the button Place the seat cushions in the seat cushion to watch the covers, then zip the cover closed. assembly video Ensure zips are aligned to correctly orientate the seat cushion covers and the seat cushions Place the backrest cushions in the backrest cushion covers, then zip the cover closed.
Page 13
Click the button Place the seat cushions onto the sofa. to watch the assembly video Ensure seat cushion are the correct orientation by checking the labels. Place the backrest cushions onto the sofa. Ensure the backrest cushions are in the correct orientation by checking the labels.
Page 14
Click the button Enjoy! to watch the assembly video...
Product Information and Care FABRIC Lining Fabric • Vacuum regularly using low suction. • Protect from direct sunlight. Removable Covers • For correct care of the removable covers refer to the care label inside covers for additional cleaning instructions. Spot Cleaning •...
Page 16
Click the button Click the button to watch the to watch the assembly video assembly video don’t forget to recycle.
Need help?

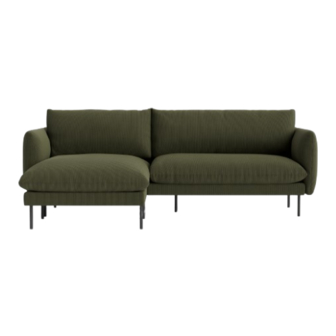

Do you have a question about the SUFFOLK SOFA 3.5 SEATER + CHAISE and is the answer not in the manual?
