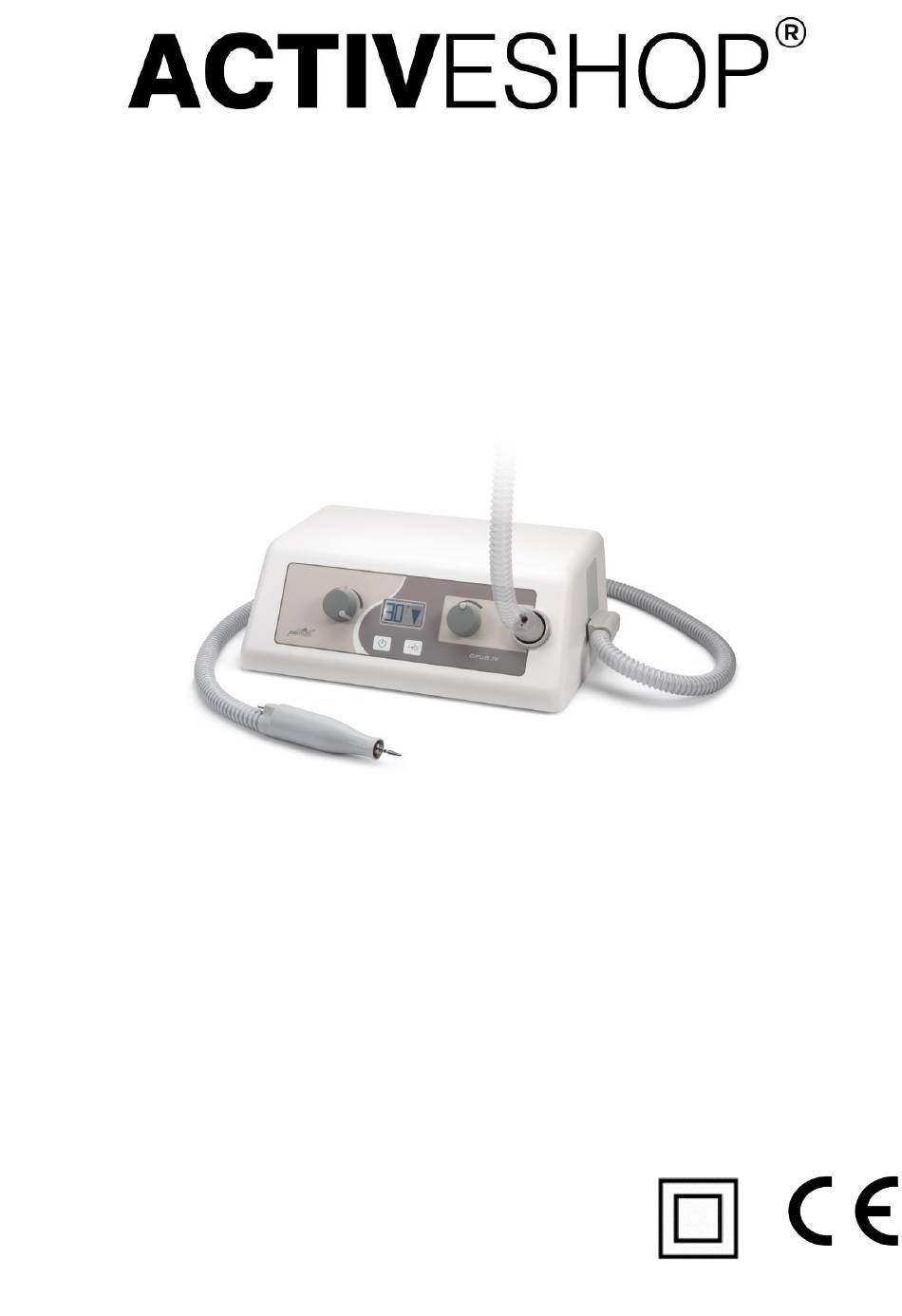

INSTRUCTION MANUAL

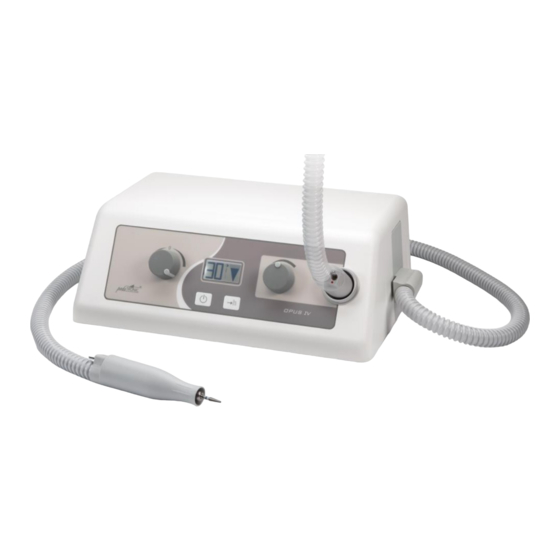

PODO LINE milling machine with absorber
Model 0152.4904
READ THE ENTIRE MANUAL BEFORE USING THE DEVICE!
THIS IS TO PROTECT PEOPLE AND TO AVOID DAMAGE TO THE MACHINE!
Importer:
ACTIVESHOP Ltd.
8b Graniczna St., building
DC2A 54-610 Wroclaw,
Poland
www.activeshop.com.pl
Rev. A/05/2024
Advertisement
Table of Contents
Related Manuals for activeshop SYIS PODO LINE
Summary of Contents for activeshop SYIS PODO LINE
- Page 1 PODO LINE milling machine with absorber Model 0152.4904 READ THE ENTIRE MANUAL BEFORE USING THE DEVICE! THIS IS TO PROTECT PEOPLE AND TO AVOID DAMAGE TO THE MACHINE! Importer: ACTIVESHOP Ltd. 8b Graniczna St., building DC2A 54-610 Wroclaw, Poland www.activeshop.com.pl...
- Page 2 PANEL AND DEVICE OVERVIEW 1 MAIN SWITCH (ON / OFF) 7 REMOVABLE FILTER CHAMBER 2 KEY TO CONTROL THE HOUR COVER/OFF COVER. CONTAINING METER HEAD CONTACTS 3 SPEED/DIRECTION KNOB 8 SNAKE MARKETING 9 HEAD WITH MICROSWITCH 4 DISPLAY 5 SUCTION POWER ADJUSTMENT BACK OF THE DEVICE: 6 SUCTION HOSE 10 CONNECTION SOCKET...
-
Page 3: Table Of Contents
VIII. PACKAGE CONTENTS BEFORE USE. Thank you for choosing AND purchasing SYIS PODO LINE milling machine. This device is designed and manufactured in accordance with the Medical Devices Directive 93/42 / EEC et seq. to guarantee quality and safety. The device is intended for use only by a qualified podiatrist and manicurist for podiatric and manicure treatments. -
Page 4: Ii. Features
Insert the plug into a suitable electrical outlet. Turn on the device by pressing ①. The SYIS PODO LINE logo will be shown on the display for a few seconds ④ and then the remaining operating hours will be shown on the display for about 3 seconds: The display will then indicate ④... -
Page 5: Suction Power Settings
SUCTION POWER SETTINGS Turn the knob (5) to the required amount of s u c t i o n . The life of the suction motor can be extended by setting the dial to the middle (economy) position. By turning the knob (5) to the "0" position, the suction motor will be turned off. Performance suction indicated... -
Page 6: Hour Meter
This is not hygienic and will cause the filter bag to leak. Always keep the inside of the filter chamber clean. This will help prevent dirt from getting into the aspiration motor. The SYIS PODO LINE milling machine is equipped with a counter of operating hours as help AND guidelines for checking and replacing the filter. - Page 7 After the beep and the message "Filter replacement", you need to adjust the speed control knob ③ to return to the standard display. If you restart the device with the main button ① the replace filter indicator " will appear on the display ④ you will hear a short audible interval to remind you to replace the filter.
- Page 8 CLEANING HEAD INSTRUCTIONS HANDLE CLEANING USING THE MILLING MACHINE 4. F HEAD CLEANING HANDLE CLEANING INSTRUCTIONS...
-
Page 9: Milling Cutter Replacement
MILLING CUTTER REPLACEMENT Always make sure that the machine is put into standby mode by micro-switching on the head ⑦ after changing the cutter. The handle is equipped with a "Quick-Grip" centrifugal mechanism. Twisting is not required to open or lock the head. Insert the cutter all the way into the handle. To remove the cutter simply pull it out by hand. -
Page 10: Specifications
*Disconnect the plug from the power supply before cleaning the unit or replacing the fuse! *After turning off the device, make sure the device is in stand-by mode-before. by pressing the on/off switch ON *The should be cleaned with a soft, damp cloth. Be careful not to let water get device into the housing of the device. - Page 11 At the end of their useful life, as well as old appliances contain full-value recyclable components, so they should be handed over for recycling. Therefore, they should be handed over to appropriate collection points, as well as they can also be handed over to ACTIVESHOP Ltd. STORAGE AND TRANSPORT The device should be transported at a temperature of (-) 20 °C to (+) 50 °C only in its original...
- Page 12 Relative temperature of no more than 75%. Operating temperature from (+) 10 °C to (+) 40 °C. During the storage and transportation processes, the device must not be thrown or dropped, exposed to mechanical shock or weathering.
