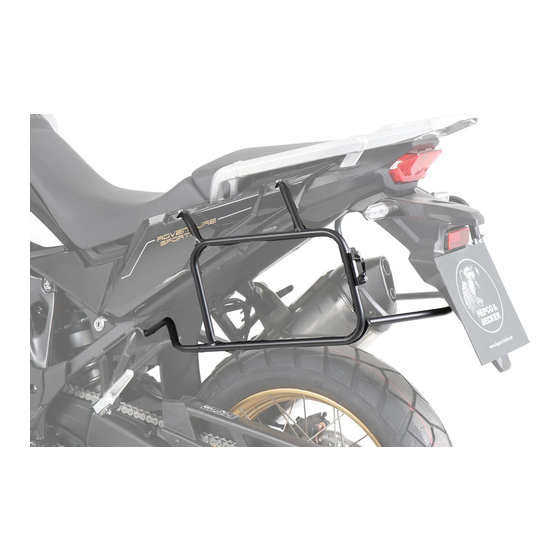

Side carrier firmly bolted, honda crf1100l africa twin 2024-, black

Advertisement

Quick Links

KOFFERTRÄGER / SIDE CARRIER
festverschraubt /firmly bolted
HONDA CRF1100L Africa Twin /
Adventure Sports
(2019-2023) /(2020-2023)
Art.Nr./Item-no.:
6539522 00 01
schwarz/black
HONDA CRF1100L Africa Twin
Adventure Sports
(2024-)
Art.Nr./Item-no.:
6539544 00 01
schwarz/black
Inhalt / Content
Baubreite des Kofferträgers 56 cm
Width of the side carrier 56 cm
HONDA CRF1100L Africa Twin
(2024-)
Art.Nr./Item-no.:
6539549 00 01
Hinweis: Nur in Verbindung mit Originalbrücke passend.
Note: Only suitable with original rack.
1x
700010844
1x
700010845
1x
700010846
1x
700010847
4x Zylinderschraube M8x35
4x Allen screw M8x35
2x Zylinderschraube M8x30
2x Allen screw M8x30
6x Zylinderschraube M6x16
6x Allen screw M6x16
4x Aludistanz Ø20xØ9x18 schwarz
4x Alu spacer Ø20xØ9x18 black
schwarz/black
Kofferträger links - Carrier left
Kofferträger rechts - Carrier right
Verbindungsbügel - Bracing bow
Schraubensatz - Screw kit:
4x Sechskantschraube M6x16
4x Hexagon screw M6x16
4x Selbstsichernde Mutter M6
4x Self lock nut M6
10x U-Scheibe Ø6,4
10x Washer Ø6,4
6x U-Scheibe Ø8,4
6x Washer Ø8,4
HONDA CRF 1100L Africa Twin
(2019-2023) mit Originalbrücke /
with original rack
6539522 00 01 / 6539544 00 01 / 6539549 00 01
1
