Summary of Contents for hepco & becker 810.660
Page 1

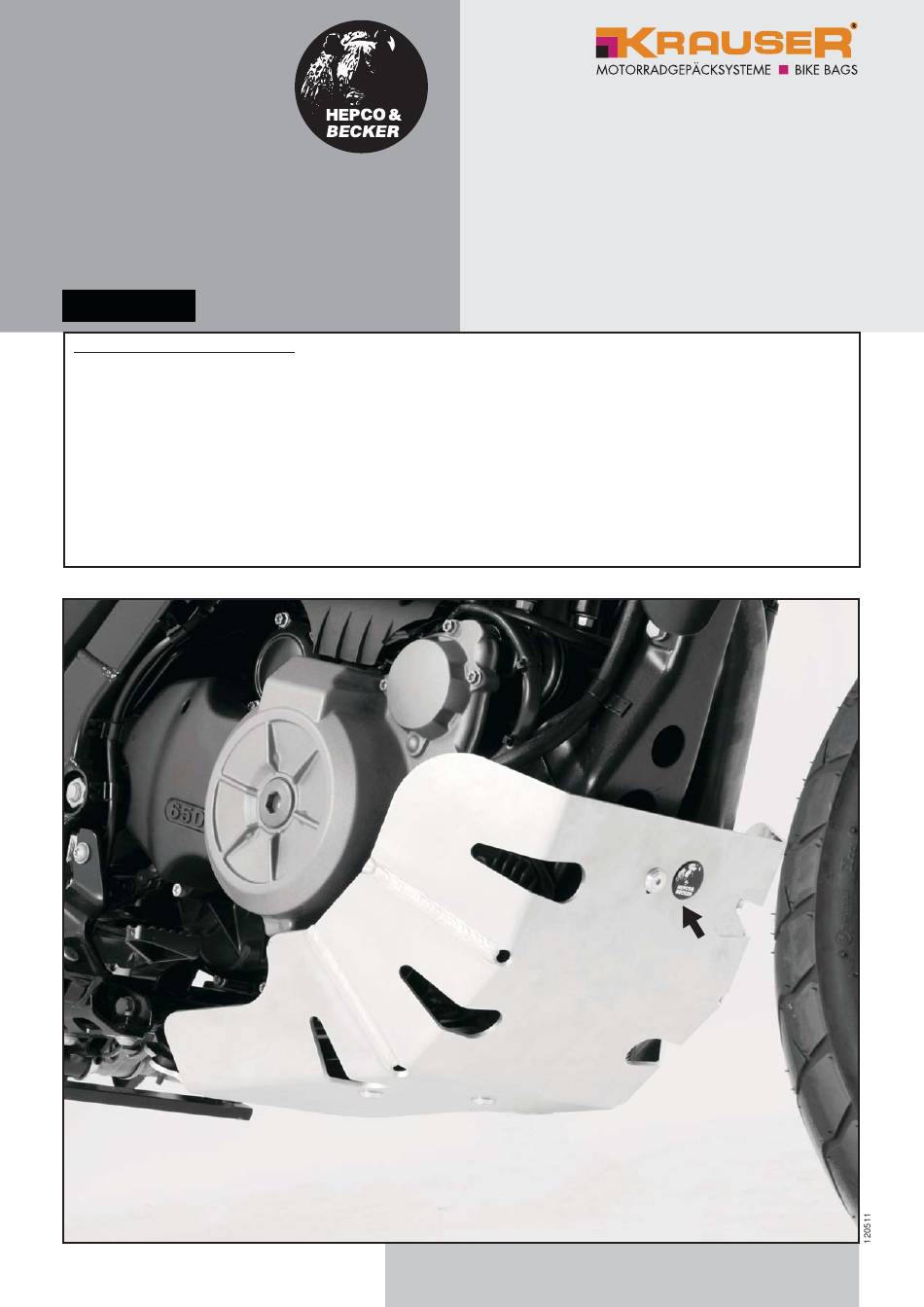

Motorschutzplatte Motorschutzplatte BMW G 650 GS BMW G 650 GS ab Bj. 2011 ab Bj. 2011 Artikel-Nr.: 3005.027.301 Artikel-Nr.: 810.660 Montage Der Bausatz umfaßt die folgenden Teile: Stück Bestellnr. Bezeichnung 700007501 Motorschutzplatte 151.270 Senkschrauben M6 x 50 151.302 Senkscheibe Ø6,4 150.819...
Motorschutzplatte Motorschutzplatte BMW G 650 GS BMW G 650 GS ab Bj. 2011 ab Bj. 2011 Artikel-Nr.: 3005.027.301 Artikel-Nr.: 810.660 Montage Vorbereitung: Den Kunststoffschutz vorne rechts demontieren. Dazu die 2 Befestigungsschrauben lösen und Kunststoffschutz abziehen. Kunststoffschutz und Befestigungsschrauben entfallen. Die beiden Gummipuffer werden in die dafür vorgesehenen Bohrungen der Alu-Motorschutzplatte gesteckt.
Page 3
BMW G 650 GS BMW G 650 GS ab Bj. 2011 ab Bj. 2011 Artikel-Nr.: 3005.027.301 Artikel-Nr.: 810.660 Montage Montage des Motorschutzes vorne: Distanzbuchse Ø25 x Ø9 x 25 mm am vorderen Anschraubpunkt zwischen Motorschutzplatte und Rahmen stecken. Motorschutzplatte mit Senkschraube M6 x 50 und Senkscheibe M6 am Rahmen verschrauben.
Engine protection BMW G 650 GS BMW G 650 GS from date of manufacture 2011 from date of manufacture 2011 Item - No.: 810.660 Item - No.: 3005.027.301 Assembling instructions The kit includes the following parts: Quant item no. description...
Page 5
Engine protection BMW G 650 GS BMW G 650 GS from date of manufacture 2011 from date of manufacture 2011 Item - No.: 810.660 Item - No.: 3005.027.301 Assembling instructions Preparing: Dismantle original engine protection, it is obsolete. Stick the two rubber into the free borings in the protection plate.
Page 6
BMW G 650 GS BMW G 650 GS from date of manufacture 2011 from date of manufacture 2011 Item - No.: 810.660 Item - No.: 3005.027.301 Assembling instructions Fastening of the engine protection front: Use countersunk head screw M6x50 and countersunk washer Ø6,4.
