KOFFERTRÄGER / SIDE CARRIER
festverschraubt /firmly bolted
MOTO GUZZI Stelvio
(2024-)
Art.Nr./Item-no.:
653560 00 01
schwarz/black
2
5
Baubreite des Kofferträgers 48 cm
Width of the side carrier 48 cm
1
3
6
Kombinierbar mit/Can be combined with
655560 Alurack 662560 Easyrack
7
653560 00 01
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hepco & becker 653560 00 01
Summary of Contents for hepco & becker 653560 00 01

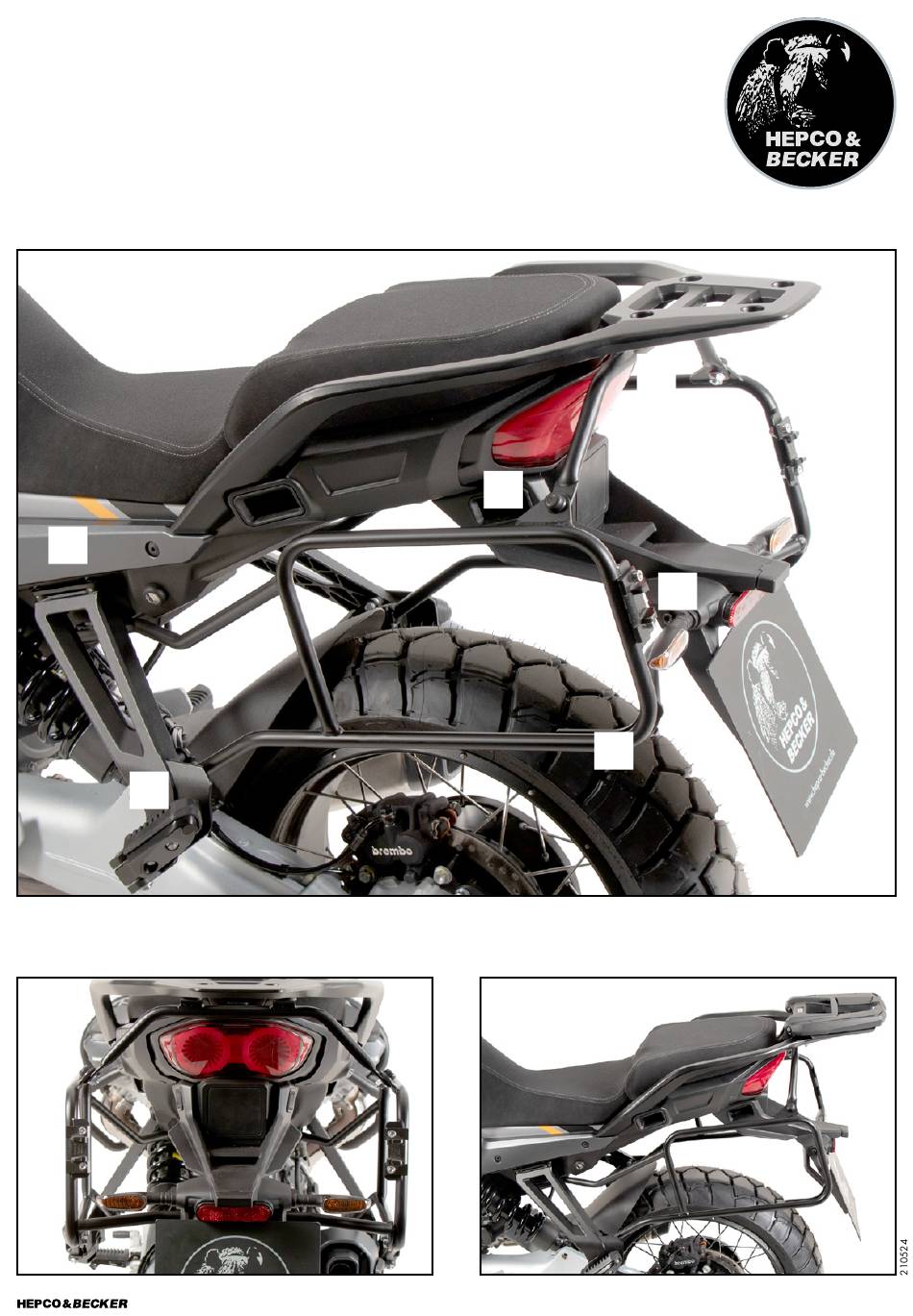

- Page 1 KOFFERTRÄGER / SIDE CARRIER festverschraubt /firmly bolted MOTO GUZZI Stelvio (2024-) Art.Nr./Item-no.: 653560 00 01 schwarz/black Baubreite des Kofferträgers 48 cm Kombinierbar mit/Can be combined with Width of the side carrier 48 cm 655560 Alurack 662560 Easyrack 653560 00 01...
- Page 2 Remove the screws of the passenger footrest on the right and left, the body panel is omitted in each case, the screws are reused. On the right, remove the screw of the muffler fastening on the pillion footrest, this is no longer required. 653560 00 01...
- Page 3 Montageanleitung / Installation Instruction Verbindungsbügel oben: Connecting bracket top: M8x35 Ø8,4 Ø18xØ9x7 Bei Montage mit Alu- oder Easyrack: For mounting with Alu- or Easyrack: M8x45 Träger vorne oben rechts & links: Carriers front top right & left: Original 653560 00 01...
- Page 4 Montageanleitung / Installation Instruction Träger hinten rechts & links: Carriers rear right & left: M8x20 Ø8,4 Träger vorne unten rechts: Carrier front bottom right: Fahrtrichtung/driving direction M8x30 Ø8,4 M6x20 Ø6,4 Ø6,4x3 653560 00 01...
- Page 5 Montageanleitung / Installation Instruction Träger vorne unten links: Fahrtrichtung/driving direction Carrier front bottom left: M8x30 Ø8,4 Ø18xØ9x10 M6x20 Ø6,4 Verbindungsbügel unten rechts & links: Bracing bow bottom right & left: M6x16 Ø6,4 653560 00 01...
- Page 6 Weiteres Zubehör für dieses Modell auf www.hepco-becker.de / More accessories for this model see www.hepco-becker.de HEPCO&BECKER GmbH | An der Steinmauer 6 | 66955 Pirmasens | Germany | Tel. +49 6331 1453100 | Fax: +49 6331 1453 120 | Mail: vertrieb@hepco-becker.de 653560 00 01...
