Summary of Contents for Eurovema Volaris HP
-

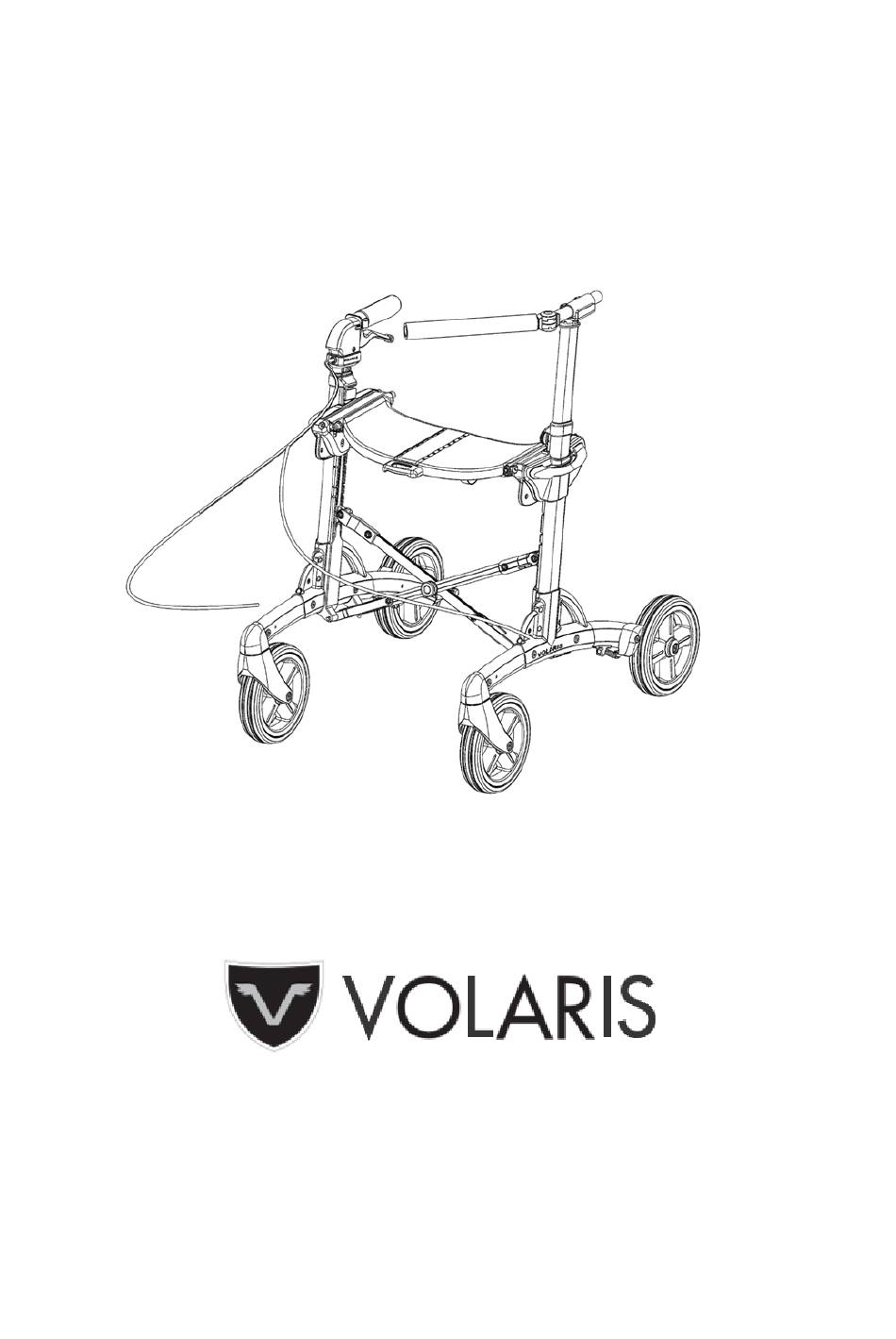

Page 1: User Guide
User Guide Important, read before use VOLARIS – HP Rev.2024–02–22... -
Page 2: Table Of Contents
Contents User Guide ....................................1 Congratulations on your new rollator! ............................3 Safety instructions ..................................4 Marking ...................................... 4 Label ......................................4 Adjusting your rollator ................................5 Seat height adjustment ................................5 Adjust handle height ................................5 Adjusting handle height, HP handle ............................5 Tips for use .................................... -
Page 3: Congratulations On Your New Rollator
(Hemiplagia). The product can be used both indoors and outdoors. Its seat can be used for rest whilst the rollator is in a stationary position. Volaris HP is designed to be used by adults. Alterations or customisations beyond those described in this User Guide and ser- vice/assembly instructions are not permitted. -
Page 4: Safety Instructions
Safety instructions Warning! Be careful when using the rollator to avoid any personal injury. Important! Read the instructions to avoid damaging the product. Symbol indicating that the parking brake is engaged. Symbol indicating that the parking brake is released. Warning! The rollator must be in park mode (the parking brake applied) when you sit or get up. -
Page 5: Adjusting Your Rollator
Adjusting your rollator Seat height adjustment Adjust one side at a time. Pull out the knob under the seat. At the same time, raise or lower the seat to the position required. Release the knob, ensuring that it locates properly to secure the seat in place. -
Page 6: Tips For Use
Tips for use Comfort Frame Volaris rollators are built with a Comfort Frame™, Comfort chassis, which means that it passes smoothly over uneven surfaces. When you need to pass over larger obstacles or mount a pavement edge, use the tilt peddles located by the rear wheels for extra assistance. -
Page 7: Unfolding And Folding The Rollator
Unfolding and folding the rollator Unfolding the rollator 1. Hold one of the push handles and tilt the rollator slightly to that side so the wheels on the opposite side just lift off the ground. 2. Unfold the rollator using the grey handle on the opposite side. -
Page 8: Braking
Braking Service brake The service brake is applied by pulling up the brake lever. Engage the parking brake The parking brake is engaged by pressing the brake lever in. This moves the lock wedge forwards and keeps the brake lever in the engaged position. Important! The brake must be applied when you are sitting or getting... -
Page 9: Articulation Brake
Articulation brake To adjust the articulation brake, turn the wheel clockwise to increase braking effect and anticlockwise to reduce braking effect. Maintenance Cleaning the rollator Look after your rollator, and your rollator will look after you. Remove dirt using a damp cloth and a mild detergent. -
Page 10: Accessories
Accessories Articulation brake A brake with adjustable, continuous friction. Profile clips Profile clips are used to prevent anything getting caught in the openings in the profile. These are included with the product and should sit in all visible notches, both above and below the seat. Oxygen tank holder Robust steel basket that hooks onto the seat and accompanying bracket. -
Page 11: Accessories
Accessories Drip stand Drip stand with two hooks to hold IV bags. The stand is fitted using two brackets that are screwed to the side of the rollator. Remember, IV bags may affect the stability of the rollator. Maximum total IV bag weight is 2.2 kg. Walking stick holder Bifurcated holder that is screwed to the side of the rollator, holds a walking stick, crutch, or umbrella... -
Page 12: Accessories
Accessories Mesh basket Sturdy wire mesh basket with carrying handles. Hooks easily on to the front edge of the rollator. Maximum load 5 kg. Tray Tray which fits over the rollator seat. Soft seat Three-section foam cushion that makes the seat softer and warmer. -
Page 13: Accessories
Accessories Lights These are fastened to the upright using Velcro. Red to the rear, white to the front. Battery-powered unit that is easy to turn on and change battery. -
Page 14: Technical Data
Technical data 160kg 160kg 9,6kg 66cm 74cm 76-102cm 48,5-56cm 48cm 200*42mm 30cm HP- 93-118cm... -
Page 15: Notes
Notes ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...
