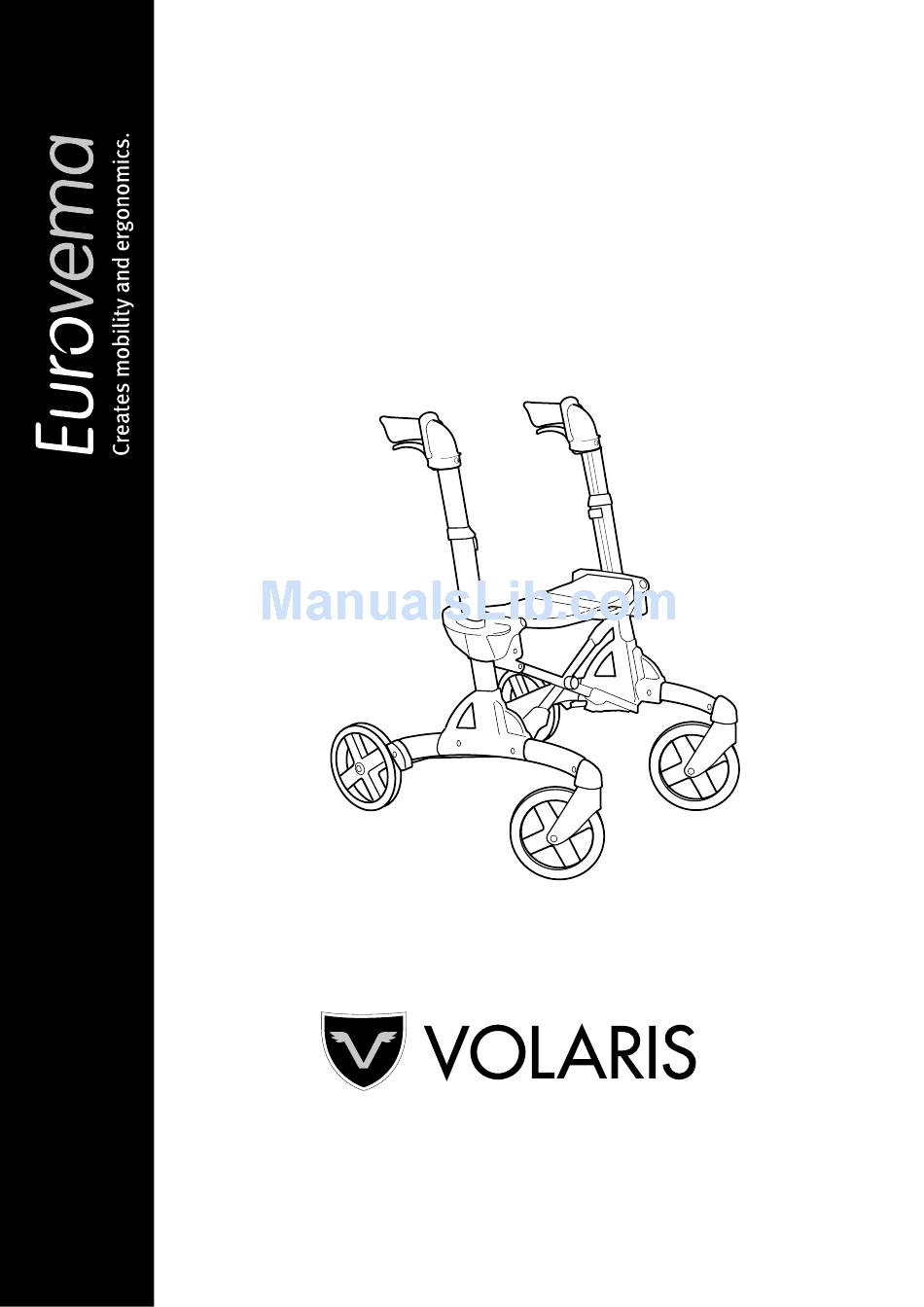

- Page 1 User Manual Important, read before use! SMART...
-
Page 2: Guarantee
Volaris Smart The Volaris Smart will make your life easier in many ways. We ask you to read carefully through this user infor- mation in order to familiarise yourself with your new rollator. Correct use and care will give you more benefit, increased safety and a longer service life for your Smart rollator. -
Page 3: Table Of Contents
If you have any questions, or if you need help with your product, please contact your local supplier first (Technical Aid Centre). To contact the manufacturer, see the info below: Eurovema Mobility AB, Baldersvägen 38, 332 35 GISLAVED, SWEDEN Tel: +46 (0) 371 390 100 E-mail: info@eurovema.se, Website: www.eurovema.se... -
Page 4: Seat Height Adjustment
Adjusting your rollator Seat height adjustment Adjust one side at a time. Pull out the knob under the seat. At the same time, raise or lower the seat to the position required. Release the knob, ensuring that it locates properly to secure the seat in place. Do the same on the other side. - Page 5 Tips for use Comfort Frame The Smart is built with a Comfort Frame™, which means that it passes smoothly over une- ven surfaces. When you need to pass over a larger obstruction or mount a pavement edge, you can get help from the tilting peddle by the rear wheels.
-
Page 6: Fixed Transport Strap
Unfolding and folding your Smart Unfolding your Smart 1. Hold one of the push handles and tilt the rollator slightly to that side so the wheels on the opposite side just lift off the ground. 2. Unfold the rollator using the grey lifting handle on the opposite side. -
Page 7: Braking
Safe braking Service brake The brake is applied by pulling up the lever under the handle. Parking brake The parking brake is applied by pushing the parking brake lever forward until it is horizontal. The parking brake must be released when the brake or the handle height are being adjusted. -
Page 8: Restriction Brake Adjustment
Safe braking Adjust the brake for the correct functionality The braking effect can be set using the cable adjuster under the frame. 1. Release the parking brake by moving the lever upright. 2. Release/loosen the nut using a 8mm spanner, and turn the threaded shaft. -
Page 9: Maintenance
Maintenance Cleaning of rollators and acces- sories It is worth your while to look after your rollator be- cause it will last longer. Wipe dirt off with a wet cloth and a mild cleaning liquid. Ensure that the gaps between the wheels and the brake shoes are free of dirt;... -
Page 10: Cable Lubrication
Maintenance Cable lubrication After washing the rollator, lubricate the cables under the frame by applying a few drops of oil to the cable. Troubleshooting If the rollator pulls to one side when you are walking, check that the wheels rotate equally easily and that the wheel forks turn easily. -
Page 11: Safety Accessories
Safety accessories Restriction brake A brake with adjustable, continuous friction. Lights These are fastened to the upright using Velcro. Red to the rear, white to the front. Battery powered. Easy to remove and to replace batteries. Back support/Adjustable back support Stable support for your back;... -
Page 12: Oxygen Bottle Holder
Safety accessories Single-handed brake Locks both of the rear wheels and is applied by either the service brake or the parking brake. Oxygen bottle holder Strong steel basket that hooks onto the seat and an enclosed bracket. Easily removed. Drip stand Remember, drip bags may affect the stability of the rollator. -
Page 13: Comfort Accessories
Comfort accessories Walking stick holder Two pieces that are firmly screwed in place where indicated. Holds a walking stick, crutch or umbrella firmly in place. Bottle holder Holder in plastic covered wire for a bottle/can. Holds a 0.5 litre bottle or 33 cl can. Hangs on the handle. Maximum load: 0.6 kg. -
Page 14: Comfort Accessories
Comfort accessories Transport strap Fasten the strap around the rollator's handle, the rollator will then stay in the folded position. Easily attached. Cloth bag A soft, woven nylon bag, which can be left in place when the rollator is folded. Easily removed. Washa- ble. -
Page 15: Tray
Comfort accessories Tray Tray, which fits over the seat. Fabric basket Basket with plastic ends and nylon mesh. The basket can be fitted to all Volaris models. The fabric basket can also be left in place when the rollator is folded. Easily removed. Maximum load: 5 Soft seat Three sections that make the seat softer and warmer. -
Page 16: Accessories For Your Needs, Safety And Comfort
Oxygen bottle holder Walking stick holder Bottle holder Umbrella/parasol Transport strap Cloth bag Mesh basket Tray Fabric basket Soft seat Single-handed brake Drip stand Baldersvägen 38 | SE-332 35 Gislaved | Sverige Tel. +46 (0)371 390 100 | www.eurovema.se | info@eurovema.se...
