  • Page 1 USER MANUAL Model FP9680 FALCON TO SUIT 21-03-24...

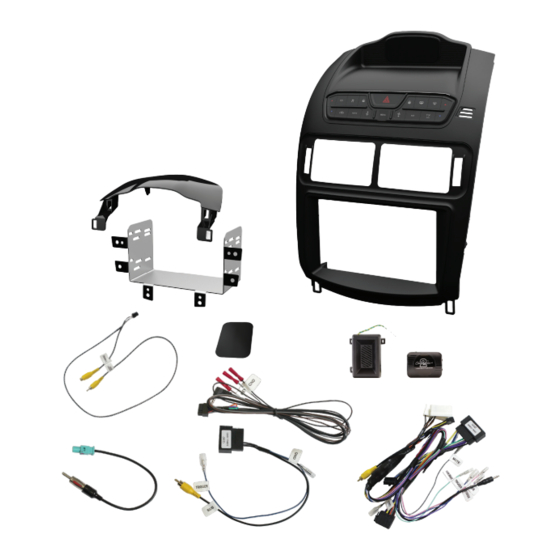

  • Page 2 Inclusions 1x Double DIN facia kit 1x Top dash panel 1x Main harness 1x Video harness 1x Built-in HVAC and steering wheel control unit 1x Universal SWC patch lead 1x Antenna adapter 1x Mounting bracket 1x MagMate metal plate 1x Factory park tone retention module 1x Factory subwoofer retention lead...
  • Page 3 Infodapter Controls Steering Wheel Controls...
  • Page 4: Button Functions

    Button Functions 1. Temperature UP 9. Temperature UP 17. Mode (Passenger side) (Drivers side)10. 18. Temperature DOWN 2. Interior light ON/OFF (Drivers side) Temperature DOWN 3. Dynamic stability (Passenger side) 19. Temperature Sensor control ON/OFF 11. Air circulation 20. Seek 4.
  • Page 5: Interface Functions

    Interface Functions Front Demister Fresh air is blown through the heater core and then ducted to and distributed over the interior surface of the vehicles windshield BUTTON SCREEN DISPLAY Rear Demister The demister clears condensation from the rear window BUTTON SCREEN DISPLAY Push &...
  • Page 6 Interface Functions Air Circulation Mode Changes between fresh air drawn in directly from the outside of the vehicle, or recirculation where the air is drawn from inside the cabin BUTTON SCREEN DISPLAY...
  • Page 7 Interface Functions Mode Changes the vent positions for heating and cooling...
  • Page 8 Interface Functions Heating & Cooling Temperature To increase temperature press up, to decrease temperature press down. Left hand side buttons adjust passenger side temperature settings. Right hand side buttons adjust drivers side temperature settings. Push & hold the Auto button to reset back to single zone.
  • Page 9 Interface Functions Air conditioning On or Off Press to turn the air conditioning On/Off or vice versa. This can be changed and reversed in the setup menu. Note: Holding down the A/C button completely turns the A/C heating and cooling system Off. BUTTON SCREEN DISPLAY Fan Speed Adjustment...
  • Page 10 Interface Functions Auto Function Press to automatically set the climate control to maintain a specified temperature. Auto Function (Semi Auto) Adjusting the fan speed will also switch from auto to semi-auto climate control.
  • Page 11 Interface Functions Door Unlock/Lock Press to lock and unlock all doors in the vehicle Dynamic Stability Control Press to turn Dynamic Stability Control (vehicles traction control) on or off. Interior Light Press to turn the vehicles factory interior light on or off Hazard Flasher Warning Light Press to turn the vehicles hazard emergency light on or off...
  • Page 12: Menu Functions

    Menu Functions Configuration Menu Press and hold the menu button for a few seconds to display the Configuration Menu. Press the Fan UP/DOWN buttons to navigate up and down between sub menus. Press menu button to enter into sub menus and again to change settings. Menu Functions (Infodapter Settings) Select Infodapter Settings/Preferences to access sub menus.
  • Page 13 Menu Functions (Infodapter Settings Continued) Climate Screen Timeout Adjusts the time it takes the Infodapter screen to return to the Headunit Screen, by pressing the fan Up & Down buttons, select between 3 - 30 seconds A/C Panel Brightness (Day mode) Adjusts the brightness of the LED’s on the Infodapter, by pressing the fan Up &...
  • Page 14 Menu Functions (Infodapter Settings) Installer Menu When in the Configuration menu, press and hold the fan UP & DOWN buttons at the same time to access the installer menu Air Conditioner Type Choose between a single or dual climate system. Note: Dual climate systems can run as a single zone system...
  • Page 15 Menu Functions (Infodapter Settings) Screen Size/ Position Allows the user to change the Infodapter screen to fit to your headunits display Camera Connected Turns the reverse camera function On or Off. Note: must be set to “Yes” Diagnostics Information on the system to check the vehicle is communicating with the Infodapter...
