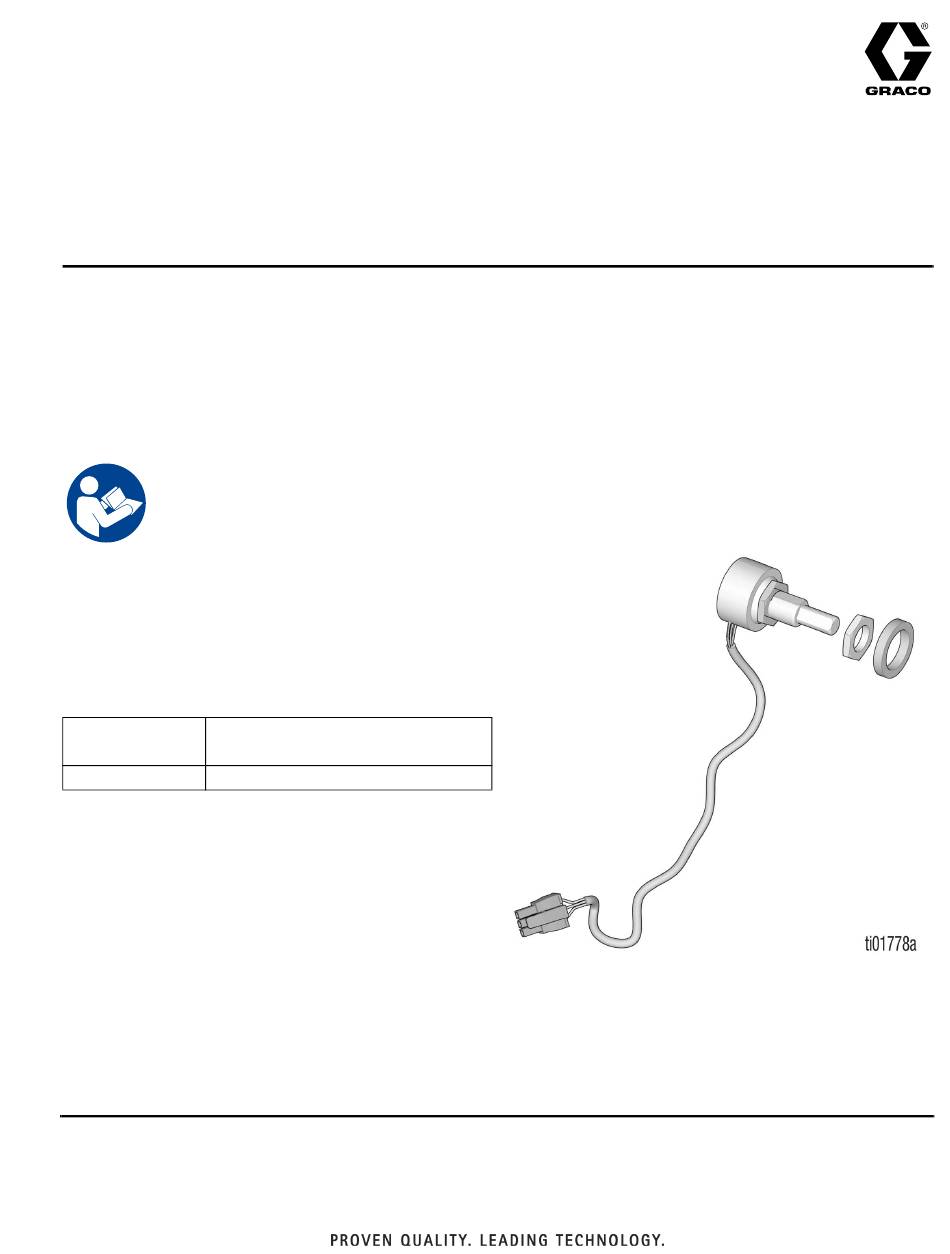

Installation, Kit
Potentiometer Replacement
Kit
For replacement of the potentiometer in XT sprayers. For professional use only. Not
approved for use in explosive atmospheres or hazardous (classified) locations.
Models: 20B425
Important Safety Instructions
Read all warnings and instructions in this
manual and the sprayer manual before
using the equipment. Be familiar with the
proper control and usage of the
equipment. Save these instructions.
Related Manuals
Find English manuals and any available translations at
www.graco.com.
English Manual
Description
Number
3A9095
Sprayer Operation Manual
3B0148A
EN
